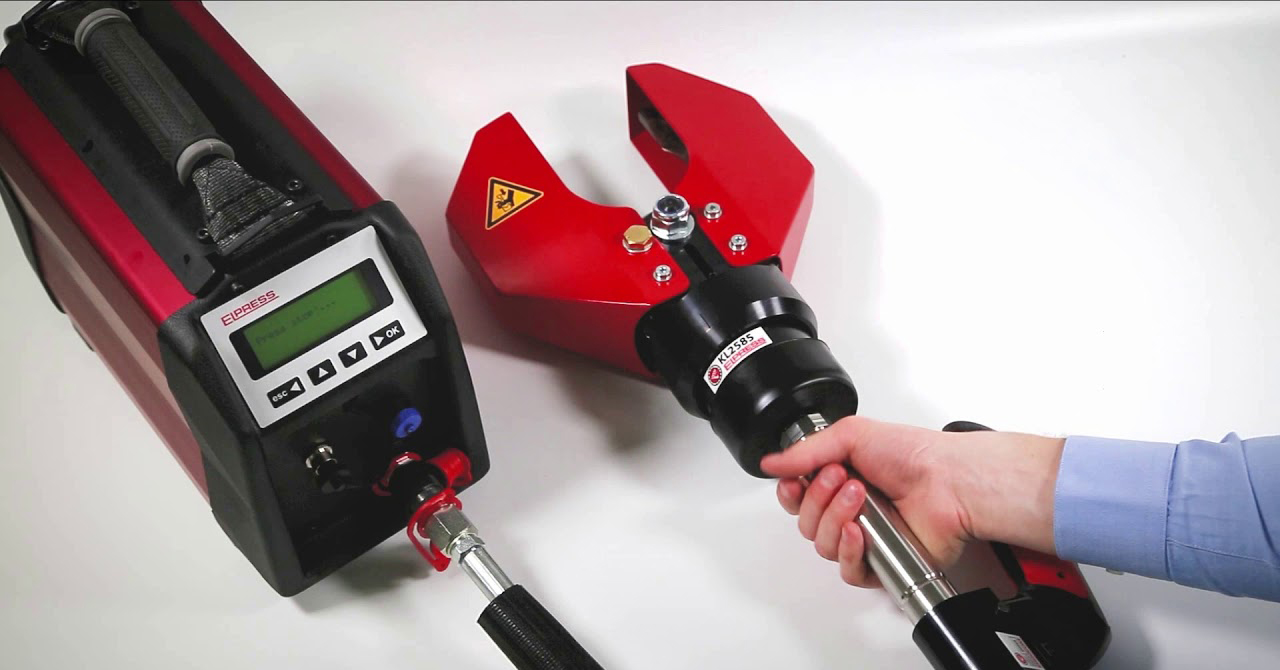

Elpress KL2585 Hydraulic Cable Cutting Head (up to Ø 85mm)

Product overview

Elpress KL2585 Hydraulic Cable Cutting Head (up to Ø 85mm) is a new hydraulic cable cutting head for copper and aluminium cable, cuts up to 4 x 150 mm2 Cu conductors and Ø 85 mm Al, paper and plastic insulated conductors (there may be some limitations depending on the material and design of the cable). The cutter tool is a successor to the popular KL1485 cutter tool – with the same features but increased cutting force. The cutting head is mounted on the V250 system. Approved by Network Rail (PADS Certificate PA05/07403).

EAN code: 7393487082519

Elpress KL2585 Features

Used with Elpress P4000 Hydraulic Foot Pump or Elpress PS710 Hydraulic/ Mains Powered Pump

Design is based on the V250 System

Compatible with ERGO and ERGOCOM handles for ergonomic handling (PS710E)

Cuts steel-reinforced cable, but not steel-wire-reinforced cable.

Interchangeable blades

Ground point (brass bolt) on the cutting head

242 kN of force

Cutting diameter 85 mm

Supplied in a durable plywood box

General Information

STRIPPING TOOLS

To strip insulation from cable there are the EMBLA, EMBLA RA, TOR and ODEN tools. They strip from approximately 0,02mm2 up to ∅ 40mm cable. The tools feature high precision, ergonomic adaptation, user friendliness and reliability.

CUTTING TOOLS

Tools are available in several variants for cutting Cu and Al cable up to approximately Ø 85mm. In addition to the simplest mechanical tools that cut cable up to Ø 20mm, there is a wide range of hydraulic tools for cutting cable up to approx 85mm.

The size of the conductor that the tools can handle mainly depends on the type of conductor to cut, whether it is a LV or MV cable and the class of the conductor. The hardness of the conductor’s material also affects the results. For example, the PKL54C is capable of cutting type Cu FKKJ 4 x 95 mm2 low voltage cable or Al AKKJ 4 x 240mm2 or MV cable type Al AXLJ 3 x 150mm2. The insulation takes some space on the medium voltage cable which is why it can be restrictive.

TOOLS FOR PEX CABLE

Finally, for the preparation of medium voltage cables, 12-24 kV and removal of conducting layers and PEX insulation, tools FBS1722 and FBS1723 are available.

For more information on Elpress KL2585 Hydraulic Cable Cutting Head, consult PDF File or Technical Data Table below.

*Technical Data subject to change without notice.
