Elpress Copper Branch C-Crimp Connectors (6-300mm²) are produced from electrolytic copper and are tin plated. (Range 6-300mm²)
Elpress Part Numbers: C4, C5, C6, C89, C11-8, C11-9, C11, C13-8, C13-9, C13-11, C13, C15-8, C15-9, C15-11, C15-13, C15, C16-9, C16-13, C16, C18-8, C18-9, C18-11, C18-13, C18-15, C18-16, C18, C21-8, C21-9, C21-11, C21-13, C21-15, C21-16, C21-18, C21, C23-16, C23.
This product has been discontinued and replaced by: Elpress C-sleeves – Copper Branch Connectors (6-300mm²).
SYSTEM ELPRESS
System Elpress consists of Terminals and Tools designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and the achievement of a secure connection through the proper handling of our products. Using Elpress Cu-Connection elements together with an Elpress Crimp System creates a connection tested according to the requirements of IEC 61238:1.
COPPER (CU) TERMINALS
Elpress Copper Connectors made of pure Copper 99.95%. We manufacture Tube Terminals type KR/ KRF/ KRD/ KRT, Through Connectors type KS/ KSF/ KSD/ KST for stranded conductors, IEC 60228 Class 2, and flexible conductors IEC 60228 Class 5 such as C-Sleeves primarily pre-splicing of Cu-lines and many customised products. For flexible and stranded Cu conductors, use terminals of type KR/ KRF and through connectors of type KS/ KSF. Use terminals of type KRD/ KRT and through connectors type KSD/ KST on stranded Cu conductors from and including 500mm2. Mainly use terminals of type KR/ KRF/ KRD/ KRT in the splicing of copper conductors in cable assemblies. Can also use them for straight splicing of earth conductors. With a branching sleeve, type C, one splices and branches earth conductors, lightning conductor installations and the like.
UL-APPROVED TERMINALS
UL is an American, but also internationally accepted, standard. Elpress standard Cu Terminals of types KR/ KS, KRF/ KSF, KRT/ KST, KRFS, KRFN (e.g. KRFN120-10, KRFN120-12) are UL-approved according to file no E205350.
DNV APPROVED
Elpress KR/ KS, KRF/ KSF and KRT/ KST Terminals meet DNV’s rules for classification of ships and Det Norske Veritas’ Offshore Standards. The Terminals have an approval for installations on ships and mobile offshore units.
MARKING OF CU TERMINALS
Elpress marking system for Copper Terminals shows logotype, cable area and type number for hexagonal die. This system allows you to check the use of correct tools when contact crimping, because the die number automatically becomes embossed during the contact crimping.
For more information on Elpress Copper Branch C-Crimp Connectors (e.g. C23-16, C18), consult PDF File or Technical Data Table below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

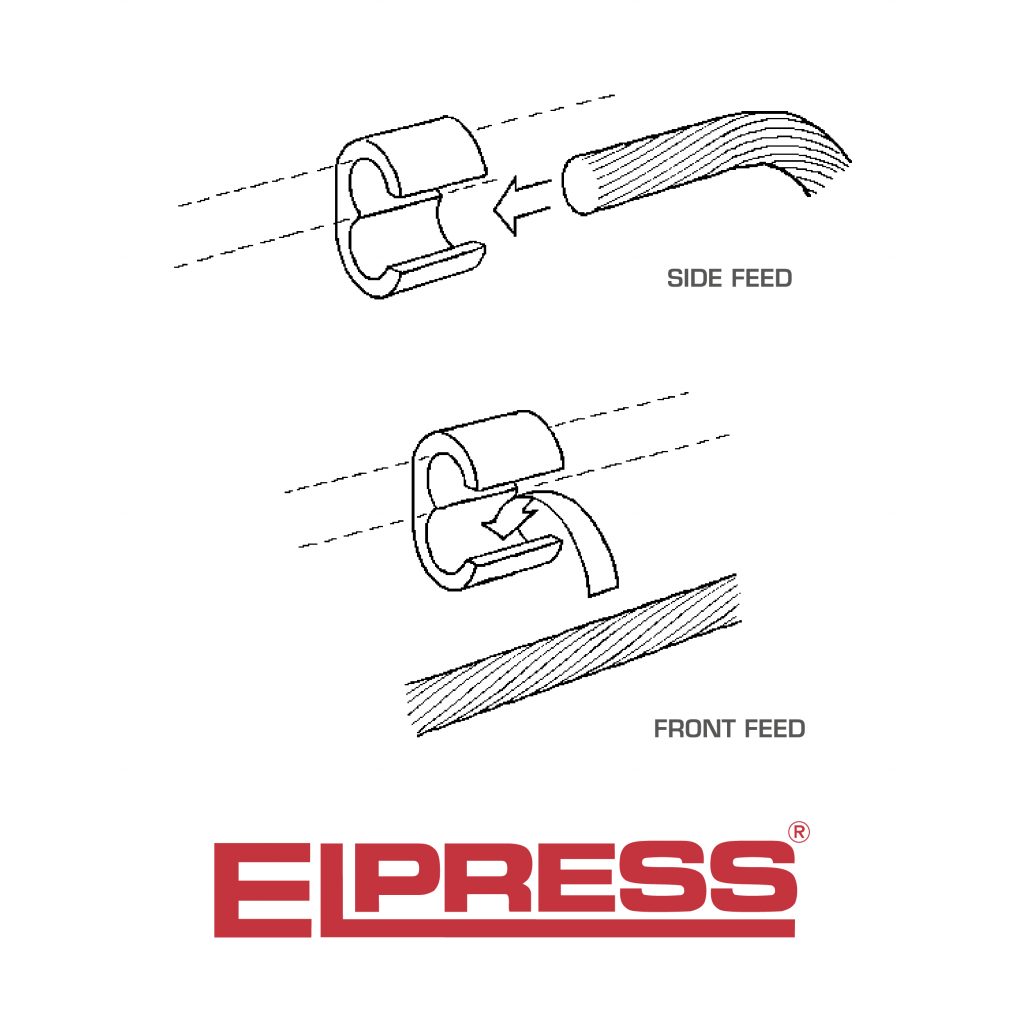

| Cat. No. | Wire section area Side feed |
|---|---|
| Cat. No.C4 | Wire section area Side feed10-6/10-6 |
| Cat. No.C5 | Wire section area Side feed16-10/16-10 |
| Cat. No.C6 | Wire section area Side feed25/16/25-16 25/10 |
| Cat. No.C89 | Wire section area Side feed25-50/25-50 16-50/35-50 |
| Cat. No.C11-8 | Wire section area Side feed70-50/35-25 |
| Cat. No.C11-9 | Wire section area Side feed70-50/50-35 |
| Cat. No.C11 | Wire section area Side feed70-50/70-50 |
| Cat. No.C13-8 | Wire section area Side feed95-70/35-25 |
| Cat. No.C13-9 | Wire section area Side feed95-70/50-35 |
| Cat. No.C13-11 | Wire section area Side feed95-70/70-50 |
| Cat. No.C13 | Wire section area Side feed96-70/95-70 |
| Cat. No.C15-8 | Wire section area Side feed120-95/35-25 |
| Cat. No.C15-9 | Wire section area Side feed120-95/50-35 |
| Cat. No.C15-11 | Wire section area Side feed120-95/70-50 |
| Cat. No.C15-13 | Wire section area Side feed120-95/95-70 |
| Cat. No.C15 | Wire section area Side feed120-95/120-95 |
| Cat. No.C16-9 | Wire section area Side feed150-120/50-35 |
| Cat. No.C16-13 | Wire section area Side feed150-120/95-70 |
| Cat. No.C16 | Wire section area Side feed150-120/150-120 |
| Cat. No.C18-8 | Wire section area Side feed185-150/35 |
| Cat. No.C18-9 | Wire section area Side feed185-150/50 |
| Cat. No.C18-11 | Wire section area Side feed185-150/70 |
| Cat. No.C18-13 | Wire section area Side feed185-150/95 |
| Cat. No.C18-15 | Wire section area Side feed185-150/120 |
| Cat. No.C18-16 | Wire section area Side feed185-150/150 |
| Cat. No.C18 | Wire section area Side feed185/185 |
| Cat. No.C21-8 | Wire section area Side feed240/35 |
| Cat. No.C21-9 | Wire section area Side feed240/50 |
| Cat. No.C21-11 | Wire section area Side feed240/70 |
| Cat. No.C21-13 | Wire section area Side feed240/95 |
| Cat. No.C21-15 | Wire section area Side feed240/120 |
| Cat. No.C21-16 | Wire section area Side feed240/150 |
| Cat. No.C21-18 | Wire section area Side feed240/185 |
| Cat. No.C21 | Wire section area Side feed240/240 |
| Cat. No.C23-16 | Wire section area Side feed300/150-120 |
| Cat. No.C23 | Wire section area Side feed300/300 |
