Filoform MDI Duct Sealing System

Product overview

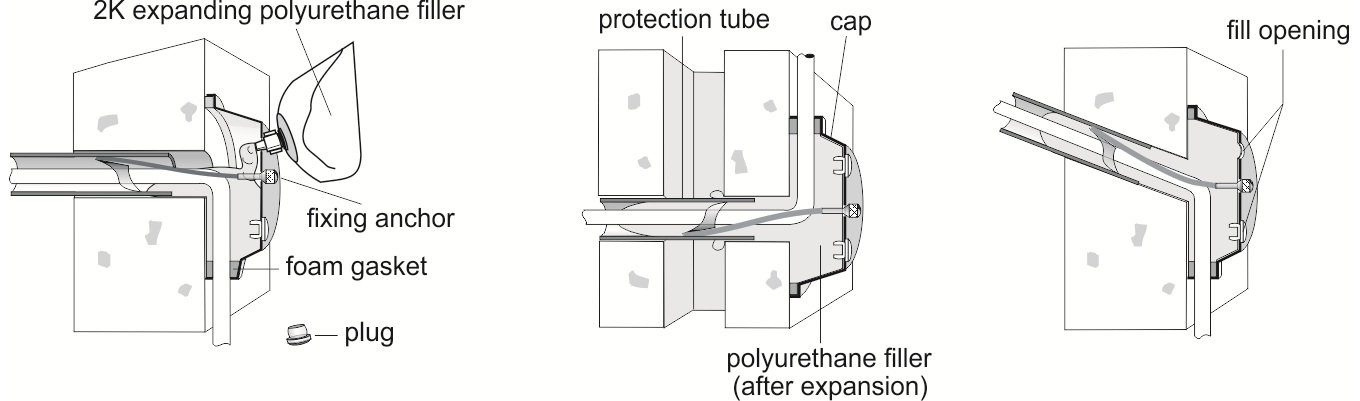

Filoform MDI Duct Sealing System has been developed for sealing ducts containing pliable cables such as coax and rubberised cables, which can be easily bent to a right angle. Suitable for ducts with a diameter of 16mm up to 60mm and cables or pipes with a diameter up to 25mm.

Filoform Part Numbers: MDI-1 (280220), MDI-2 (280223P)

This system allows these usually vulnerable cables to be sealed anywhere along a wall where the cable enters a building. Filoform Duct Sealing Systems are specified and used by major Electrical, Gas, & Water Utility companies in the UK and Benelux countries.

Filoform MDI Duct Sealing System – Key Features

High levels of Gas and Water tightness

Resistant to Hydrogen Sulphide / Methane and many other Gases

Complies with ATEX regulations

Suitable for ducts / bore holes

Quick and easy installation

A complete kit for one duct

Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes

Excellent mechanical strength, after curing resistant to movements, shocks and vibrations

Suitable for renovations, installation can take place retrospectively

Over 25 years of operational experience

For Additional Information on Filoform MDI Duct Sealing System (MDI-1, MDI-2), please refer to the Technical Data Table below or download PDF File.
