Vicera APU2.0 Cable Jointing Stand

Product overview

Vicera APU2.0 Cable Jointing Stand (6413611)

Vicera APU2.0 Cable Jointing Stand (6413611) for the installation of medium (MV) and high voltage (HV) Cable Joints and Terminations. With APU2.0 cable preparation and jointing work is easier, more ergonomic, and efficient to deliver. Based on significant experiences and feedback from the field, jointers rely on this to achieve higher quality of installations. A great “jointer mate” from the worst joint bay to the substation environment. Also used by several accessory manufacturers in trainings and demos!

Key Features

Ergonomic, Efficient & Easy to use

Wide range of adjustment options make it suitable for almost every cable installation

Installation height: 25 to 145 cm

Sturdy and robust cable clamps

Stepless lateral and tilt adjustment

Suitable for all cables with an Outer Diameter of 18 to 90mm

Suitable for almost any terrain/ ground

Minimising cable preparation risks

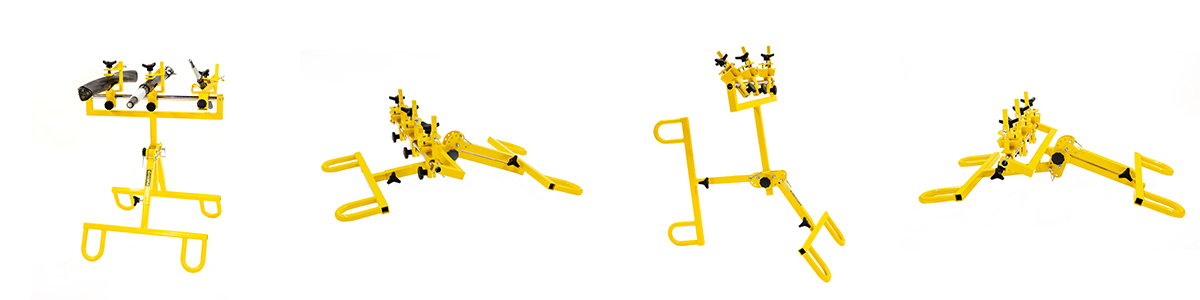

Vicera APU2.0 Stand Adjustments

Each cable clamp of the APU2.0 cable joint installation stand adjusts to its own desired position, with stepless adjustment in the lateral and tilt angle directions.

Also suitable if the cable comes from the ground vertically. The height adjustment is very wide. Cables can be attached to APU2.0 very close to the ground with an installation height of 20 cm and maximum height is 145 cm.

Legs also have multiple adjustment options and thus, are suitable for use in almost all kinds of joint bays. Legs can adjust in 180 degrees angle to place it on a cable trench. The clamps are designed to fit any MV and HV cable from 18 mm to 90 mm in outer diameter.

For Additional Information on Vicera APU2.0 Cable Jointing Stand (6413611), please advise Technical Data table or PDF File below.
