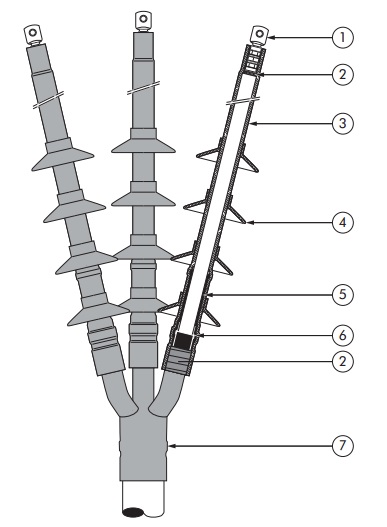

Nexans SRDF Outdoor MV Heat-Shrink Terminations (Three Core) are medium voltage heat-shrinkable outdoor terminations for three core screened polymeric insulated cables (PVC, XLPE, EPR, etc.) up to 36 kV. Standard core tube lengths are shown below, but can be extended by using extra lengths of anti-tracking HSRU tubing. Meets the requirements of CENELEC HD 629.1 and IEC 60502-4.
Part Numbers: SRDF 12 16-25B / 35-95B / 120-240B / 240-400B , SRDF 24 35-70B / 95-185B / 240-400B , SRDF 36 70-95B / 120-240B / 240-400B.
For outdoor use and exposed to prolonged sunshine and other weather conditions. Heat-shrinkable terminations for three-core polymeric cables, widely used by power utilities and in industrial applications. SRDF Outdoor version’s design makes it perfect for terminating cables onto OHL networks. Equally suitable for exposed equipment bushings or installations requiring longer creepage distances. Additional items may be necessary to complete installation depending upon the cable detail:
Copper-tape screened cables will require additional SE Solderless Screen Earthing Kits
Cable Glands to earth the wire armours (SWA)
Cable Terminals
Additional Bushing Insulation (Boot Kits)
Gland Insulation Kits
Below you can easily select the Nexans Outdoor Three Core MV Heat-Shrink Terminations for each cable voltage:
MAX VOLTAGE 12-17.5 kV
SRDF 12/16-25B : Cable Range=16-25 mm2 | Core Length=650 mm
SRDF 12/35-95B : Cable Range=35-95 mm2 | Core Length=650 mm
SRDF 12/120-240B : Cable Range=120-240 mm2 | Core Length=650 mm
SRDF 12/240-400B : Cable Range=240-400 mm2 | Core Length=650 mm
SRDF 24/35-70B : Cable Range=35-70 mm2 | Core Length=1200 mm
SRDF 24/95-185B : Cable Range=95-185 mm2 | Core Length=1200 mm
SRDF 24/240-400B : Cable Range=240-400 mm2 | Core Length=1200 mm
MAX VOLTAGE 36 kV
SRDF 36/70-95B : Cable Range=70-95 mm2 | Core Length=1200 mm
SRDF 36/120-240B : Cable Range=120-240 mm2 | Core Length=1200 mm
SRDF 36/240-400B : Cable Range=240-400 mm2 | Core Length=1200 mm
Additional Technical Data of Nexans SRDF Outdoor MV Heat-Shrink Terminations (SRDF 12, 24 & 36) can be found on the table below. For more information, please advise the PDF File. Nexans 17JTS1 W
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Type | Max Voltage |
|---|---|
| TypeSRDF 12/16-25B | Max Voltage 12-17,5 kV |
| TypeSRDF 12/35-95B | Max Voltage 12-17,5 kV |
| TypeSRDF 12/120-240B | Max Voltage 12-17,5 kV |
| TypeSRDF 12/240-400B | Max Voltage 12-17,5 kV |
| TypeSRDF 24/35-70B | Max Voltage 24 kV |
| TypeSRDF 24/95-185B | Max Voltage 24 kV |
| TypeSRDF 24/240-400B | Max Voltage 24 kV |
| TypeSRDF 36/70-95B | Max Voltage 36 kV |
| TypeSRDF 36/120-240B | Max Voltage 36 kV |
| TypeSRDF 36/240-400B | Max Voltage 36 kV |
