Elpress Crimp Dies for V250 (OHL Connectors) – Crimp Dies for AlMgSi (Super B), Al59 & FeAl. Supplied as a pair.

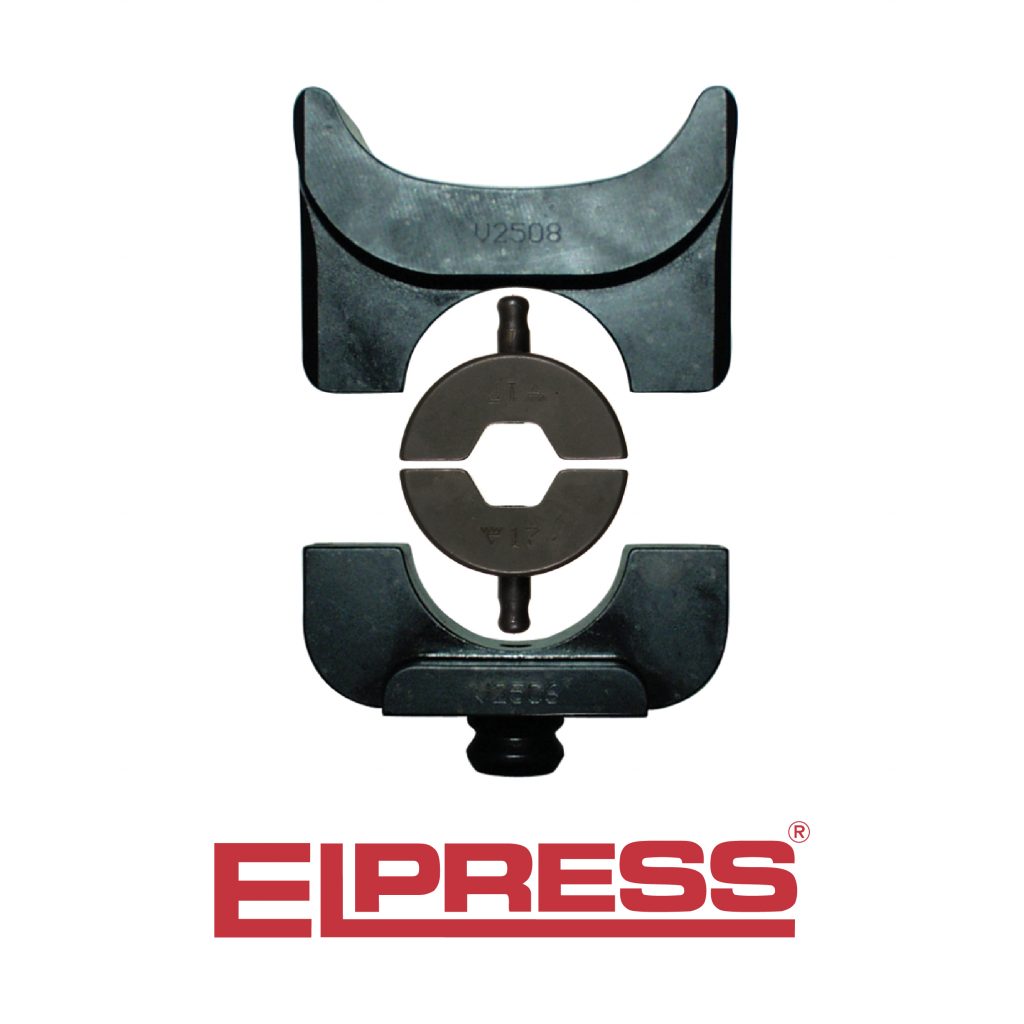

Supplied in pairs. Hexagonal Crimping. For joints on overhead lines AlMgSi (Super B) and Al59. Use inner die holder V2506 and outer die holder V2508.
B16NP: 31-62 mm2 | 2 x 5 crimps |0,118 kgs
B20NP: 99 mm2 | 2 x 5 crimps | 0,126 kgs
B26NP: 157 mm2 | 2 x 8 crimps | 0,140 kgs
Supplied in pairs. BxxFE Dies are used for steel sleeves and BxxNP Dies are used for Al sleeves. Use inner die holder V2506 and outer die holder V2508.
B6FE – B16NP: 62 mm2 | 2 x 5 crimps
B8FE – B20NP: 99 mm2 | 2 x 5 crimps
SYSTEM ELPRESS
System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.
HYDRAULIC CRIMP SYSTEMS
Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.
For more information on Elpress Crimp Dies for V250 (B16NP, B20NP, B26NP, B6FE, B8FE), consult PDF File or Technical Data Table below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Crimp Dies for AlMgSi (Super B) & Al59 Supplied in pairs. Hexagonal Crimping. For joints on overhead lines AlMgSi (Super B) and Al59. Use inner die holder V2506 and outer die holder V2508. | |
|---|---|
| Overhead Line | Name |
| Overhead Line 31-62 mm2 | NameB16NP |
| Overhead Line 99 mm2 | NameB20NP |
| Overhead Line 157 mm2 | NameB26NP |
| Crimp Dies for Overhead Lines FeAl Supplied in pairs. BxxFE Dies are used for steel sleeves and BxxNP Dies are used for Al sleeves. Use inner die holder V2506 and outer die holder V2508. | |
| mm2 | Die Fe |
| mm262 | Die FeB6FE |
| mm299 | Die FeB8FE |
