Furukawa AQUA Square Adaptor is a jointing mechanism used in intervals to connect the cut ends of EFLEX Square Duct, when adjusting length. When EFLEX Square ducts meet at the centre point of any given section, the length can be adjusted and the AQUA Square accessory can used to complete the installation.
Features a non-woven, water-expanding cloth to maintain the watertight integrity of the cable route. Includes single action locking clips and requires no tools to connect – easy to join by hand using little force. Creates a watertight connection between two cut pieces of EFLEX Square. It is possible to change length of EFLEX Square again and again till inserting locking clips. It is applied to IP67(IEC-60529).
Connection Procedure
Determine the cutting locations, while allowing some overhang.
Cut along the built-in cutting guides.

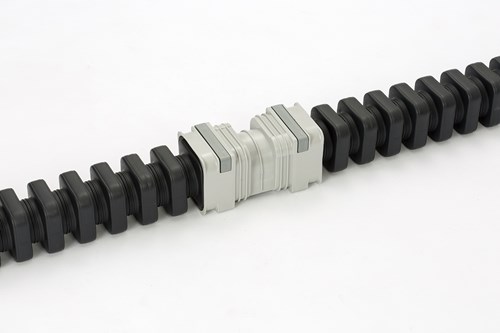

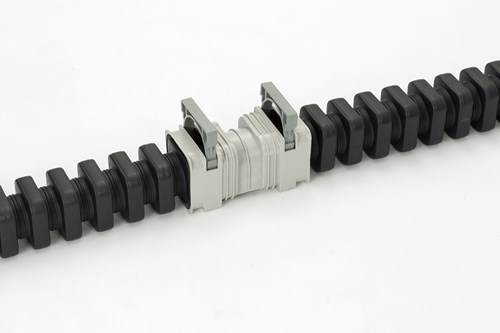

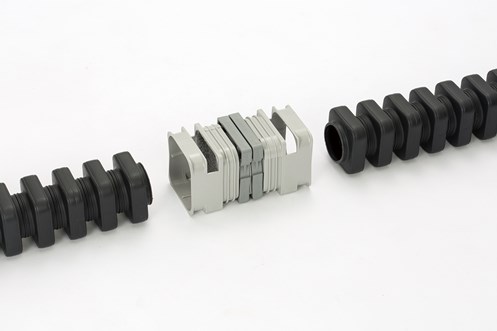

Insert the cut ends of EFLEX Square into the AQUA Square. Insert the single-acttion locking clips, checking that the connection is secure by pulling in the opposite direction by hand.
For more information on Furukawa AQUA Square Adaptor, please advise PDF Files below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| AQUA Square | Part Numbers |
|---|---|
| AQUA SquareSize 50 | Part NumbersKFSA-50 |
| AQUA SquareSize 75 | Part NumbersKFSA-75 |
| AQUA SquareSize 100 | Part NumbersKFSA-100 |
| AQUA SquareSize 130 | Part NumbersKFSA-130 |
| AQUA SquareSize 150 | Part NumbersKFSA-150 |
