D-Line U-Clips – Safe-D Fire Rated Cable Fixings can be fitted direct-to-surface, or in non-metallic trunking systems. All can be secured to substrates by shot-fired nails or screw-fixings.
Part Numbers: SAFE-D30, SAFE-D30/RED, SAFE-D40, SAFE-D50.
After cables are inserted, tabs can be folded inwardly to safely secure the cables. Produced from a specified steel with >1200ºC melting point.
The combination of the pliable gauge steel & rounded corner features makes Safe-D U-Clips quick & easy to install. Three sizes are available to fit trunkings from 25mm width up to 50mm wide bases, or direct-to-surface.
D-Line U-Clips Features
Thumb friendly, easy fold side-tabs
Ideal for ceiling voids, or popular PVC trunkings
Supplied as U-shape
>1200°C melting point
Fully safety tested to satisfy requirements of BS5839 pt 1 & BS7671

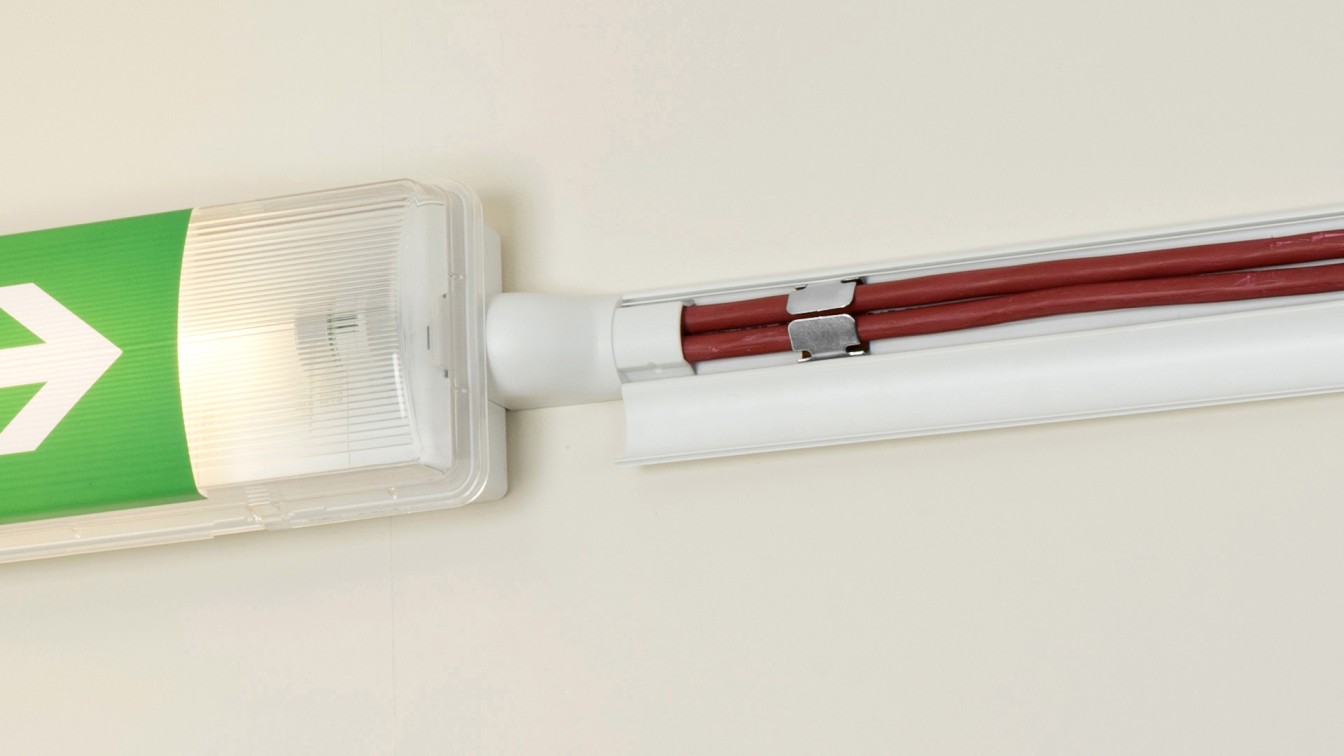

First fix clips, then fix cables: D-Line U-Clip 30 (SAFE-D30) fits perfectly in 30 x 15 mm Mini Trunking, while the 23 mm base can fit 25 x 16 mm traditional trunking also. Alternatively Safe-D U-Clip 30 fire clips can be fixed directly to surfaces, with user-friendly and pliable tabs that simply fold-over to secure cables.
First fix clips, then fix cables: D-Line U-Clip 30 Red (SAFE-D30/RE) can be fitted directly to surfaces, with tabs that simply fold-over to secure cables. The red finish makes a popular solution for containing red-sheathed fire performance cables direct to surface. The 23 mm width is ideal for popular 2 x MICC or FP-cable combinations.

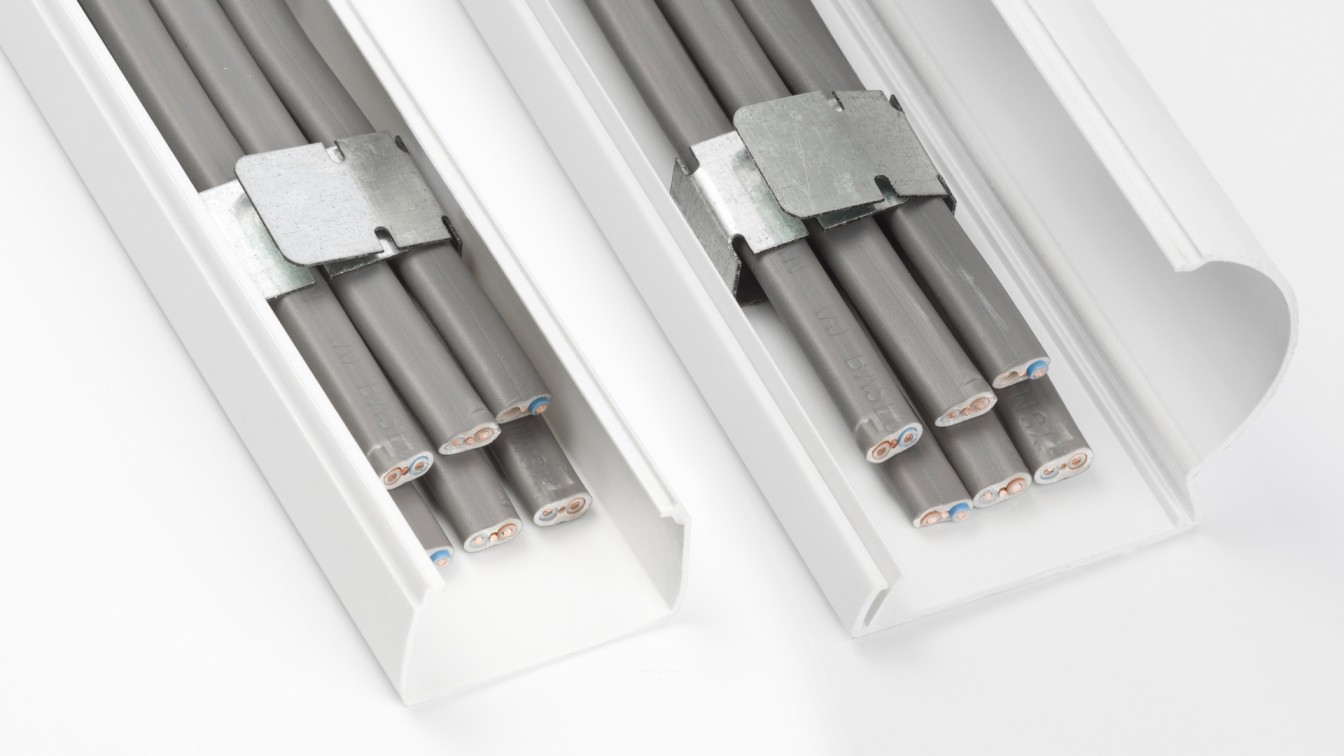

First fix clips, then fix cables: D-LineU-Clip 40 (SAFE-D40) is ideal for fitment in 38 mm or 40 mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.

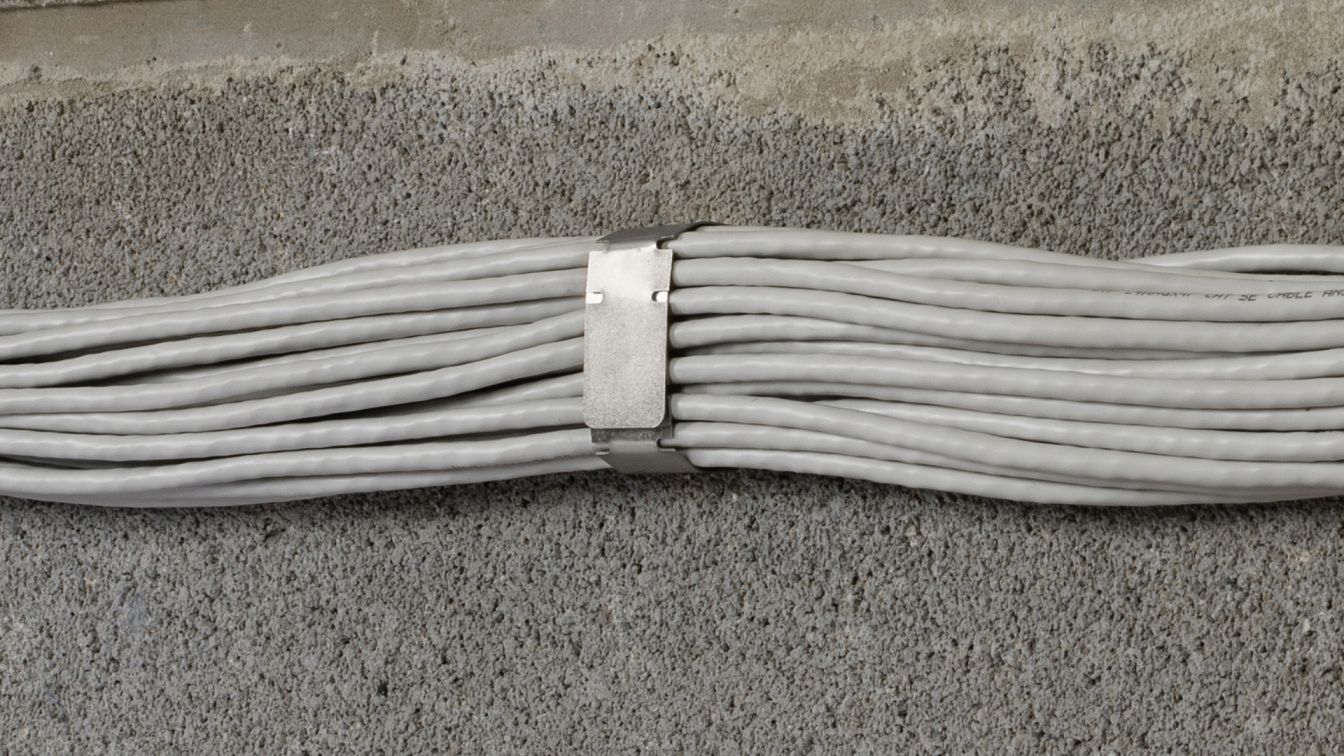

First fix clips, then fix cables: SAFE-D50 fire clips are popular for fitment in 50mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
For Additional Information on D-Line U-Clips – Safe-D Fire Rated Cable Fixings, please download PDF File or advise Technical Data table below.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| D-Line U-Clip 30 (SAFE-D30) First fix clips, then fix cables: D-Line U-Clip 30 (SAFE-D30) fits perfectly in 30 x 15 mm Mini Trunking, while the 23 mm base can fit 25 x 16 mm traditional trunking also. Alternatively Safe-D U-Clip 30 fire clips can be fixed directly to surfaces, with user-friendly and pliable tabs that simply fold-over to secure cables. Dimensions: 20mm (L) x 23mm (W) x 8mm (H) (folded – max height) | |
|---|---|
| D-Line U-Clip 30 Red (SAFE-D30/RED) First fix clips, then fix cables: D-Line U-Clip 30 Red (SAFE-D30/RE) can be fitted directly to surfaces, with tabs that simply fold-over to secure cables. The red finish makes a popular solution for containing red-sheathed fire performance cables direct to surface. The 23 mm width is ideal for popular 2 x MICC or FP-cable combinations. Dimensions: 20mm (L) x 23mm (W) x 8mm (H) (folded – max height) | |
| D-Line U-Clip 40 (SAFE-D40) First fix clips, then fix cables: D-LineU-Clip 40 (SAFE-D40) is ideal for fitment in 38 mm or 40 mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables. Dimensions: 20mm (L) x 31mm (W) x 20mm (H) (folded – max height) | |
| D-Line U-Clip 50 (SAFE-D50) First fix clips, then fix cables: SAFE-D50 fire clips are popular for fitment in 50mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables. Dimensions: 20mm (L) x 46mm (W) x 30mm (H) (folded – max height) | |
| Part No | Description (folded - max height) |
| Part NoSAFE-D30 | Description (folded - max height)20mm (L) x 23mm (W) x 8mm (H) |
| Part NoSAFE-D30/RED | Description (folded - max height)20mm (L) x 23mm (W) x 8mm (H) |
| Part NoSAFE-D40 | Description (folded - max height)20mm (L) x 31mm (W) x 20mm (H) |
| Part NoSAFE-D50 | Description (folded - max height)20mm (L) x 46mm (W) x 30mm (H) |
