Elpress Un-Insulated Connector Blocks for Sockets & Bullets (0.2-1.5mm²)

Product overview

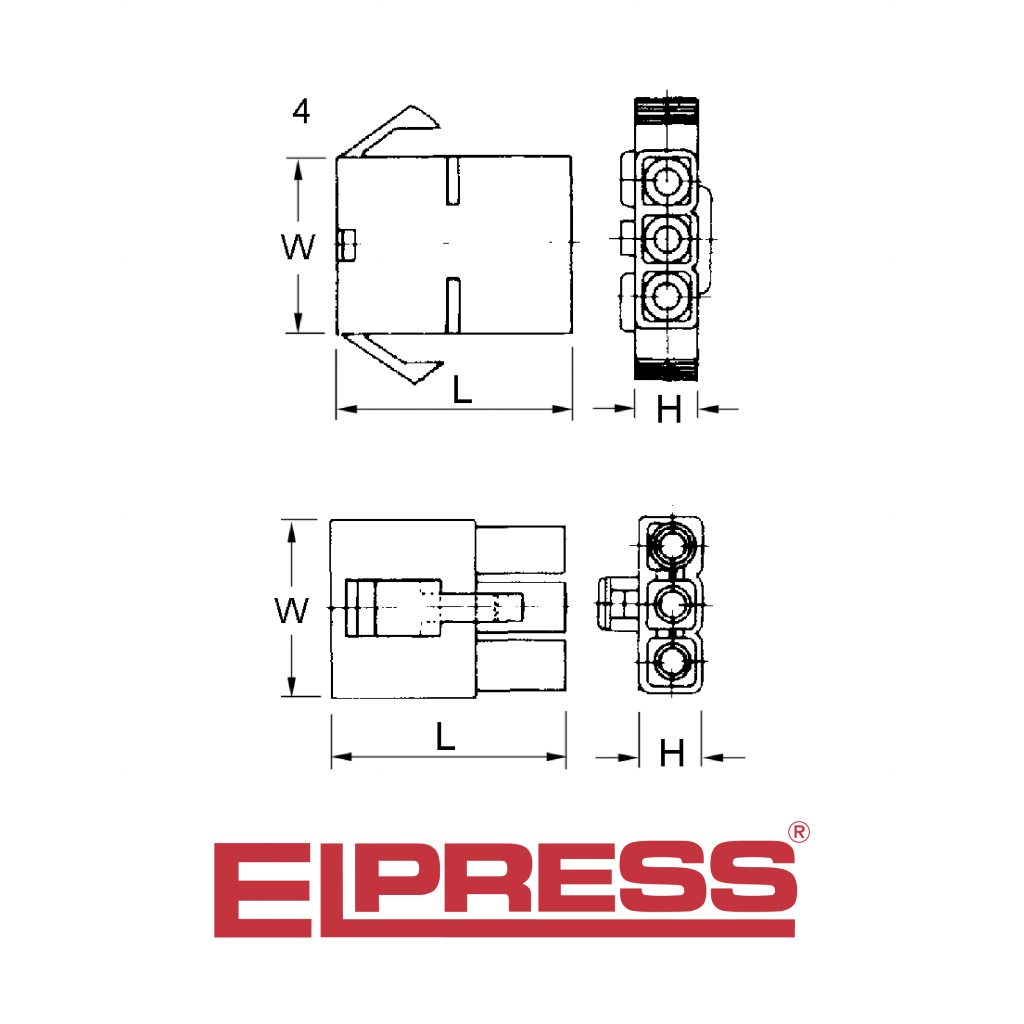

Elpress Un-Insulated Connector Blocks for Sockets & Bullets

Elpress Un-Insulated Connector Blocks for Sockets & Bullets (0.2-1.5mm²) is designed to be used together with Sockets and Bullets ranging between 0.2 and 1.5mm².

Part Numbers: Elpress MC02F, MC02M, MC03F, MC03M, MC04F, MC04M, MC06F, MC06M, MC09F, MC09M, MC12F, MC15F, MC15M.

Used with sockets and bullets 0.2-1.5mm²

Material Polyaminade (PA) transparent

Rated voltage 250 V

Max current 20 A

Temperature range -20°C to +105°C

Tested against breakthrough for 1 min at 1500VAC.

General Information

SYSTEM ELPRESS

System Elpress consists of Terminals and Tools designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and the achievement of a secure connection through the proper handling of our products. By using Elpress Cu-Connection elements together with one of Elpress Crimp Systems one obtains a connection tested according to the requirements of IEC 61238:1.

UN-INSULATED TERMINALS

Elpress Through Connectors, Ring, Pipe, Fork and Pin terminals produced from high quality Copper 99.95%. The Receptacles and Sockets made of brass. All terminals then get electro-tin plating for maximum corrosion protection. Terminals made of copper bands have a brazed soldered neck, which means that user can crimp them in any direction.

Marking & Approvals

LABELLING

Elpress uninsulated terminals have a clear marking with logotype, area and any screw diameter to facilitate work and checkability.

UL-APPROVED TERMINALS

KR/ KS, KRF/ KRS, KRFS, KRT/ KST UL-approved in accordance with file no E205350. UL-certified products delivered with UL marking on the label including the UL file number and/ or certification code for control by an UL inspector. You can download the certificate at UL Product IQ.

For more information on Elpress Un-Insulated Connector Blocks for Sockets and Bullets (MC02F, MC03F, MC03M, MC04F, MC09F), see PDF File below.

*Technical Data subject to change without notice.
