Prysmian BICON E1WF-AL Cable Gland Kit (KCA455)

Product overview

Prysmian BICON E1WF-AL Cable Gland Kit (KCA455 Series) is an aluminium indoor and outdoor cable gland for use in hazardous locations. Suitable for use with all aluminium wire armoured cables.

Part Numbers: KCA455-51, KCA455-71, KCA455-52, KCA455-53, KCA455-55, KCA455-56, KCA455-57, KCA455-58, KCA455-59, KCA455-60, KCA455-61, KCA455-62, KCA455-63, KCA455-64.

Prysmian KCA455 Features

Aluminium indoor and outdoor cable gland for use in hazardous areas.

Suitable for circular, aluminium wire armour cables with extruded polymeric bedding and oversheath.

Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant.

Three part armour lock provides mechanical cable retention and electrical continuity.

Inner PCP seal grips cable bedding and provides additional ingress protection.

Suitable for most climatic conditions – weatherproof and waterproof.

Standard and Nickel plated versions available.

Full installation instructions supplied.

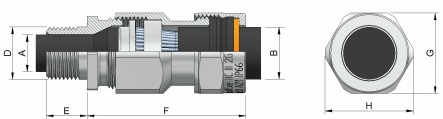

Prysmian KCA455 Technical Data

Certified II 2GD, Ex e II & Ex d IIC under ATEX directive 94/9/EC.

Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1.

Certificate number Sira 02ATEX3092X.

IECEx Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1.

Certificate number IECEx SIR 10.0071X

Service temperature range -60°C to +90°C.

Additional Information

May be used in:

Zones 0, 1 & 2 with Ex ia IIA , B & C equipment.

Zones 1 & 2 with Ex ib IIA , B & C equipment.

Zones 1 & 2 with Ex e II equipment.

Zone 2 with Ex nA II equipment.

Zones 21 & 22 with Ex tD A21.

Where the cable is effectively filled, may also be used in:

Zones 1 & 2 with Ex d IIC equipment not containing a source of ignition & with a volume less than 2000 cm3.

Zones 1 & 2 with Ex d IIA & Ex d IIB equipment not containing a source of ignition & with any volume.

Zone 1 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with a volume less than 2000 cm.

Zone 2 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with any volume.

Zone 2 with Ex nR II equipment.

Kit Contents

E1WF-Al Gland

Aluminium Earth Tag

Aluminium Locknut

Nylon Sealing Washer

PVC Shroud

(2 per kit up to and including 25mm size)

For more information on Prysmian BICON E1WF-AL Cable Gland Kit (KCA455 Series), please consult the Datasheet below.
