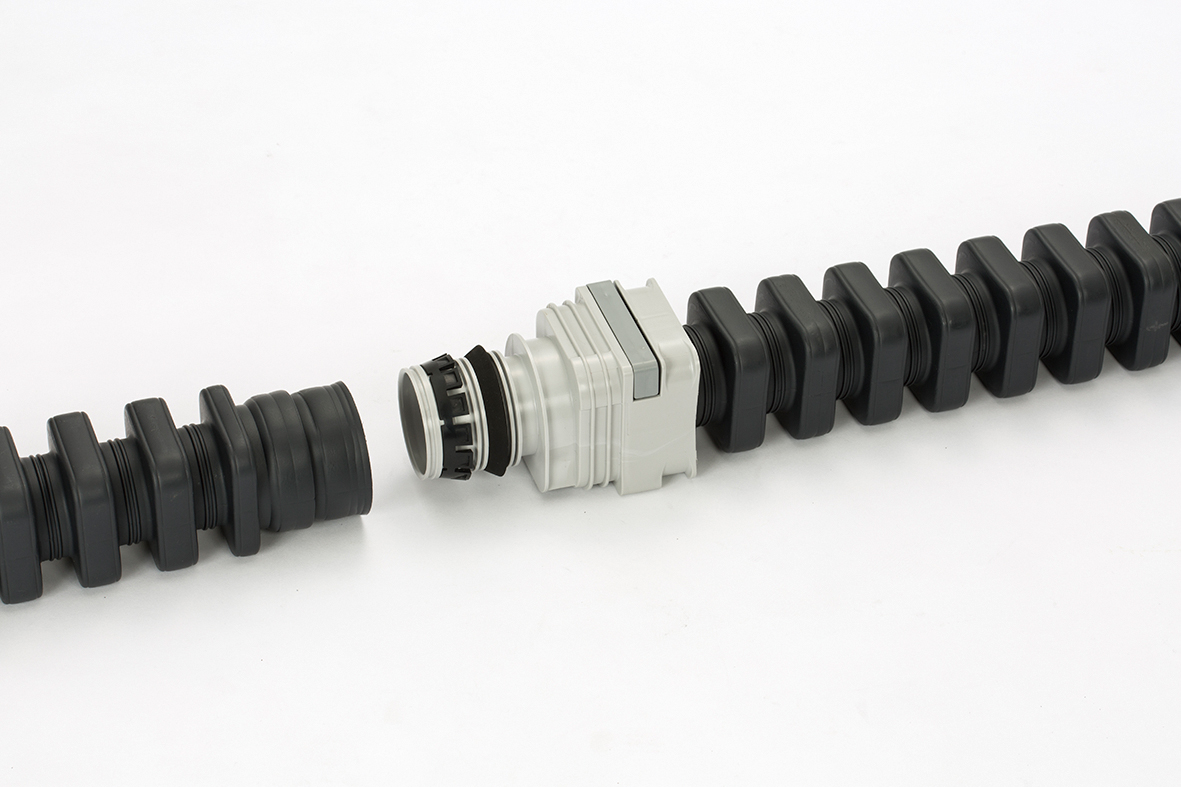

Furukawa AQUA Square Male Adaptor is a jointing mechanism used when converting the intermediate part of the pipe to male structure, and to insert it to the female structured part. You can use this adaptor in any scenario where a male connector is necessary (eg. adjustment of pipe lengths, utilising pipe ends etc.). When EFLEX Square ducts meet at the centre point of any given section, the conversion can be made using this AQUA Square accessory.
Features a non-woven, water-expansion cloth to preserve the watertight integrity of the cable route. Includes a single action locking clip on one side and a male adaptor with locking ring on the other. Requires no tools to connect – easy to join by hand using little force. Creates a watertight connection between a cut piece of EFLEX Square and the accessory.
AQUA Square Male Connection Procedure
Apply lubrication to the rubber seal on the AQUA Square Male Adaptor and the inside of the female connector of EFLEX Square, to ensure the rubber seal is seated correctly. When completed, the rubber seal creates a watertight connection.
Ensure the connectors are free from dirt and debris and insert the Male Adaptor into the female connector of EFLEX Square.
Determine the cutting location on EFLEX Square, while allowing some overhang.
Cut along the built-in cutting guide.
Insert the cut end of EFLEX Square into the Male Adaptor.
Insert the single-action locking clip into the Male Adaptor, checking that the connection is secure by pulling in the opposite direction by hand.

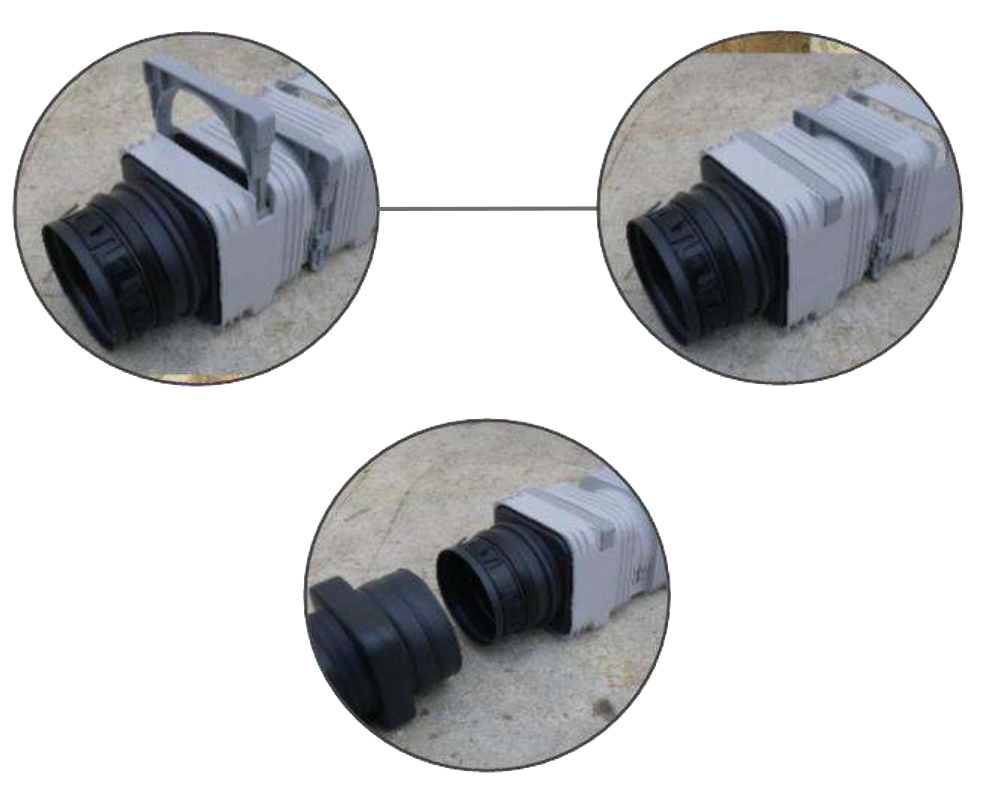

The AQUA Square Male Adaptor is not available for Size 130 and 150 EFLEX Squares. For these sizes it is possible to convert an AQUA Squares, by combining it with an EFLEX Square Male Adaptor.
Ensure the connections are free from dirt and debris and insert the EFLEX Male into the AQUA unit.
Remove the single-action locking clip from its holder and insert into the slot to secure the male end of EFLEX
For more information on Furukawa AQUA Square Male Adaptor, please advise PDF Files below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| AQUA Square Male Adaptor | Part Numbers |
|---|---|
| AQUA Square Male AdaptorSize 50 | Part NumbersKDA-50-O |
| AQUA Square Male AdaptorSize 75 | Part NumbersKDA-75-O |
| AQUA Square Male AdaptorSize 100 | Part NumbersKDA-100-O |
| AQUA Square Male AdaptorSize 130 | Part NumbersKDA-130-O |
| AQUA Square Male AdaptorSize 150 | Part NumbersKDA-150-O |
