Prysmian BICON E1W-XL NPT Cable Gland (474NP)

Product overview

Prysmian BICON E1W-XL NPT Cable Gland (474NP Series) is a brass indoor and outdoor cable gland for use in hazardous locations. Universal Gland suitable for use with steel wire armour, braid wire armoured and lead sheathed cables.

Part Numbers: 474NP-03, 474NP-04, 474NP-07, 474NP-05, 474NP-08, 474NP-10, 474NP-14, 474NP-15, 474NP-20, 474NP-21, 474NP-27, 474NP-28, 474NP-31, 474NP-32, 474NP-33, 474NP-38, 474NP-39, 474NP-45, 474NP-47.

Prysmian 474NP Features

Brass indoor and outdoor cable gland for use in hazardous areas.

Suitable for circular, galvanised steel wire armour cables with extruded polymeric bedding and oversheath.

Suitable for circular, Braid wire armour cables with extruded polymeric bedding and oversheath.

Achieves IP67 and deluge proof (DTS01:1991) seal onto cable and to enclosure with suitable sealing washer or thread sealant.

Three part armour lock provides mechanical cable retention and electrical continuity.

Continuity Connection for Lead Inner sheathed cables.

Inner PCP seal grips cable bedding and provides additional ingress protection.

E1W-XL NPT Cable Gland is suitable for most climatic conditions – weatherproof and waterproof.

Standard and Nickel plated versions available.

Full installation instructions supplied.

*NPT Threaded glands are supplied as glands only.

**Other NPT sizes are available upon request.

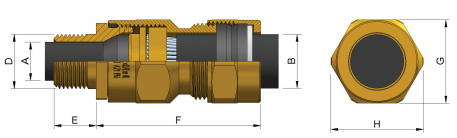

Prysmian 474NP Technical Data

Certified II 2GD, Ex e II & Ex d IIC under ATEX directive 94/9/EC.

Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1.

Certificate number Sira 02ATEX3093X.

IECEx Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1.

Certificate number IECEx SIR 10.0070X

Service temperature range -60°C to +90°C.

Additional Information

May be used in:

Zones 1 & 2 with Ex e II equipment.

Zone 2 with Ex nA II equipment.

Zones 21 & 22 with Ex tD A21.

Where the cable is effectively filled, may also be used in:

Zones 1 & 2 with Ex d IIC equipment not containing a source of ignition & with a volume less than 2000 cm3.

Zones 1 & 2 with Ex d IIA & Ex d IIB equipment not containing a source of ignition & with any volume.

Zone 1 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with a volume less than 2000 cm.

Zone 2 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with any volume.

Zone 2 with Ex nR II equipment.

For more information on Prysmian BICON E1W-XL NPT Cable Gland (474NP Series), please consult Datasheet below.
