Nexans 12-42 MONOi Indoor MV Heat-Shrink Terminations are medium voltage heat-shrinkable indoor terminations for single core polymeric cables with Copper Wire or Tape Screen. Up to 20,8/36 (42) kV.
Part Numbers:
3x12MONOi – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,
3x24MONOi – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,
3x36MONOi – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,

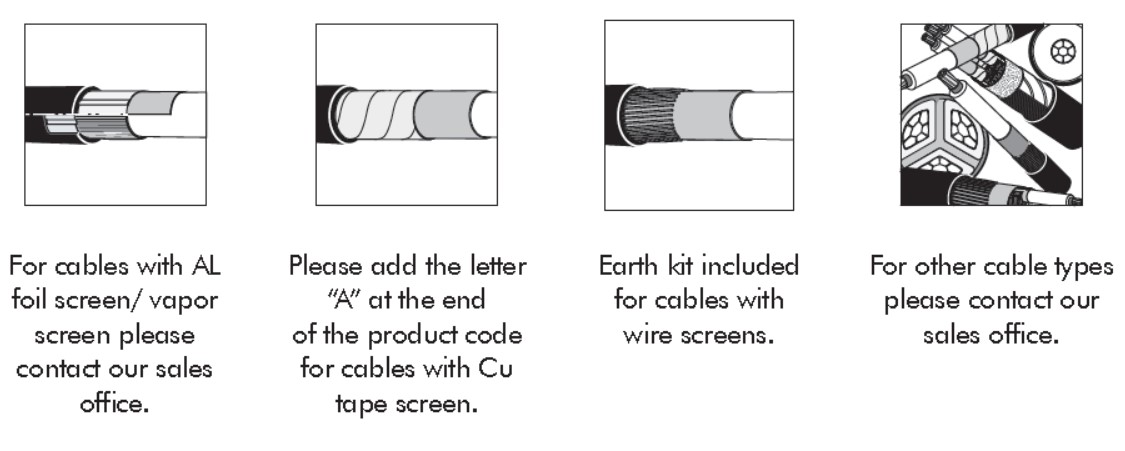

The “MONOi” terminations are a single component solution, for single core polymeric cables.
The “MONOi” indoor terminations are designed for max system voltages of 42 kv. Suitable for compact switchgears as well as for installations where space is limited.
Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic strip, a co extruded dual wall tube and red anti-tracking sealing mastic.

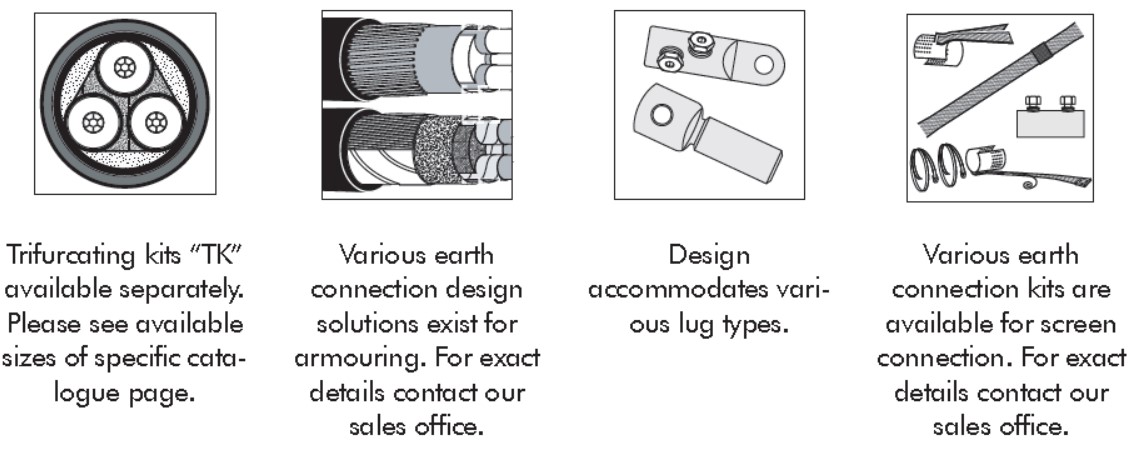

Add on kit for armoured cables are available separately. Each MONOi termination kit contains material to allow for 3 phase installation.
The following list enables the selection of Nexans MONOi heat shrink terminations for 11/12kV, 24kV, 33kV and 42kV voltage cables (3x12MONOi, 3x24MONOi, 3x36MONOi, 3x42MONOi):
MAX VOLTAGE 12 kV – 3x12MONOi
Part No Section Core Length
3x12MONOi1.95i 25÷95 mm2 300 mm
3x12MONOi1.240i 70÷240 mm2 300 mm
3x12MONOi1.300i 95÷300 mm2 300 mm
3x12MONOi1.400i 185÷400 mm2 350 mm
3x12MONOi1.630i 400÷630 mm2 350 mm
3x12MONOi1.1000i 630÷1000 mm2 400 mm
3x12MONOi1.1200i 1000÷1200 mm2 400 mm
MAX VOLTAGE 24 kV – 3x24MONOi
Part No Section Core Length
3x24MONOi1.95i 25÷95 mm2 350 mm
3x24MONOi1.240i 70÷240 mm2 350 mm
3x24MONOi1.300i 95÷300 mm2 350 mm
3x24MONOi1.400i 185÷400 mm2 400 mm
3x24MONOi1.630i 400÷630 mm2 400 mm
3x24MONOi1.1000i 630÷1000 mm2 400 mm
3x24MONOi1.1200i 1000÷1200 mm2 450 mm
MAX VOLTAGE 36 kV – 3x36MONOi
Part No Section Core Length
3x36MONOi1.95i 25÷95 mm2 450 mm
3x36MONOi1.240i 70÷240 mm2 450 mm
3x36MONOi1.300i 95÷300 mm2 450 mm
3x36MONOi1.400i 185÷400 mm2 450 mm
3x36MONOi1.630i 400÷630 mm2 500 mm
3x36MONOi1.1000i 630÷1000 mm2 500 mm
3x36MONOi1.1200i 1000÷1200 mm2 500 mm
MAX VOLTAGE 42 kV – 3x42MONOi
Part No Section Core Length
3x42MONOi1.95i 25÷95 mm2 500 mm
3x42MONOi1.240i 70÷240 mm2 500 mm
3x42MONOi1.300i 95÷300 mm2 500 mm
3x42MONOi1.400i 185÷400 mm2 550 mm
3x42MONOi1.630i 400÷630 mm2 550 mm
3x42MONOi1.1000i 630÷1000 mm2 550 mm
Additional Technical Data of Nexans 12-42 MONOi Indoor MV Heat-Shrink Terminations (3x12MONOi, 3x24MONOi, 3x36MONOi, 3x42MONOi) can be found on the table below. For more information, please advise the PDF File. Nexans 17JTS1 W
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Part No | Section |
|---|---|
| Part No3x12MONOi1.95i | Section25÷95 mm2 |
| Part No3x12MONOi1.240i | Section70÷240 mm2 |
| Part No3x12MONOi1.300i | Section95÷300 mm2 |
| Part No3x12MONOi1.400i | Section185÷400 mm2 |
| Part No3x12MONOi1.630i | Section400÷630 mm2 |
| Part No3x12MONOi1.1000i | Section630÷1000 mm2 |
| Part No3x12MONOi1.1200i | Section1000÷1200 mm2 |
| Part No3x24MONOi1.95i | Section25÷95 mm2 |
| Part No3x24MONOi1.240i | Section70÷240 mm2 |
| Part No3x24MONOi1.300i | Section95÷300 mm2 |
| Part No3x24MONOi1.400i | Section185÷400 mm2 |
| Part No3x24MONOi1.630i | Section400÷630 mm2 |
| Part No3x24MONOi1.1000i | Section630÷1000 mm2 |
| Part No3x24MONOi1.1200i | Section1000÷1200 mm2 |
| Part No3x36MONOi1.95i | Section25÷95 mm2 |
| Part No3x36MONOi1.240i | Section70÷240 mm2 |
| Part No3x36MONOi1.300i | Section95÷300 mm2 |
| Part No3x36MONOi1.400i | Section185÷400 mm2 |
| Part No3x36MONOi1.630i | Section400÷630 mm2 |
| Part No3x36MONOi1.1000i | Section630÷1000 mm2 |
| Part No3x36MONOi1.1200i | Section1000÷1200 mm2 |
| Part No3x42MONOi1.95i | Section25÷95 mm2 |
| Part No3x42MONOi1.240i | Section70÷240 mm2 |
| Part No3x42MONOi1.300i | Section95÷300 mm2 |
| Part No3x42MONOi1.400i | Section185÷400 mm2 |
| Part No3x42MONOi1.630i | Section400÷630 mm2 |
| Part No3x42MONOi1.1000i | Section630÷1000 mm2 |
| Part No3x42MONOi1.1200i | Section1000÷1200 mm2 |
| Type | Max Voltage |
| Type3x12MONOi1.95i | Max Voltage 12 kV |
| Type3x12MONOi1.240i | Max Voltage 12 kV |
| Type 3x12MONOi1.300i | Max Voltage 12 kV |
| Type3x12MONOi1.400i | Max Voltage 12 kV |
| Type3x12MONOi1.630i | Max Voltage 12 kV |
| Type3x12MONOi1.1000i | Max Voltage 12 kV |
| Type 3x12MONOi1.1200i | Max Voltage 12 kV |
| Type3x24MONOi1.95i | Max Voltage 24 kV |
| Type3x24MONOi1.240i | Max Voltage 24 kV |
| Type3x24MONOi1.300i | Max Voltage 24 kV |
| Type3x24MONOi1.400i | Max Voltage 24 kV |
| Type3x24MONOi1.630i | Max Voltage 24 kV |
| Type 3x24MONOi1.1000i | Max Voltage 24 kV |
| Type 3x24MONOi1.1200i | Max Voltage 24 kV |
| Type3x36MONOi1.95i | Max Voltage 36 kV |
| Type3x36MONOi1.240i | Max Voltage 36 kV |
| Type 3x36MONOi1.300i | Max Voltage 36 kV |
| Type3x36MONOi1.400i | Max Voltage 36 kV |
| Type3x36MONOi1.630i | Max Voltage 36 kV |
| Type 3x36MONOi1.1000i | Max Voltage 36 kV |
| Type 3x36MONOi1.1200i | Max Voltage 36 kV |
| Type3x42MONOi1.95i | Max Voltage 42 kV |
| Type3x42MONOi1.240i | Max Voltage 42 kV |
| Type 3x42MONOi1.300i | Max Voltage 42 kV |
| Type3x42MONOi1.400i | Max Voltage 42 kV |
| Type3x42MONOi1.630i | Max Voltage 42 kV |
| Type 3x42MONOi1.1000i | Max Voltage 42 kV |
| Type 3x42MONOi1.1200i | Max Voltage 42 kV |
