Nexans 12-42 MONOe Outdoor MV Heat-Shrink Terminations are medium voltage heat-shrinkable outdoor terminations for single core polymeric cables with Copper Wire or Tape Screen. Up to 20,8/36 (42) kV.
Part Numbers:
3x12MONOe – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,
3x24MONOe – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,
3x36MONOe – 1.95i / 1.240i/ 1.300i/ 1.400i/ 1.630i/ 1.1000i/ 1.1200i,
The “MONOe” terminations are a single component solution, for single core polymeric cables.
The ‘’MONOe’’ outdoor terminations are designed for max system voltages of 42 kV.
Easy, quick to install, reducing installation time and errors.

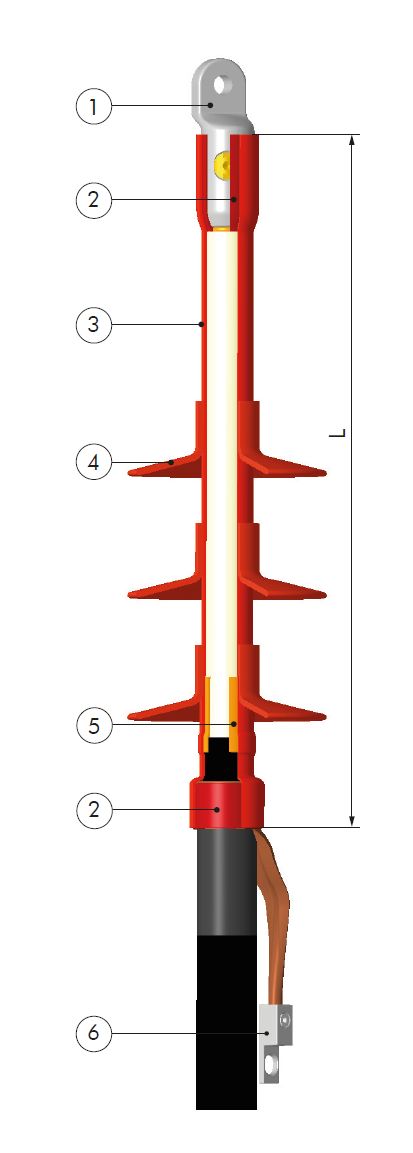

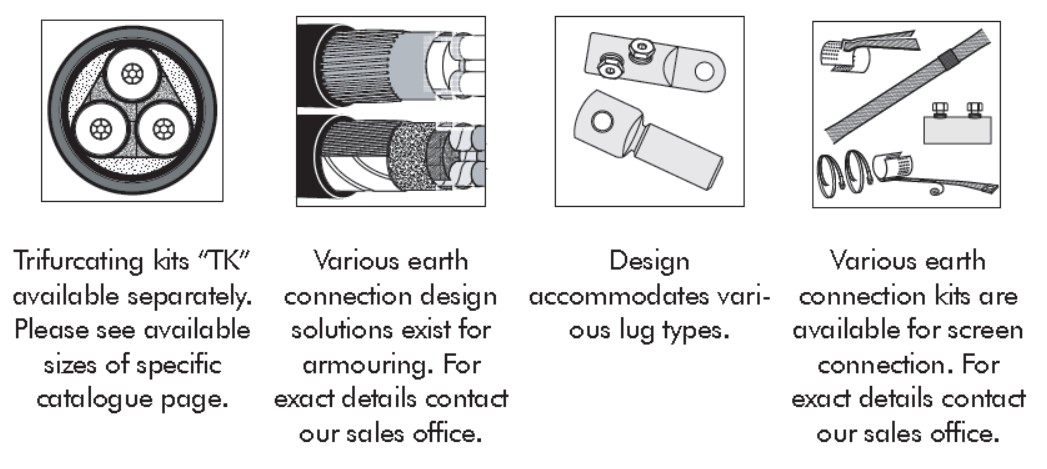

The kit consists of a stress control mastic strip, a co-extruded dual wall tube, red anti-tracking sealing mastic and anti-tracking rain sheds. Add on kit for armoured cables are available separately.
Each MONOe termination kit contains material to allow for 3 phase installation.
The following list enables the selection of Nexans MONOe heat shrink terminations for 12kV, 24kV, 36kV and 42kV voltage cables:
MAX VOLTAGE 12 kV – 3x12MONOe
Part No Section Core Length
3x12MONOe1.95i 25÷95 mm2 500 mm
3x12MONOe1.240i 70÷240 mm2 500 mm
3x12MONOe1.300i 95÷300 mm2 500 mm
3x12MONOe1.400i 185÷400 mm2 500 mm
3x12MONOe1.630i 400÷630 mm2 500 mm
3x12MONOe1.1000i 630÷1000 mm2 500 mm
3x12MONOe1.1200i 1000÷1200 mm2 500 mm
MAX VOLTAGE 24 kV – 3x24MONOe
Part No Section Core Length
3x24MONOe1.95i 25÷95 mm2 500 mm
3x24MONOe1.240i 70÷240 mm2 500 mm
3x24MONOe1.300i 95÷300 mm2 500 mm
3x24MONOe1.400i 185÷400 mm2 500 mm
3x24MONOe1.630i 400÷630 mm2 600 mm
3x24MONOe1.1000i 630÷1000 mm2 600 mm
3x24MONOe1.1200i 1000÷1200 mm2 600 mm
MAX VOLTAGE 36 kV – 3x36MONOe
Part No Section Core Length
3x36MONOe1.95i 25÷95 mm2 550 mm
3x36MONOe1.240i 70÷240 mm2 550 mm
3x36MONOe1.300i 95÷300 mm2 550 mm
3x36MONOe1.400i 185÷400 mm2 650 mm
3x36MONOe1.630i 400÷630 mm2 650 mm
3x36MONOe1.1000i 630÷1000 mm2 650 mm
3x36MONOe1.1200i 1000÷1200 mm2 650 mm
MAX VOLTAGE 42 kV – 3x42MONOe
Part No Section Core Length
3x42MONOe1.95i 25÷95 mm2 650 mm
3x42MONOe1.240i 70÷240 mm2 650 mm
3x42MONOe1.300i 95÷300 mm2 650 mm
3x42MONOe1.400i 185÷400 mm2 650 mm
3x42MONOe1.630i 400÷630 mm2 750 mm
3x42MONOe1.1000i 630÷1000 mm2 750 mm
Additional Technical Data of Nexans 12-42 MONOe Outdoor MV Heat-Shrink Terminations (3x12MONOe, 3x24MONOe, 3x36MONOe, 3x42MONOe) can be found on the table below. For more information, please advise the PDF File. Nexans 17JTS1 W
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Part No | Section |
|---|---|
| Part No3x12MONOe1.95i | Section25÷95 mm2 |
| Part No3x12MONOe1.240i | Section70÷240 mm2 |
| Part No3x12MONOe1.300i | Section95÷300 mm2 |
| Part No3x12MONOe1.400i | Section185÷400 mm2 |
| Part No3x12MONOe1.630i | Section400÷630 mm2 |
| Part No3x12MONOe1.1000i | Section630÷1000 mm2 |
| Part No3x12MONOe1.1200i | Section1000÷1200 mm2 |
| Part No3x24MONOe1.95i | Section25÷95 mm2 |
| Part No3x24MONOe1.240i | Section70÷240 mm2 |
| Part No3x24MONOe1.300i | Section95÷300 mm2 |
| Part No3x24MONOe1.400i | Section185÷400 mm2 |
| Part No3x24MONOe1.630i | Section400÷630 mm2 |
| Part No3x24MONOe1.1000i | Section630÷1000 mm2 |
| Part No3x24MONOe1.1200i | Section1000÷1200 mm2 |
| Part No3x36MONOe1.95i | Section25÷95 mm2 |
| Part No3x36MONOe1.240i | Section70÷240 mm2 |
| Part No3x36MONOe1.300i | Section95÷300 mm2 |
| Part No3x36MONOe1.400i | Section185÷400 mm2 |
| Part No3x36MONOe1.630i | Section400÷630 mm2 |
| Part No3x36MONOe1.1000i | Section630÷1000 mm2 |
| Part No3x36MONOe1.1200i | Section1000÷1200 mm2 |
| Part No3x42MONOe1.95i | Section25÷95 mm2 |
| Part No3x42MONOe1.240i | Section70÷240 mm2 |
| Part No3x42MONOe1.300i | Section95÷300 mm2 |
| Part No3x42MONOe1.400i | Section185÷400 mm2 |
| Part No3x42MONOe1.630i | Section400÷630 mm2 |
| Part No3x42MONOe1.1000i | Section630÷1000 mm2 |
| Part No3x42MONOe1.1200i | Section1000÷1200 mm2 |
| Type | Max Voltage |
| Type3x12MONOe1.95i | Max Voltage 12 kV |
| Type3x12MONOe1.240i | Max Voltage 12 kV |
| Type3x12MONOe1.300i | Max Voltage 12 kV |
| Type3x12MONOe1.400i | Max Voltage 12 kV |
| Type3x12MONOe1.630i | Max Voltage 12 kV |
| Type3x12MONOe1.1000i | Max Voltage 12 kV |
| Type3x12MONOe1.1200i | Max Voltage 12 kV |
| Type3x24MONOe1.95i | Max Voltage 24 kV |
| Type3x24MONOe1.240i | Max Voltage 24 kV |
| Type3x24MONOe1.300i | Max Voltage 24 kV |
| Type3x24MONOe1.400i | Max Voltage 24 kV |
| Type3x24MONOe1.630i | Max Voltage 24 kV |
| Type3x24MONOe1.1000i | Max Voltage 24 kV |
| Type3x24MONOe1.1200i | Max Voltage 24 kV |
| Type3x36MONOe1.95i | Max Voltage 36 kV |
| Type3x36MONOe1.240i | Max Voltage 36 kV |
| Type3x36MONOe1.30oi | Max Voltage 36 kV |
| Type3x36MONOe1.400i | Max Voltage 36 kV |
| Type3x36MONOe1.630i | Max Voltage 36 kV |
| Type3x36MONOe1.1000i | Max Voltage 36 kV |
| Type3x36MONOe1.1200i | Max Voltage 36 kV |
| Type3x42MONOe1.95i | Max Voltage 42 kV |
| Type3x42MONOe1.240i | Max Voltage 42 kV |
| Type3x42MONOe1.30oi | Max Voltage 42 kV |
| Type3x42MONOe1.400i | Max Voltage 42 kV |
| Type3x42MONOe1.630i | Max Voltage 42 kV |
| Type3x42MONOe1.1000i | Max Voltage 42 kV |
| Type3x42MONOe1.1200i | Max Voltage 42 kV |
