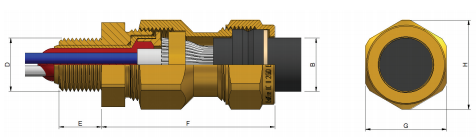

Prysmian BICON Barr-W Exd IIC Cable Gland (424TW Series) is a brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas. Suitable for use with steel wire armoured cables.
Part Numbers: 424TW-52, 424TW-53, 424TW-55, 424TW-56, 424TW-57, 424TW-59, 424TW-61, 424TW-63, 424TW-64, 424TW-02, 424TW-03, 424TW-05, 424TW-06, 424TW-07, 424TW-09, 424TW-11, 424TW-13, 424TW-14.
Prysmian 424TW Features
Brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas.
Suitable for circular, galvanised steel single wire armour cables with extruded polymeric oversheath and extruded or taped bedding.
Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant.
Provides mechanical cable retention and electrical continuity through the armour wire termination.
Suitable for most climatic conditions – weatherproof and waterproof.
Standard and Nickel plated versions available.
Full Installation Instructions supplied.
*Other NPT sizes available upon request.
Technical Data
Certified II 2GD, Ex e II & Ex d IIC under ATEX directive 94/9/EC.
Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1.
Certificate number Sira04ATEX1080X.
IECEx Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1.
Certificate number IECEx SIR 10.0072X
Service temperature range -60°C to +90°C.
Zones 0, 1 & 2 with Ex ia IIA , B & C equipment.
Zones 1 & 2 with Ex ib IIA , B & C equipment.
Zones 1 & 2 with Ex ib IIA , B & C equipment with any volume.
Zones 1 & 2 with Ex e II equipment.
Zones 1 & 2 with Ex p II equipment.
Zone 2 with Ex nA II equipment.
Zone 2 with Ex nR II equipment.
Zones 21 & 22 with Ex tD A21.
For more information on Prysmian BICON Barr-W Exd IIC Cable Gland (424TW Series), please consult the Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Design Reference (Standard) | Design Reference (Nickel Plated) |
|---|---|
| Design Reference (Standard)424TW-52 | Design Reference (Nickel Plated)424TW-52V |
| Design Reference (Standard)424TW-53 | Design Reference (Nickel Plated)424TW-53V |
| Design Reference (Standard)424TW-55 | Design Reference (Nickel Plated)424TW-55V |
| Design Reference (Standard)424TW-56 | Design Reference (Nickel Plated)424TW-56V |
| Design Reference (Standard)424TW-57 | Design Reference (Nickel Plated)424TW-57V |
| Design Reference (Standard)424TW-59 | Design Reference (Nickel Plated)424TW-59V |
| Design Reference (Standard)424TW-61 | Design Reference (Nickel Plated)424TW-61V |
| Design Reference (Standard)424TW-63 | Design Reference (Nickel Plated)424TW-63V |
| Design Reference (Standard)424TW-64 | Design Reference (Nickel Plated)424TW-64V |
| Design Reference (Standard)424TW-02 | Design Reference (Nickel Plated)424TW-02V |
| Design Reference (Standard)424TW-03 | Design Reference (Nickel Plated)424TW-03V |
| Design Reference (Standard)424TW-05 | Design Reference (Nickel Plated)424TW-05V |
| Design Reference (Standard)424TW-06 | Design Reference (Nickel Plated)424TW-06V |
| Design Reference (Standard)424TW-07 | Design Reference (Nickel Plated)424TW-07V |
| Design Reference (Standard)424TW-09 | Design Reference (Nickel Plated)424TW-09V |
| Design Reference (Standard)424TW-11 | Design Reference (Nickel Plated)424TW-11V |
| Design Reference (Standard)424TW-13 | Design Reference (Nickel Plated)424TW-13V |
| Design Reference (Standard)424TW-14 | Design Reference (Nickel Plated)424TW-14V |
