Elpress Crimp Dies for V1300, V1311-A and PVX1300 (Cu Lugs & C-Sleeves)

Product overview

Elpress Crimp Dies for V1300, V1311-A and PVX1300

Elpress Crimp Dies for V1300, V1311-A and PVX1300 (Cu Lugs & C-Sleeves). The B dies below are suitable for Cu Terminals (type KR/KRF and KS/KSF), together with both stranded, flexible and very flexible Cu Conductors (Class 2, 5 and 6) respectively according to IEC 60228. We recommend crimping multi-stranded (Class 5) Cu Conductors with the DUAL System. You can only use KRD/KSD and KRT/KST with stranded (Class 2) Cu Conductors.

Make sure to use dies exactly matching the terminals. crimp dies for Cu

Crimp Dies for KRF/ KSF

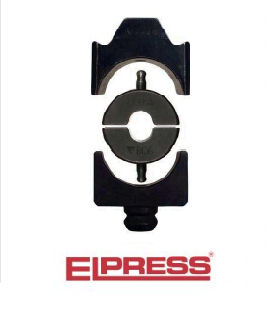

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The B Dies below are intended for Cu Terminals, type KR/KRF/KS/KSF, together with Cu conductors according to IEC 60228. For multi-stranded (Class 5) and very flexible (Class 6) Cu Conductors, crimping is recommended with the DUAL System. Use inner die holder V1316 and outer die holder V1318.

Elpress Part Numbers: B8, B9, B11, B13, B14,5, B17, B20, B22, B25. See table below for additional technical information.

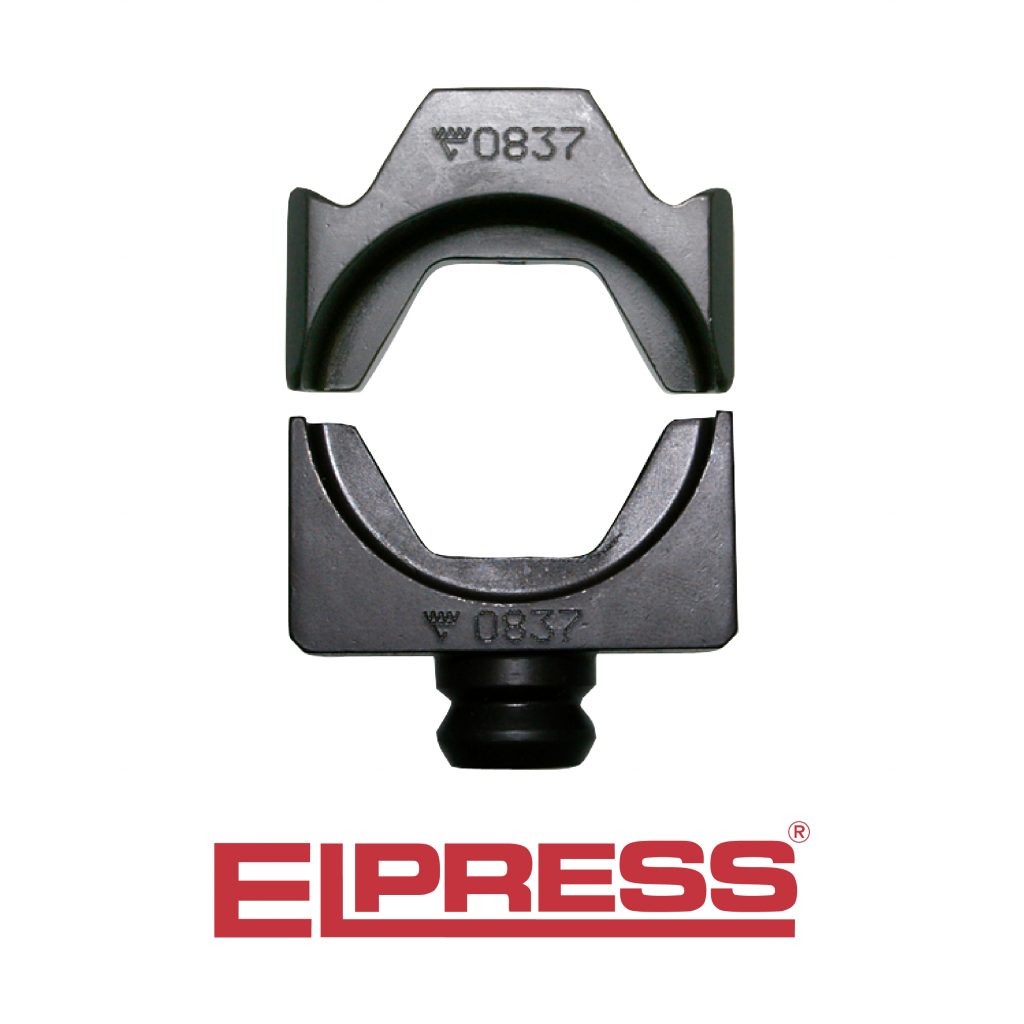

Crimp Dies for KRF/ KSF (integrated)

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The integrated B Dies below are intended for Cu Terminals, type KR/KRF/KS/KSF, together with Cu conductors according to IEC 60228. For multi-stranded (Class 5) and very flexible (Class 6) Cu Conductors, crimping is recommended with the DUAL System. Use without a die holder.

Elpress Part Numbers: 13B8, 13B9, 13B11, 13B13, 13B14,5, 13B17, 13B20, 13B22, 13B25, 13B27, 13B30, 13B32, 13B38. See table below for additional technical information.

Crimp Dies for KRD/ KSD

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The B Dies below are suitable for Cu Terminals, type KRD/KSD, together with Cu conductors Class 2 according to IEC 60228. Use inner die holder V1316 and outer die holder V1318.

Elpress Part Numbers: B8, B9, B11, B12, B14, B16, B19, B22. See table below for additional technical information.

Crimp Dies for KRD/ KSD (integrated)

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The integrated B Dies below are intended for Cu Terminals, type KRD/KSD, together with Cu conductors Class 2 according to IEC 60228. Use without a die holder.

Elpress Part Numbers: 13B8, 13B9, 13B11, 13B12, 13B14, 13B16, 13B19, 13B22, 13B25, 13B27, 13B30, 13B32. See table below for additional technical information.

Crimp Dies for KRT/ KST

For Cu Terminals, hexagonal crimping. Supplied in pairs. PVX1300 V1311-A dies

The B Dies below are intended for Cu Terminals, type KRT/KST, together with Cu conductors Class 2 according to IEC 60228. Use inner die holder V1316 and outer die holder V1318.

Elpress Part Numbers: B7, B8,5, B10, B12, B14, B16, B18, B19, B22, B24. See table below for additional technical information.

Crimp Dies for KRT/ KST (integrated)

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The integrated B Dies below are intended for Cu Terminals, type KRT/KST, together with Cu conductors Class 2 according to IEC 60228. Use without a die holder.

Elpress Part Numbers: 13B10, 13B12, 13B14, 13B16, 13B18, 13B19, 13B22, 13B24, 13B26, 13B30, 13B32. See table below for additional technical information.

Crimp Dies for C-sleeves

For Cu branching with C-sleeves, oval crimping. Unless otherwise stated, use inner die holder V1316 and outer die holder V1318.

Elpress Part Numbers: BC5, BC6, BC8-9, 13BC13, 13BC15. See table below for additional technical information.

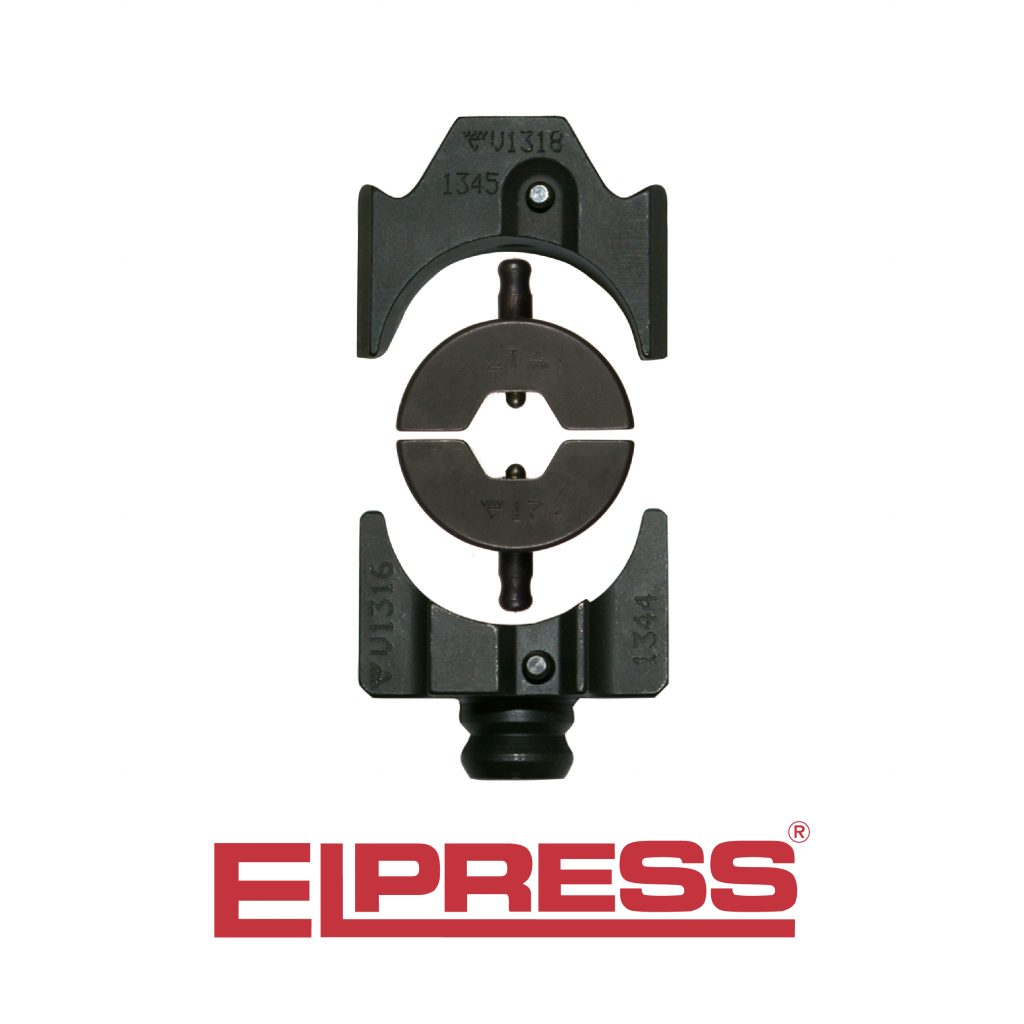

Dies Holders for the V1300 System

Inner Die Holder V1316 – Net Weight: 0,197

Outer Die Holder V1318 – Net Weight: 0,309

General Information

SYSTEM ELPRESS

System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.

HYDRAULIC CRIMP SYSTEMS

Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form  a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.

For more information on Elpress Crimp Dies for V1300, V1311-A and PVX1300 (Cu Lugs & C-Sleeves), consult PDF File or Technical Data Table below. crimp dies for Cu, Crimp Dies for V611

*Technical Data subject to change without notice.
