Filoform FiloSeal+ TPG

Product overview

Filoform FiloSeal+ TPG is a Telstra Approved Duct Sealing Kit in accordance with Telstra document ID TM00042A01.

– Suitable for sealing all cable scenarios in a TPG / Telstra 32mm duct.

– Protects against Gas, Water, Rodents and Termites.

– Flame retardant / High oxyden index – ISO 4589-2:1999

– Low smoke – ISO 5659-2:2012

Filoform Part Numbers: FiloSeal TPG Config A, B, C, D, E

Filoform FiloSeal+ TPG – Application Process

The Filoform duct sealing system FiloSeal+ TPG uses MD+ sealant which is easily applied from a skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

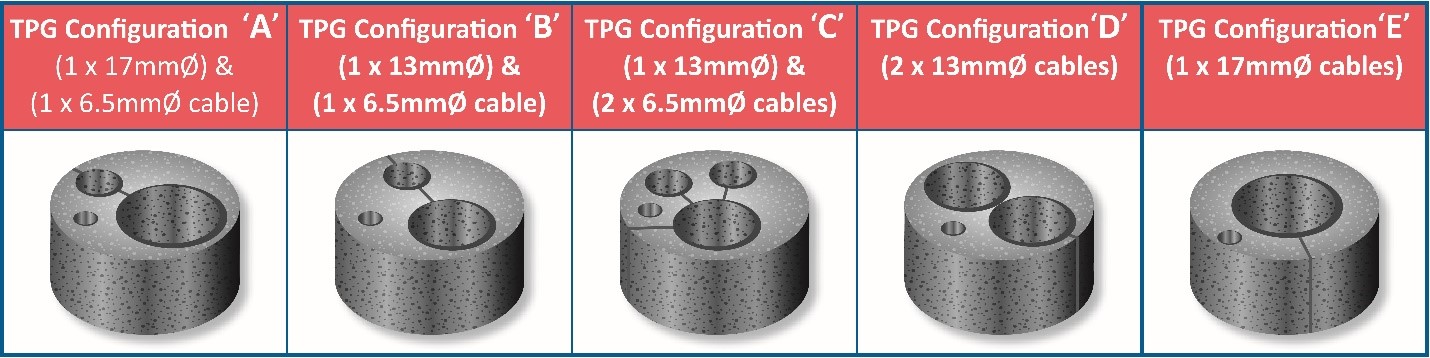

FiloSeal+ TPG is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses a uniquely cut foam pieces which positions neatly around each of the 5 combinations, that’s are used in the TPG & Telstra Network.

The unique design of the flame retardant foam pieces makes positioning and separation of the cables very simple while creating the prevention of ingress to water, gas, rodents, termites (Mastotermes darwiniensis), & flame retardance to the TPG & Telstra 32mm ducted network in accordance with Telstra document ID TM00042A01

FiloSeal+ TPG is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables as required.

Key Features

Telstra Approved Duct sealing kit in accordance with Telstra document ID TM00042A01

Flexible, one component, adhesive and sealing compound in a cartridge – (310ml)

High levels of Gas and Water tightness

Excellent adhesion

Re-enterable

Flame retardant

Resistant against Water, Alkaline, Chemical agents

Resistant to, Petrol, Diesel, Ethanol, ASTM oil, LPG & Many more.

Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)

Resistant to Rodents & termites (Mastotermes darwiniensis)

Non-corrosive

Solvent-free

Shock absorbing

Non-toxic, neutral and almost odorless

Also suitable for limiting the EX-zones during transitions (observe chemical resistance)

Suitable for any shaped duct /borehole/opening

Quick and easy installation

A complete kit for one duct

Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes

Over 25 years of operational experience

For Additional Information on Filoform FiloSeal+ TPG (Config A, B, C, D, E), please refer to the Technical Data Table below or download PDF File.
