Nexans AIN Indoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV) are reliable, high-performance indoor terminations for polymeric insulated MV cables with extruded or bonded conductive screens. These Nexans AIN Terminations deliver long-term electrical performance in controlled indoor environments. The range includes AIN 10, AIN 20, AIN 30 and AIN 36, covering voltages up to 42kV. Slip-on silicone housings make installation fast and easy without heat or special tools, and a few sizes cover most cable cross-sections. Compatible with three-core, copper wire screened or copper tape screened and armoured cables, this AIN Single Core system is a versatile, dependable indoor solution.
Part Numbers: AIN 10, AIN 20, AIN 30, AIN 36.

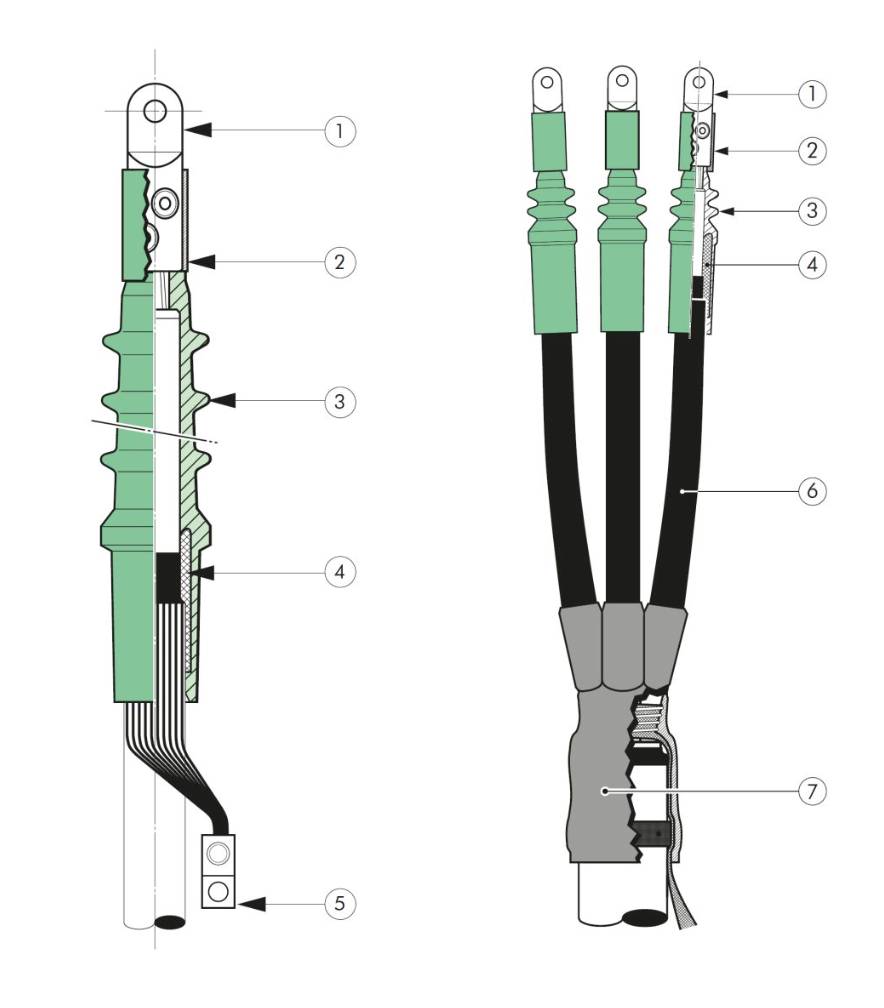

Nexans AIN – Kit Contents
x3 termination housings
x3 mechanical or compression cable lugs for the conductor
x3 mechanical or compression screen wire cable lugs
Installation instructions
Silicone grease
Assembly incidentals
AIN Indoor MV Terminations – Features
Voltage class: Up to 42kV
Application: Indoor use on polymeric insulated MV cables
Type: Slip-On Cold Shrink Termination
Material: High-quality silicone rubber
Standards: CENELEC HD 629.1
Quick installation without heat or special tools
Suitable for three-core, copper wire screened or copper tape screened and armoured cables
Below, you can easily select the Nexans AIN Indoor MV Slip-On Cold Shrink Terminations for each cable voltage:
MAX VOLTAGE 6-10 kV
Part No Section Core Length
3 x AIN 10 Gr. 1 25÷95 mm2 150 mm
3 x AIN 10 Gr. 2 120÷240 mm2 150 mm
3 x AIN 10 Gr. 3 300÷500 mm2 150 mm
3 x AIN 20 Gr. 4 630÷800 mm2 225 mm
3 x AIN 36 Gr. 5 1000 mm2 405 mm
3 x AIN 36 Gr. 6 1200 mm2 405 mm
iMAX VOLTAGE 12-20 kV
Part No Section Core Length
3 x AIN 20 Gr. 1 35÷70 mm2 225 mm
3 x AIN 20 Gr. 2 95÷240 mm2 225 mm
3 x AIN 20 Gr. 3 300÷500 mm2 225 mm
3 x AIN 20 Gr. 4 400÷630 mm2 225 mm
3 x AIN 36 Gr. 5 630÷800 mm2 405 mm
3 x AIN 36 Gr. 6 1000÷1200 mm2 405 mm
MAX VOLTAGE 18-30 kV
Part No Section Core Length
3 x AIN 30 Gr. 1 50÷70 mm2 300 mm
3 x AIN 30 Gr. 2 95÷240 mm2 300 mm
3 x AIN 30 Gr. 3 240÷400 mm2 300 mm
3 x AIN 36 Gr. 5 400÷630 mm2 405 mm
3 x AIN 36 Gr. 6 630÷1200 mm2 405 mm
MAX VOLTAGE 20.8-36 kV
Part No Section Core Length
On Request 50÷70 mm2 On Request
On Request 95÷120 mm2 On Request
3 x AIN 36 Gr. 4 150÷300 mm2 405 mm
3 x AIN 36 Gr. 5 400÷630 mm2 405 mm
For Additional Information on Nexans AIN Indoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV), please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Part No | Section |
|---|---|
| Part No3 x AIN 10 Gr. 1 | Section25÷95 mm2 |
| Part No3 x AIN 10 Gr. 2 | Section120÷240 mm2 |
| Part No3 x AIN 10 Gr. 3 | Section300÷500 mm2 |
| Part No3 x AIN 20 Gr. 4 | Section400÷630 mm2 |
| Part No3 x AIN 36 Gr. 5 | Section400÷630 mm2 |
| Part No3 x AIN 36 Gr. 6 | Section630÷1200 mm2 |
| Part No3 x AIN 20 Gr. 1 | Section35÷70 mm2 |
| Part No3 x AIN 20 Gr. 2 | Section95÷240 mm2 |
| Part No3 x AIN 20 Gr. 3 | Section300÷500 mm2 |
| Part No3 x AIN 30 Gr. 1 | Section50÷70 mm2 |
| Part No3 x AIN 30 Gr. 2 | Section95÷240 mm2 |
| Part No3 x AIN 30 Gr. 3 | Section240÷400 mm2 |
| Part NoOn Request | Section95÷120 mm2 |
| Part No3 x AIN 36 Gr. 4 | Section150÷300 mm2 |
| Ordering Part Number | Nominal Voltage Uo / U (kV) |
| Ordering Part Number3 x AIN 10 Gr. 1 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AIN 10 Gr. 2 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AIN 10 Gr. 3 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AIN 20 Gr. 4 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AIN 36 Gr. 5 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AIN 36 Gr. 6 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AIN 20 Gr. 1 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AIN 20 Gr. 2 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AIN 20 Gr. 3 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AIN 30 Gr. 1 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part Number3 x AIN 30 Gr. 2 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part Number3 x AIN 30 Gr. 3 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part NumberOn Request | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AIN 36 Gr. 4 | Nominal Voltage Uo / U (kV) 20.8/362 |
