Elpress HKS50 Cable Cutting Tool (up to Ø 50mm)

Product overview

Elpress HKS50 Cable Cutting Tool (up to Ø 50mm) is a cutting tool for steel and Cu/Al cable up to a diameter of 50 mm, with interchangeable blades. Supplied with universal blade UFE1 for Al/Cu, FeAl line, flexible steel line and anchoring cable. The cutting capacity of any cutting tool may vary due to conductor design, insulation thickness, hardness of materials, etc. Approved by Network Rail (PADS Certificate PA05/07403).

EAN code: 7393487043077

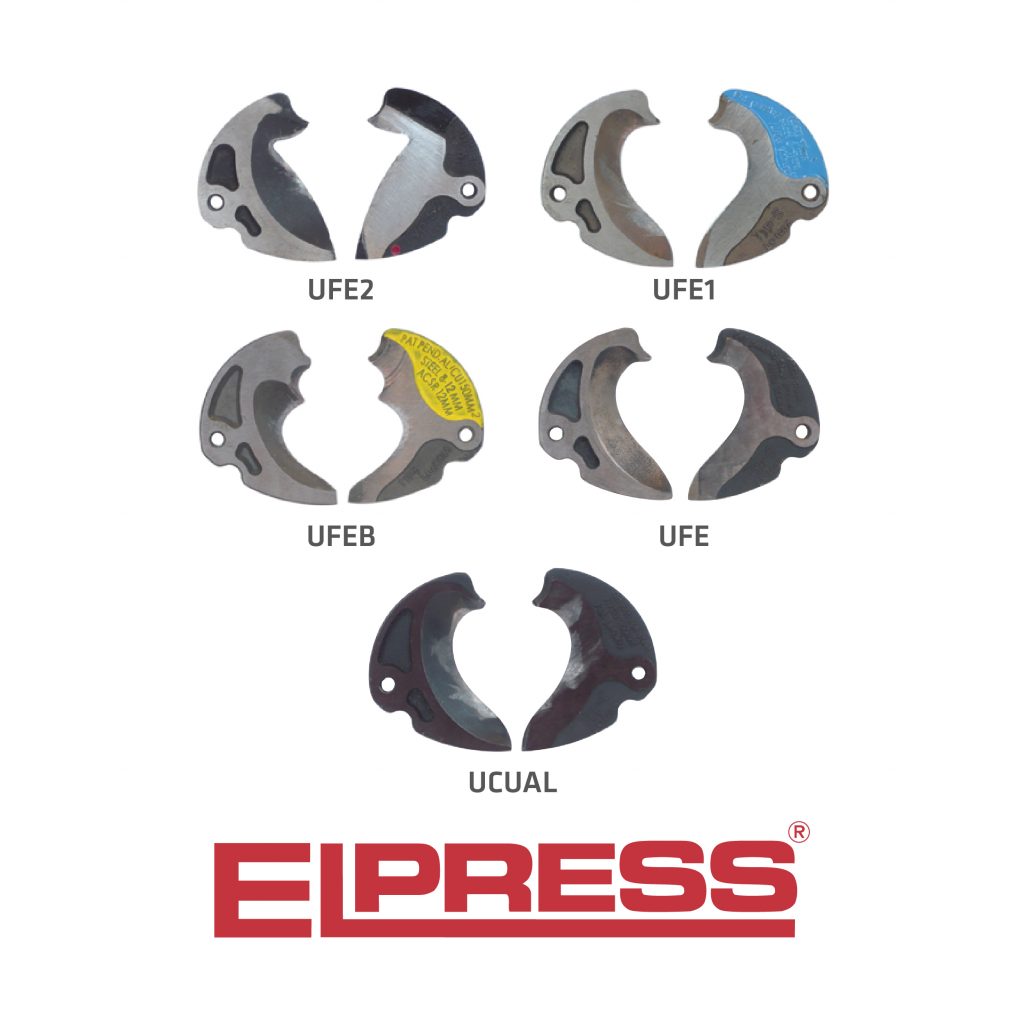

HKS50 BLADES: UFE2, UFE1, UFEB, UFE

Elpress HKS50 Features

Not for steel wires or for steel armoured cables

Scissor-motion for the best cut surface on the cut cable

Single-handed operation facilitates installation

Reliable and proven ratchet function

Move blades easily and quickly by releasing two screws

Clearly marked usage area on the blades

General Information

STRIPPING TOOLS

To strip insulation from cable there are the EMBLA, EMBLA RA, TOR and ODEN tools. They strip from approximately 0,02mm2 up to ∅ 40mm cable. The tools feature high precision, ergonomic adaptation, user friendliness and reliability.

CUTTING TOOLS

Tools are available in several variants for cutting Cu and Al cable up to approximately Ø 85mm. In addition to the simplest mechanical tools that cut cable up to Ø 20mm, there is a wide range of hydraulic tools for cutting cable up to approx 85mm.

The size of the conductor that the tools can handle mainly depends on the type of conductor to cut, whether it is a LV or MV cable and the class of the conductor. The hardness of the conductor’s material also affects the results. For example, the PKL54C is capable of cutting type Cu FKKJ 4 x 95 mm2 low voltage cable or Al AKKJ 4 x 240mm2 or MV cable type Al AXLJ 3 x 150mm2. The insulation takes some space on the medium voltage cable which is why it can be restrictive.

TOOLS FOR PEX CABLE

Finally, for the preparation of medium voltage cables, 12-24 kV and removal of conducting layers and PEX insulation, tools FBS1722 and FBS1723 are available.

For more information on Elpress HKS50 Cable Cutting Tool, consult PDF File or Technical Data Table below.

*Technical Data subject to change without notice.
