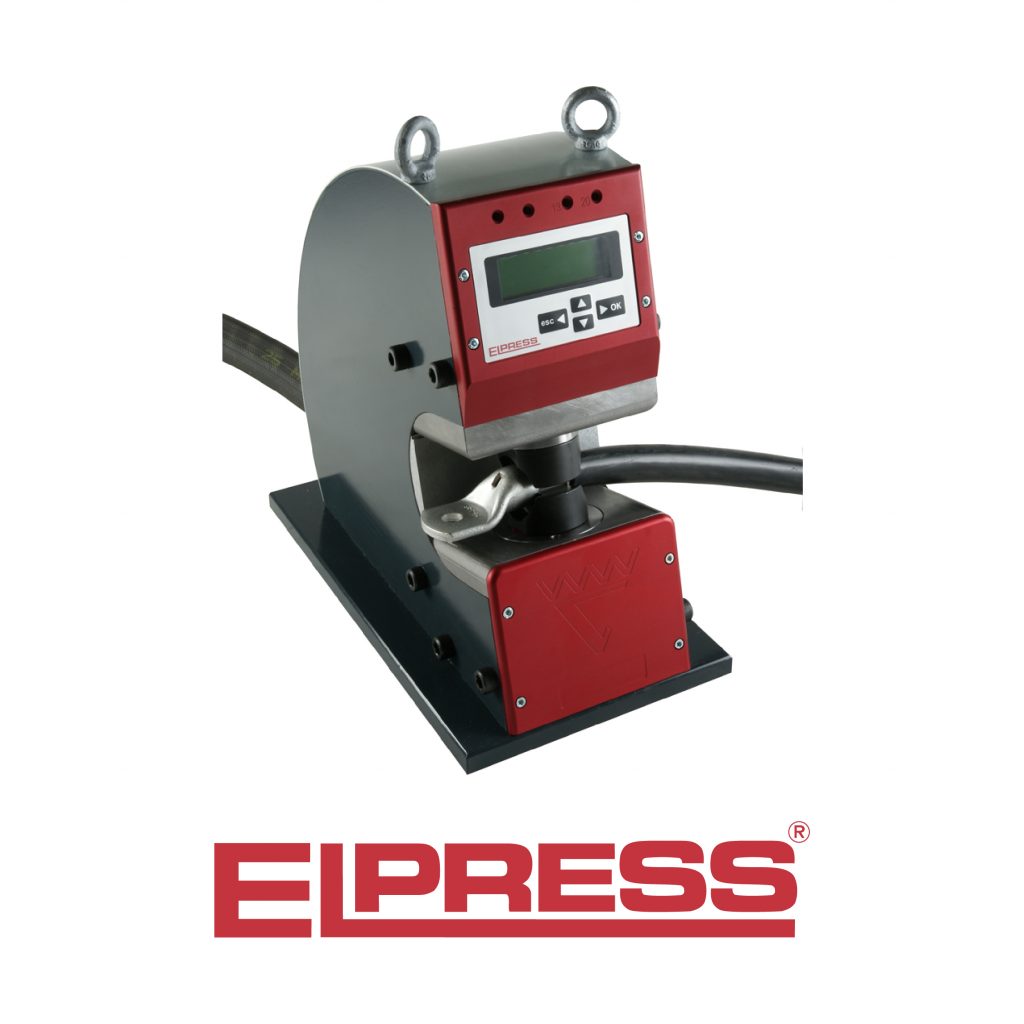

Elpress CS2500 Crimp Station for industrial crimping of KRF/KSF Terminals (10-300mm²) offers efficient production with greatest possible personal operator safety. Advanced intelligent features combined with simplicity make the product unique.
To be used with mains powered pump PS710D.
Elpress CS2500 Features
Elpress CS2500 Crimping Station is designed for continuous production of Cu Tube Terminals, 10-300mm²
Quick locking of the terminal using low force shortens the overall time for crimping
Automatic setting of crimp force up to 250kN, provides optimal service life for tools and accessories
Only one crimp necessary throughout the work area
Integrated patented Elpress DUAL System
Elpress hydraulic pump unit PS710D with advanced control monitoring and error reporting
Operated with a foot pedal
CE-approved, meets the requirements of the Safety of Machinery Directive

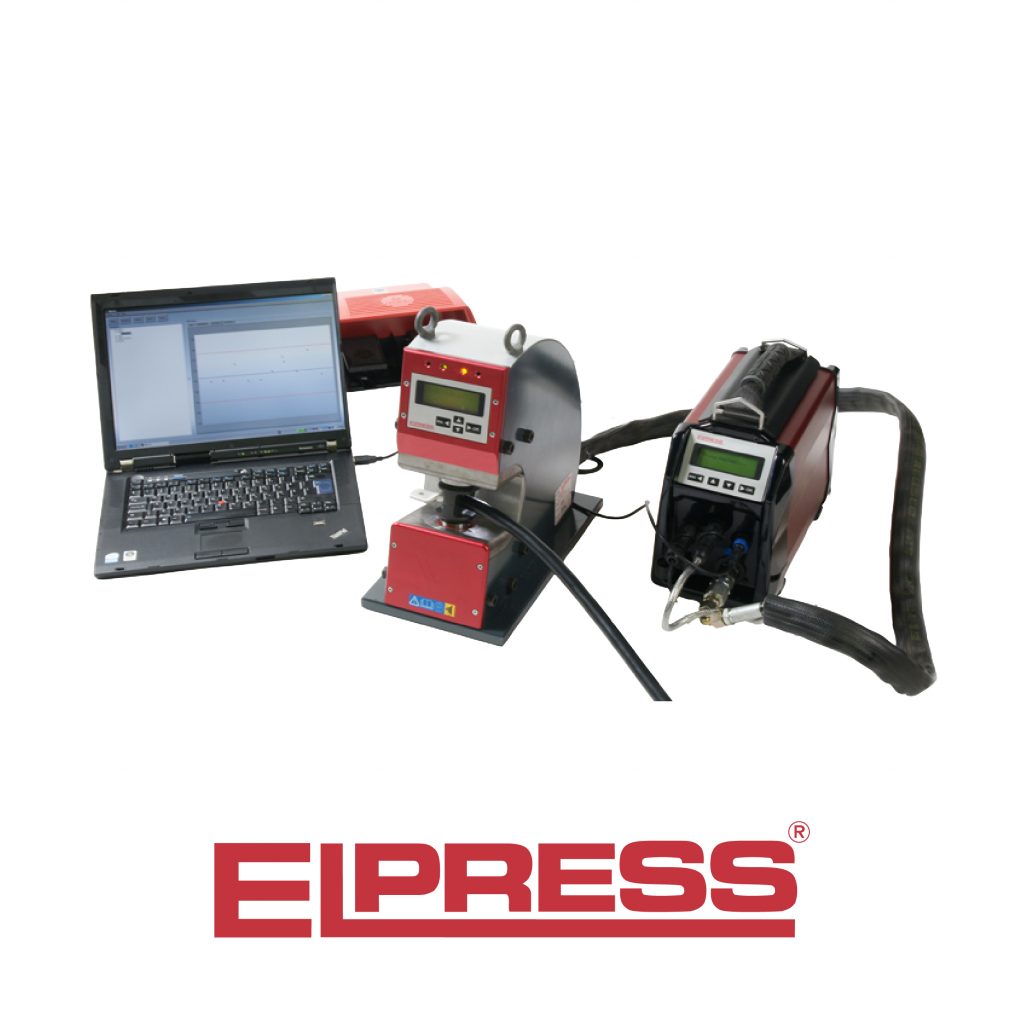

PC-software analyzer for analysis and report printout of crimps
110-240VAC 50-60Hz
Dimensions
Pump Unit: 390 x 225 x 225 mm – 12.3 kgs
Mains Unit: 390 x 225 x 140 mm – 8.6 kgs
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Prod. Name | Net Weight |
|---|---|
| Prod. NameElpress CS2500 | Net Weight59,5 kg |
| Dies Supplied in pairs, incorporating Elpress DUAL System. For crimping of Cu Terminals and Conductors of type KR/ KRF/ KS/ KSF, no Die Holders are required. | |
| mm2 | Dies |
| mm210 | Dies13DCB8 |
| mm216 | Dies13DCB9 |
| mm225 | Dies13DCB11 |
| mm235 | Dies13DCB13 |
| mm250 | Dies13DCB14.5 |
| mm270 | Dies13DCB17 |
| mm295 | Dies13DCB20 |
| mm2120 | Dies20DCB22 |
| mm2150 | Dies20DCB25 |
| mm2185 | Dies20DCB27 |
| mm2240 | Dies20DCB30 |
| mm2300 | Dies20DCB32 |
