Crimping Systems
Elpress Un-Insulated Connector Blocks for Receptacles (400V/ 18A) ranging between 0.5 and 6mm².
Part Numbers: Elpress 404-1, 405-3, 401-12.
Used together with flat pin sleeves
Material PVC transparent
Max voltage 400 V
Max current 18 A
SYSTEM ELPRESS
System Elpress consists of Terminals and Tools designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and the achievement of a secure connection through the proper handling of our products. By using Elpress Cu-Connection elements together with one of Elpress Crimp Systems one obtains a connection tested according to the requirements of IEC 61238:1.
UN-INSULATED TERMINALS
Elpress Through Connectors, Ring, Pipe, Fork and Pin terminals produced from high quality Copper 99.95%. The Receptacles and Sockets made of brass. All terminals then get electro-tin plating for maximum corrosion protection. Terminals made of copper bands have a brazed soldered neck, which means that user can crimp them in any direction.
LABELLING
Elpress uninsulated terminals have a clear marking with logotype, area and any screw diameter to facilitate work and checkability.
UL-APPROVED TERMINALS
KR/ KS, KRF/ KRS, KRFS, KRT/ KST UL-approved in accordance with file no E205350. UL-certified products delivered with UL marking on the label including the UL file number and/ or certification code for control by an UL inspector. You can download the certificate at UL Product IQ.
For more information on Elpress Un-Insulated Connector Blocks for Receptacles (400V/ 18A) (404-1, 405-3, 401-12), see PDF File below.
*Technical Data subject to change without notice.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Figure | Cat. No. |
|---|---|

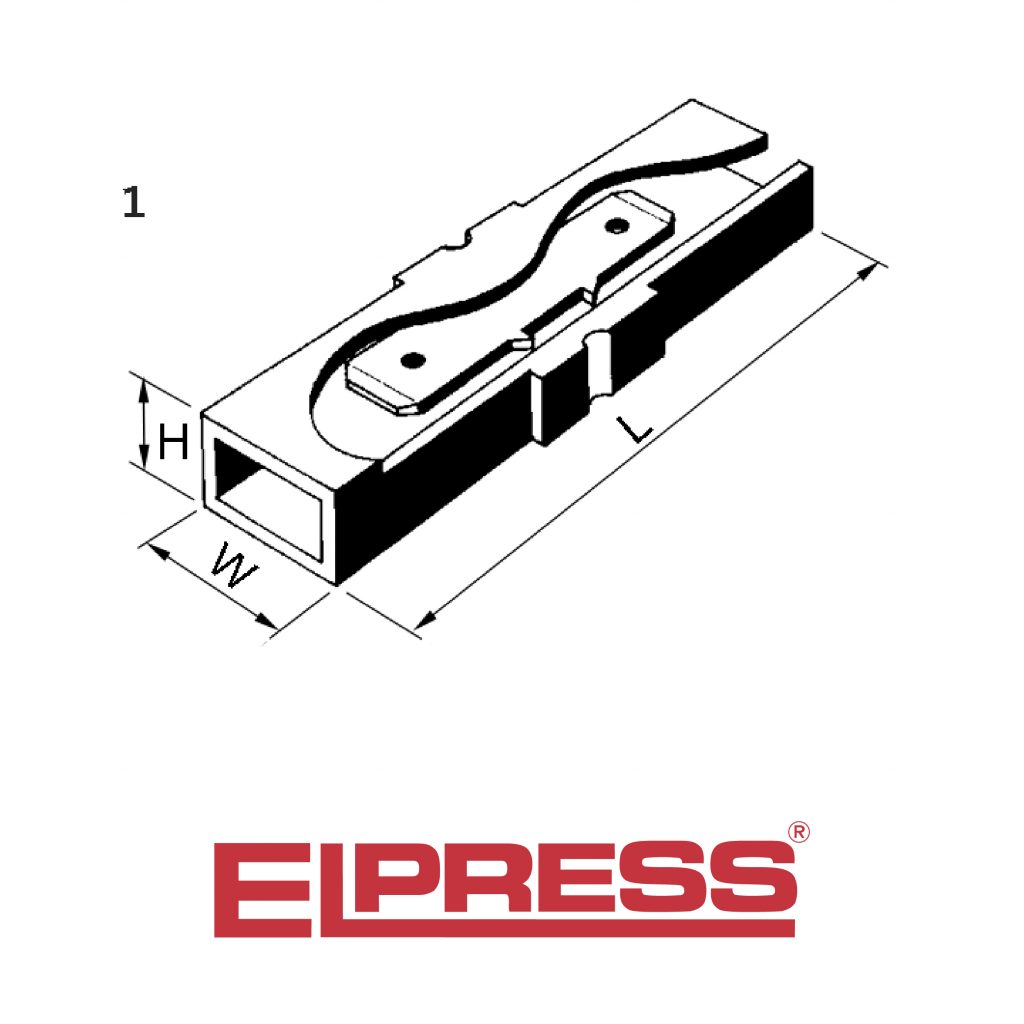

| Figure1 | Cat. No.404-1 |
| Figure20 | Cat. No.405-3 |
| Figure3 | Cat. No.401-12 |
