Filoform FiloSeal+ Duct Seal

Product overview

Filoform FiloSeal+ Duct Sealing System is a universal solution for sealing cables and pipes in ducts or bore holes. Suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

Filoform Part Numbers: FiloSeal+ 125mm (282580), FiloSeal+ 200mm (282590)

Telstra / TPG Approved Duct sealing kit in accordance with Telstra document ID TM00042A01

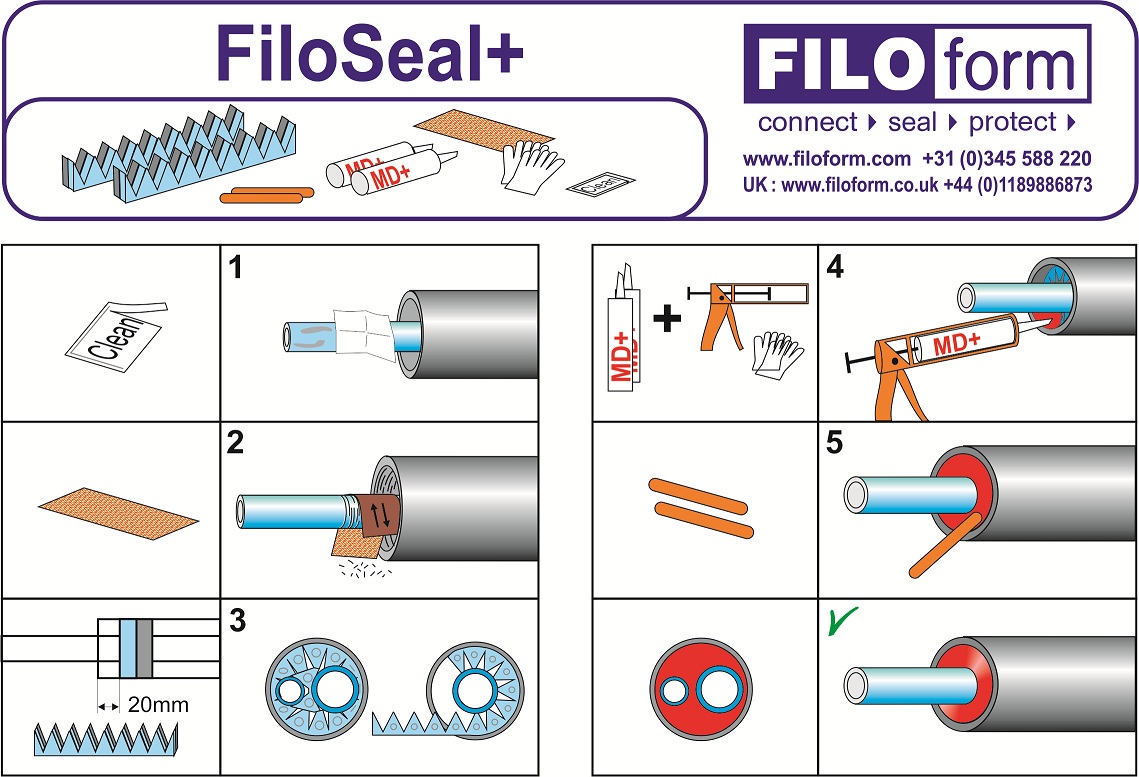

Application Process

The Filoform duct sealing system FiloSeal+ uses MD+ sealant which is easily applied from a standard skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

FiloSeal+ is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses a uniquely shaped foam piece which positions neatly around the cables or pipes in the duct.

The unique design of the tri-flexible foam makes positioning and separation of the cables very simple while also providing a backing for the MD+ to be applied on.

This seal is easily installed in vertical scenarios while providing the added security of ensuring no loss of components down the duct.

FiloSeal+ is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

Filoform FiloSeal+ Duct Seal – Key Features

Flexible, one component, adhesive and sealing compound in a cartridge – (310ml)

Kits are complete with backing and mastic to fill an empty duct of the quoted kit size

High levels of Gas and Water tightness

Excellent adhesion

Shows Fire resistance properties

Resistant against Water, Alkaline, Chemical agents

Resistant to, Petrol, Diesel, Ethanol, ASTM oil, LPG & Many more.

Suitable for sealing underground cable ducts set out within the APEA ‘Blue Book’

Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)

Non-corrosive

Solvent-free

Shock absorbing

Non-toxic, neutral and almost odourless

Also suitable for limiting the EX-zones during transitions (observe chemical resistance)

Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)

WIMES Compliant, (3.02 2013 clause 6.4.3.2 d)

Suitable for any shaped duct /borehole/opening

Quick and easy installation

A complete kit for one duct

Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes

Suitable for renovations, can be installed retrospectively

Over 25 years of operational experience

Filoform FiloSeal+ Duct Seal – Approvals

Thames Water Approved

Welsh Water Approved

Severn Trent Water Approved

Southern Water Approved

Anglian Water Approved

South East Water Approved

Yorkshire Water Approved

Bournemouth Water Approved

Scottish Water Approved

For Additional Information on Filoform FiloSeal+ 125mm (282580) and 200mm (282590), please refer to the Technical Data Table below or download PDF File.
