Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV)
Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV) are reliable, weather-resistant outdoor terminations for polymeric insulated MV cables with extruded or bonded conductive screens. These Nexans AFN Terminations provide long-term electrical performance in demanding environments. The range includes AFN 10, AFN 20, AFN 30 and AFN 36, covering voltages up to 42kV. Slip-on silicone housings make installation quick and easy without heat or special tools, and a few sizes cover most cable cross-sections. Compatible with three-core, copper wire screened or copper tape screened and armoured cables, this AFN Single Core system is a versatile, dependable outdoor solution.
Part Numbers: AFN 10, AFN 20, AFN 30, AFN 36.

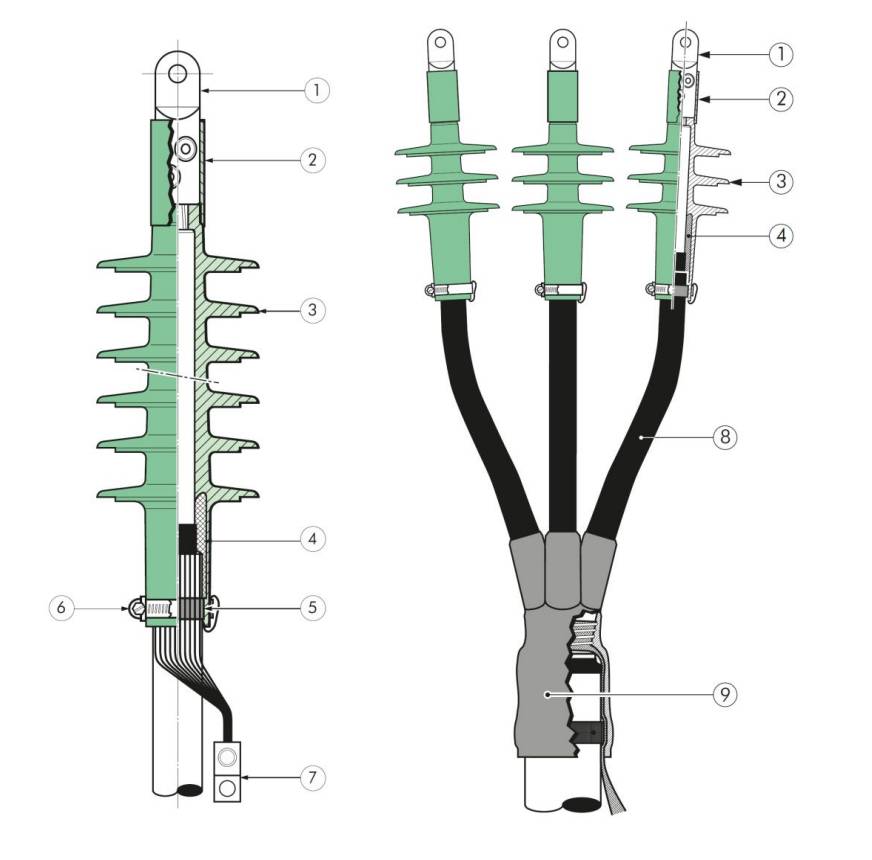

Nexans AFN – Kit Contents
x3 termination housings
x3 mechanical or compression cable lugs for the conductor
x3 mechanical or compression screen wire cable lugs
Installation instructions
Silicone grease
Assembly incidentals
AFN Outdoor MV Terminations – Features
Voltage class: Up to 42kV
Application: Outdoor use on polymeric insulated MV cables
Type: Slip-On Cold Shrink Termination
Material: High-quality silicone rubber
Standards: CENELEC HD 629.1
Quick installation without heat or special tools
Suitable for three-core, copper wire screened or copper tape screened and armoured cables
Below, you can easily select the Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations for each cable voltage:
MAX VOLTAGE 6-10 kV
Part No Section Core Length
3 x AFN 10 Gr. 1 25÷95 mm2 150 mm
3 x AFN 10 Gr. 2 120÷240 mm2 150 mm
3 x AFN 10 Gr. 3 300÷500 mm2 150 mm
3 x AFN 20 Gr. 4 630÷800 mm2 225 mm
3 x AFN 36 Gr. 5 1000 mm2 405 mm
3 x AFN 36 Gr. 6 1200 mm2 405 mm
MAX VOLTAGE 12-20 kV
Part No Section Core Length
3 x AFN 20 Gr. 1 35÷70 mm2 240 mm
3 x AFN 20 Gr. 2 95÷240 mm2 240 mm
3 x AFN 20 Gr. 3 300÷500 mm2 240 mm
3 x AFN 20 Gr. 4 400÷630 mm2 240 mm
3 x AFN 36 Gr. 5 630÷800 mm2 405 mm
3 x AFN 36 Gr. 6 1000÷1200 mm2 405 mm
MAX VOLTAGE 18-30 kV
Part No Section Core Length
3 x AFN 30 Gr. 1 50÷70 mm2 300 mm
3 x AFN 30 Gr. 2 95÷240 mm2 300 mm
3 x AFN 30 Gr. 3 240÷400 mm2 300 mm
3 x AFN 36 Gr. 5 400÷630 mm2 405 mm
3 x AFN 36 Gr. 6 630÷1200 mm2 405 mm
MAX VOLTAGE 20.8-36 kV
Part No Section Core Length
3 x AFN 30 Gr. 12 50÷70 mm3 300 mm
3 x AFN 30 Gr. 22 95÷240 mm3 300 mm
3 x AFN 30 Gr. 33 240÷400 mm2 300 mm
3 x AFN 36 Gr. 5 400÷630 mm2 405 mm
For Additional Information on Nexans AFN Outdoor MV Slip-On Cold Shrink Terminations (Single Core | 42kV), please consult the Technical Data Table or PDF Files below.
*Technical Data subject to change without notice.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Part No | Section |
|---|---|
| Part No3 x AFN 10 Gr. 1 | Section25÷95 mm2 |
| Part No3 x AFN 10 Gr. 2 | Section120÷240 mm2 |
| Part No3 x AFN 10 Gr. 3 | Section300÷500 mm2 |
| Part No3 x AFN 20 Gr. 4 | Section400÷630 mm2 |
| Part No3 x AFN 36 Gr. 5 | Section400÷630 mm2 |
| Part No3 x AFN 36 Gr. 6 | Section630÷1200 mm2 |
| Part No3 x AFN 20 Gr. 1 | Section35÷70 mm2 |
| Part No3 x AFN 20 Gr. 2 | Section95÷240 mm2 |
| Part No3 x AFN 20 Gr. 3 | Section300÷500 mm2 |
| Part No3 x AFN 30 Gr. 1 | Section50÷70 mm2 |
| Part No3 x AFN 30 Gr. 2 | Section95÷240 mm2 |
| Part No3 x AFN 30 Gr. 3 | Section240÷400 mm2 |
| Part No3 x AFN 30 Gr. 12 | Section50÷70 mm3 |
| Part No3 x AFN 30 Gr. 22 | Section95÷240 mm3 |
| Part No3 x AFN 30 Gr. 33 | Section240÷400 mm2 |
| Ordering Part Number | Nominal Voltage Uo / U (kV) |
| Ordering Part Number3 x AFN 10 Gr. 1 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AFN 10 Gr. 2 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AFN 10 Gr. 3 | Nominal Voltage Uo / U (kV) 6/10 |
| Ordering Part Number3 x AFN 20 Gr. 4 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AFN 36 Gr. 5 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AFN 36 Gr. 6 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AFN 20 Gr. 1 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AFN 20 Gr. 2 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AFN 20 Gr. 3 | Nominal Voltage Uo / U (kV) 12/20 |
| Ordering Part Number3 x AFN 30 Gr. 1 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part Number3 x AFN 30 Gr. 2 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part Number3 x AFN 30 Gr. 3 | Nominal Voltage Uo / U (kV) 18/30 |
| Ordering Part Number3 x AFN 30 Gr. 12 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AFN 30 Gr. 22 | Nominal Voltage Uo / U (kV) 20.8/362 |
| Ordering Part Number3 x AFN 30 Gr. 33 | Nominal Voltage Uo / U (kV) 20.8/362 |
