Elpress Accessories (Punch and Matrix V1320) for crimping Al with tool types V1300, V1311-A and PVX1300. Punch and Matrix for V1300, V1311-A & PVX1300 are Network Rail Approved.
Punch/ Matrix Holder: V1320
Punches for Indent Crimping: 13P37D, P13D, P20D, P25D, P32D, P36-40-44D.
Matrices for Indent Crimping:13P37M, 13P32M, P13M, P20M, P25M, P36M.
Punches for Pre-rounding: R6MR, R7MR, R8MR, R9MR, R12MR, R13MR, R15MR, R16MR, 13R18MR, 13R20MR.
Matrices for Pre-rounding: 13R12DR, 13R13DR, 13R15DR, 13R16DR, 13R18DR, 13R20DR.
Elpress Accessories for Crimping Al

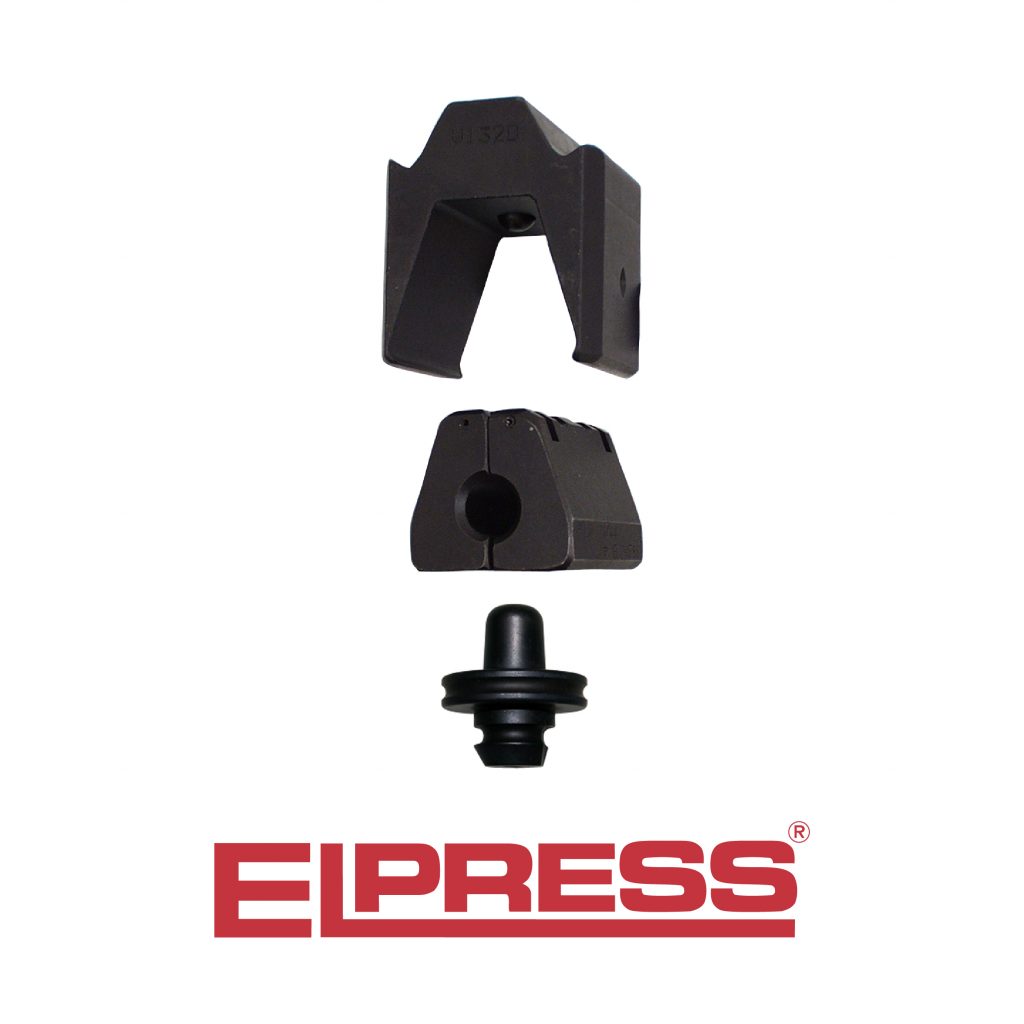

Suitable for Al-Terminals, indent crimping. For the indent crimping of Al Terminals, two crimps are always required.
For 16-150mm2 (185 solid) use Matrix Holder V1320 (below).
Stranded Al Solid Al Matrix Punch No of
Crimps Matrix
Holder Punch
Holder
16-25mm2 16-35mm2 P13M P13D 2 Required Not Required
35-70mm2 50-95mm2 P20M P20D 2 Required Not Required
95-150mm2 120-185mm2 P25M P25D 2 Required Not Required
185-240mm2 240mm2 13P32M P32D 2 Not Required Not Required
*Note: Matrix with safety line. For Al Terminals, type AKKxxxB/ AKSxxxB and sleeves type ASxxxB.

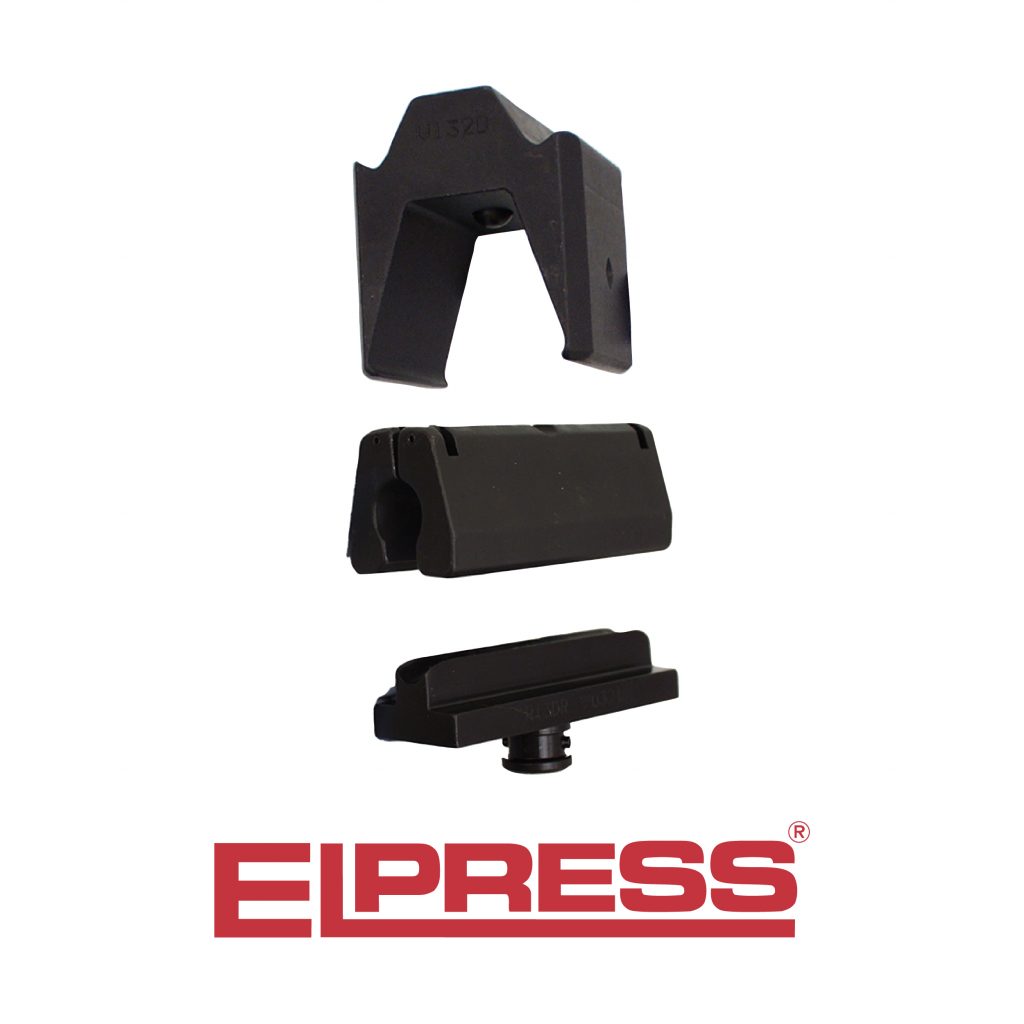

For Al Conductors, pre-rounding. Use Matrix Holder V1320 (below).
Stranded Al Solid Al Matrix Punch No of
Crimps Matrix
Holder Punch
Holder
16 mm2 16 (+25) mm2 R6MR 13R6DR 1 Required Not Required
25 mm2 35 mm2 R7MR 13R7DR 1 Required Not Required
35 mm2 50 mm2 R8MR 13R8DR 1 Required Not Required
50 mm2 70 mm2 R9MR 13R9DR 1 Required Not Required
70 mm2 95 mm2 R12MR 13R12DR 1 Required Not Required
95 mm2 120 mm2 R13MR 13R13DR 1 Required Not Required
120 mm2 150 mm2 R15MR 13R15DR 1 Required Not Required
150 mm2 185 mm2 R16MR 13R16DR 1 Required Not Required
185 mm2 240 mm2 13R18MR 13R18DR 1 Required Not Required
240 mm2 – 13R20MR 13R20DR 1 Required Not Required
Matrix Holder V1320 for non-integrated matrix. Punch Holder not required for the 1300 System.
Stranded Al Solid Al Name Net Weight
16-150 mm2 16-185 mm2 V1320 0,367 kg
SYSTEM ELPRESS
System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.
HYDRAULIC CRIMP SYSTEMS
Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.
For more information on Elpress Accessories (Punch and Matrix) for crimping Al with tool types V1300, V1311-A and PVX1300, consult PDF File or Technical Data Table below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Stranded Al | Solid Al |
|---|---|
| Stranded Al16-25mm2 | Solid Al16-35mm2 |
| Stranded Al35-70mm2 | Solid Al50-95mm2 |
| Stranded Al95-150mm2 | Solid Al120-185mm2 |
| Stranded Al185-240mm2 | Solid Al240mm2 |
| Stranded Al300-400mm2* | Solid Al* |
| Stranded Al16 mm2 | Solid Al16 (+25) mm2 |
| Stranded Al25 mm2 | Solid Al35 mm2 |
| Stranded Al35 mm2 | Solid Al50 mm2 |
| Stranded Al50 mm2 | Solid Al70 mm2 |
| Stranded Al70 mm2 | Solid Al95 mm2 |
| Stranded Al95 mm2 | Solid Al120 mm2 |
| Stranded Al120 mm2 | Solid Al150 mm2 |
| Stranded Al150 mm2 | Solid Al185 mm2 |
| Stranded Al185 mm2 | Solid Al240 mm2 |
| Stranded Al240 mm2 | Solid Al |
| Stranded Al16-150 mm2 | Solid Al16-185 mm2 |
| Punch and Matrix for Indent Crimping For Al-Terminals, indent crimping. For the indent crimping of Al Terminals, two crimps are always required. For 16-150mm2 (185 solid) use Matrix Holder V1320 (below). | |
| Punch and Matrix for Pre-Rounding For Al Conductors, pre-rounding. Use Matrix Holder V1320 (below). | |
| Matrix Holder for the 1300 System Matrix Holder for non-integrated matrix. Punch Holder not required for the 1300 System. |
