Elpress TS1300 Table Stand for Crimping Heads

Product overview

Elpress TS1300 Table Stand for Crimping Heads is a stand that can be used with crimp heads DV1300C2 or V1300C2-AL (Part Nos Available: TS1300, TS1300CU, TS1300AL). Designed for operators with frequent use of the C2 crimp head. With the table stand you get a stable, safe and easy use of the C2 head. Includes adjustable stop. Ideal for OEM manufacturers, cable harness manufacturers or companies who have a large number of crimps to perform.

EAN code: 7393487086654

TS1300: 10-400 mm2 | 14,1 kgs | 190 x 100 x 215 mm

TS1300CU: 10-400 mm2 | 18,7 kgs | 190 x 100 x 312 mm

TS1300AL: 16-400 mm2 | 20,9 kgs | 190 x 100 x 330 mm

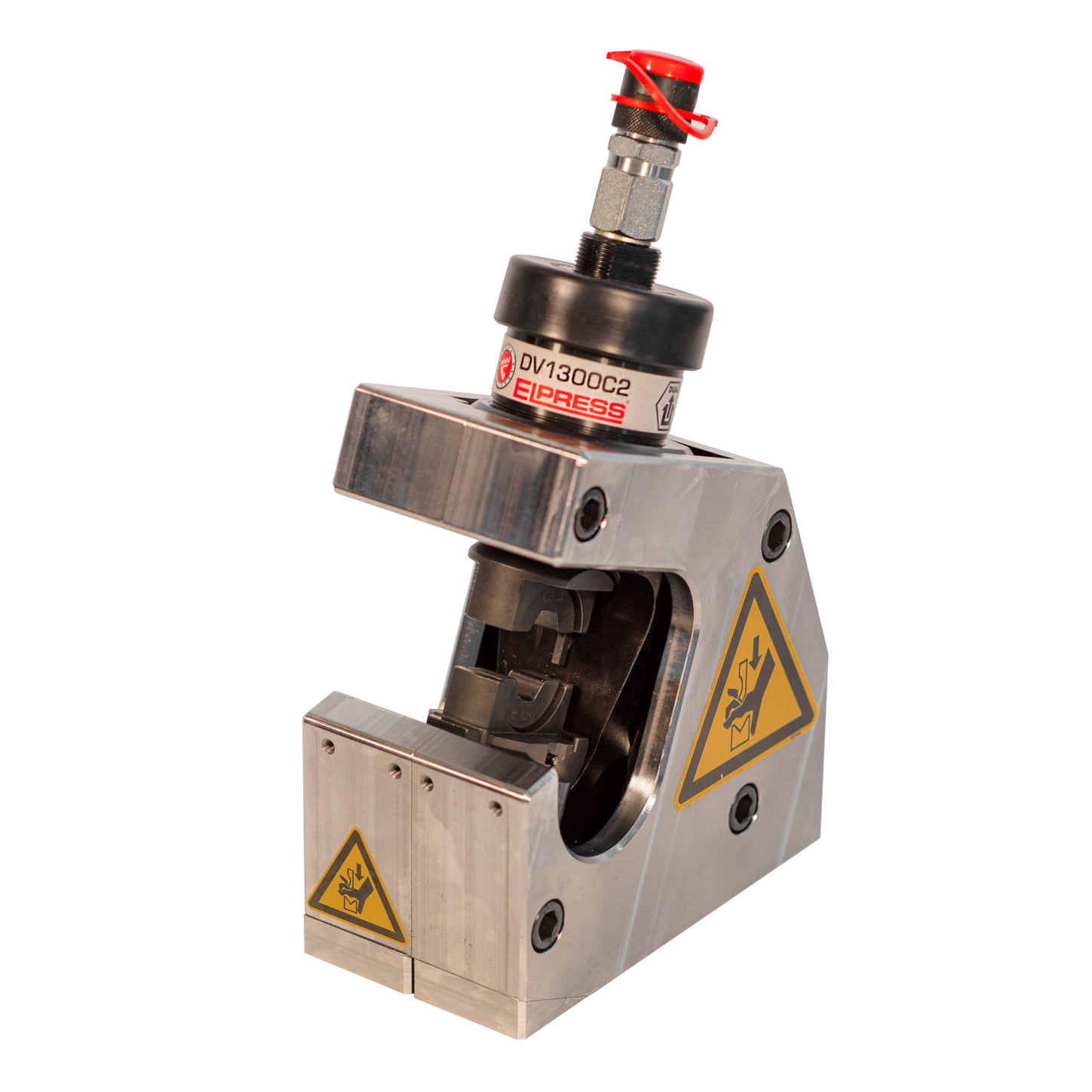

ELPRESS TS1300 CU

Table stand mounted together with the crimp head DV1300C2 for crimping copper 10-400 mm².

Elpress crimp head should be used with PS710.

Adjustable stop included.

ELPRESS TS1300 AL

Table stand mounted together with the crimp head V1300C2-AL for crimping aluminum 16-400 mm²*. Spring loaded pistons releasing the sleeve after crimping.

Elpress crimp head – used with PS710.

Adjustable stop included.

* Applies to round conductors.

General Information

SYSTEM ELPRESS

System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.

HYDRAULIC CRIMP SYSTEMS

Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form  a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.

For more information on Elpress TS1300 Table Stand for Crimping Heads (TS1300, TS1300CU, TS1300AL), consult PDF File or Technical Data Table below.

*Technical Data subject to change without notice.
