ITW Spit Pulsa Accessories are the accessories associated with ITW Spit Pulsa 800E Cordless Gas Nailer and ITW Spit Pulsa 800P Cordless Gas Nailer. These include Cleaning Kits, Pin Guides, Batteries, Battery Chargers and Extension/ Lifting Poles for Pulsa 800 Gas Nailers. A big range of ITW Spit Pulsa Consumables (Pins, Clips & Fixings) are available.
Part Numbers: 013690, 115251, 014623, 014640, 014641, 014642, 018483, 018484, 018820, 018849, 011204
ITW Spit Pulsa 800E Cordless Gas Nailer (018350) is a gas nailing & fastening tool, perfect for mechanical & electrical fixings. It is the fastest, most efficient system for fixing M&E fastening systems. Improve your productivity – work faster than ever before.
Low actuation force – work faster, easier and less fatigued especially overhead
Slim and streamlined – best line of sight and access to tight locations
Tool free depth of drive – perfect finishing with all accessories
LED display showing remaining fuel and battery power
Start & Go®allowing 3000 shots per charge
Improved dust protection – reduces the need for servicing and health and safety risks
Reduced Hand Arm Vibration (H.A.V) – low expose levels and minimal health and safety risk
ITW Spit Pulsa Accessories – Applications
Fixing of pipes, cables & wiring accessories
Direct fixing of electrical trunking and junction boxes
Floors, walls & overhead fixings into: concrete, pre-stressed concrete, masonry and steel
Impulse & Pulsa Cleaning

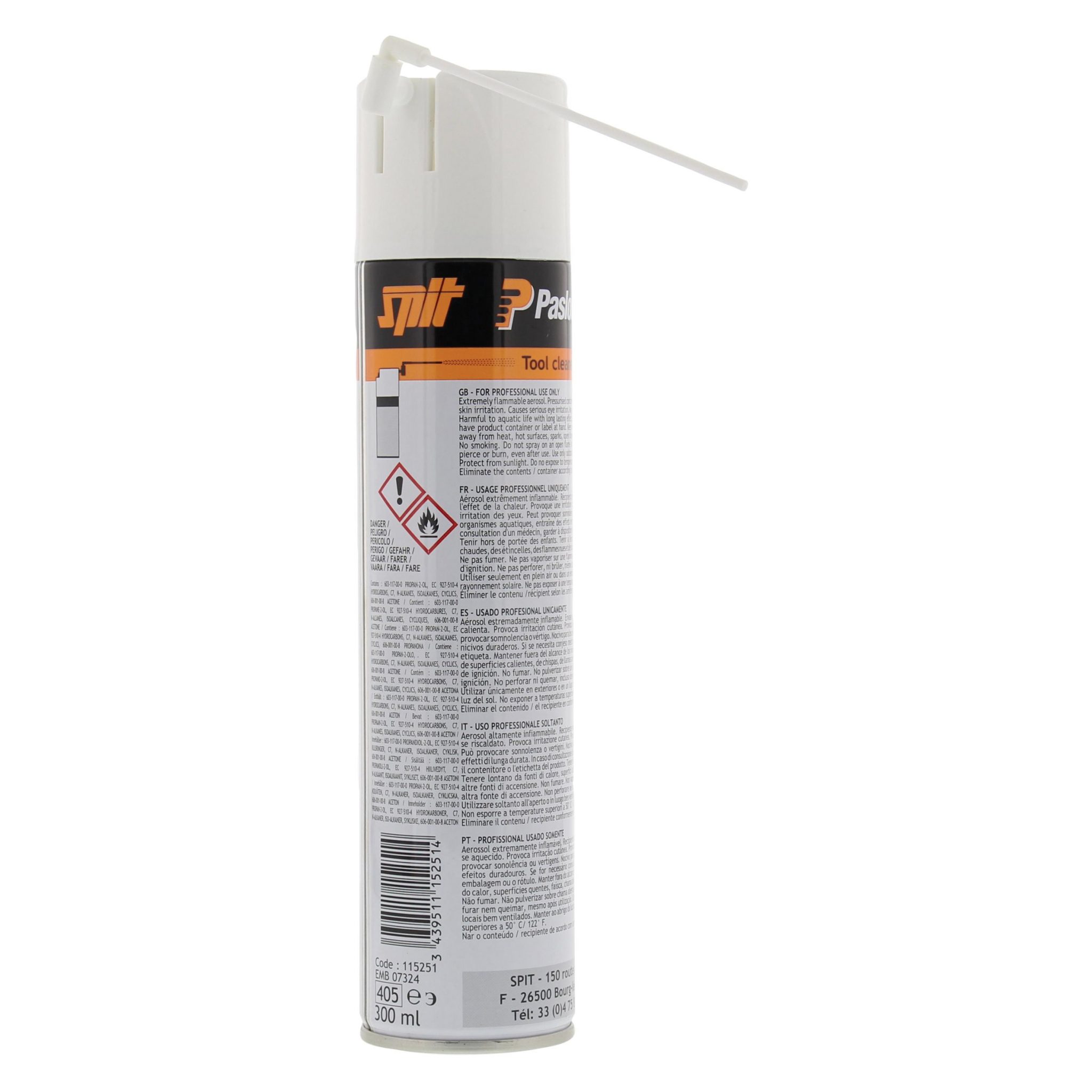

Impulse Cleaner 300ml
20 Pin Magazine for P800

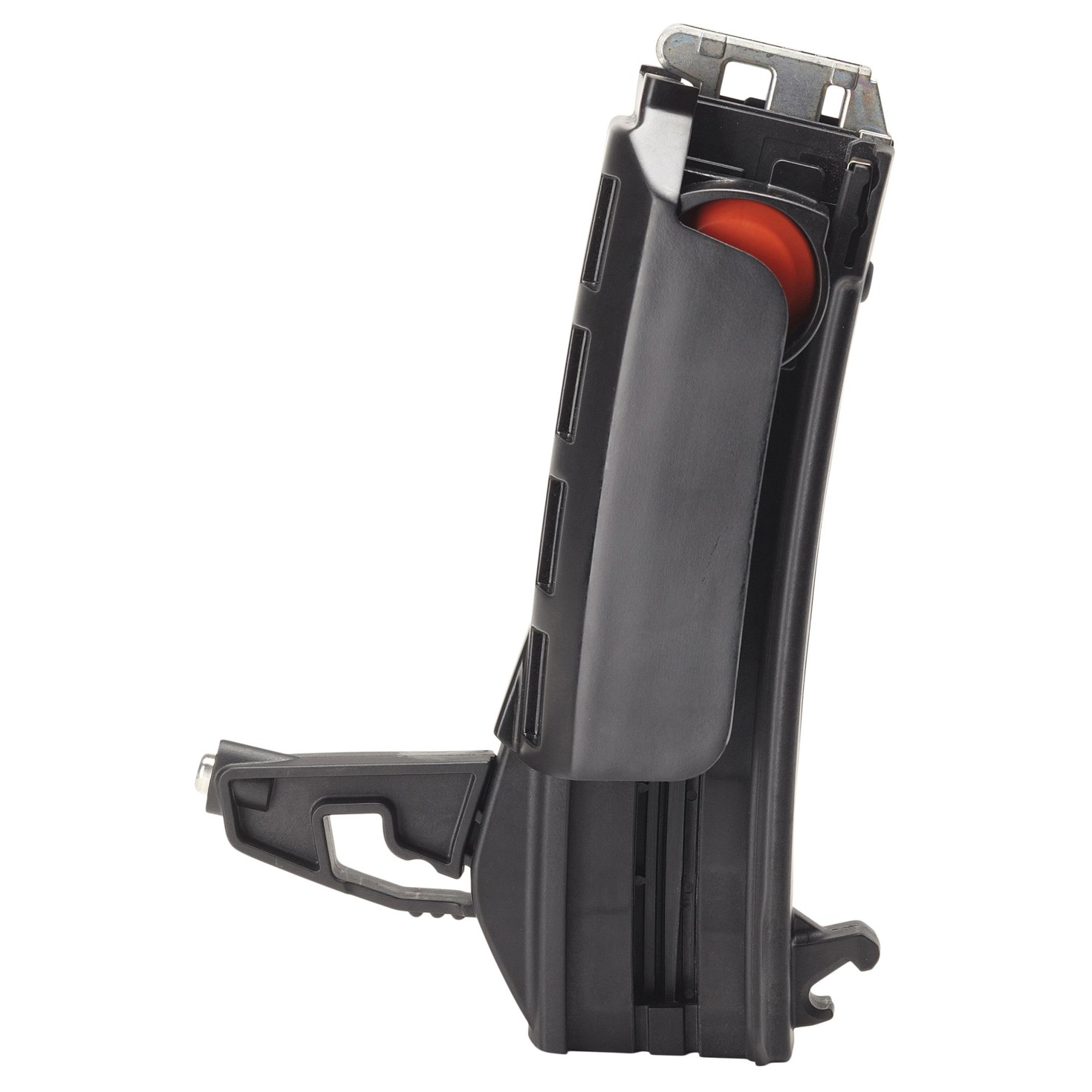

50 Pin Magazine for P800
Magnetic Washer Pin Guide
Flat Magnetic Pin Guide

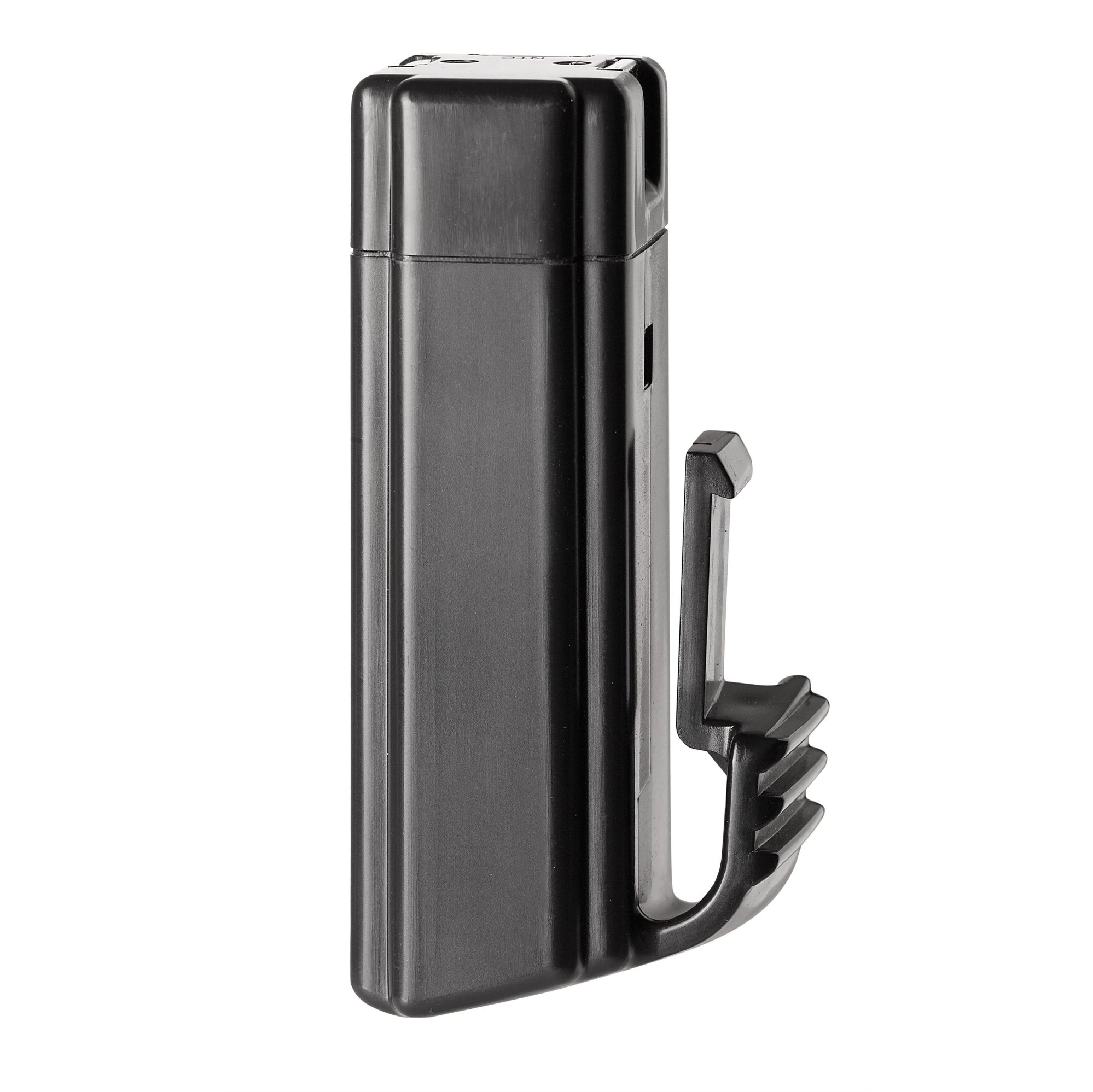

Battery for Pulsa 800
Battery Charger for

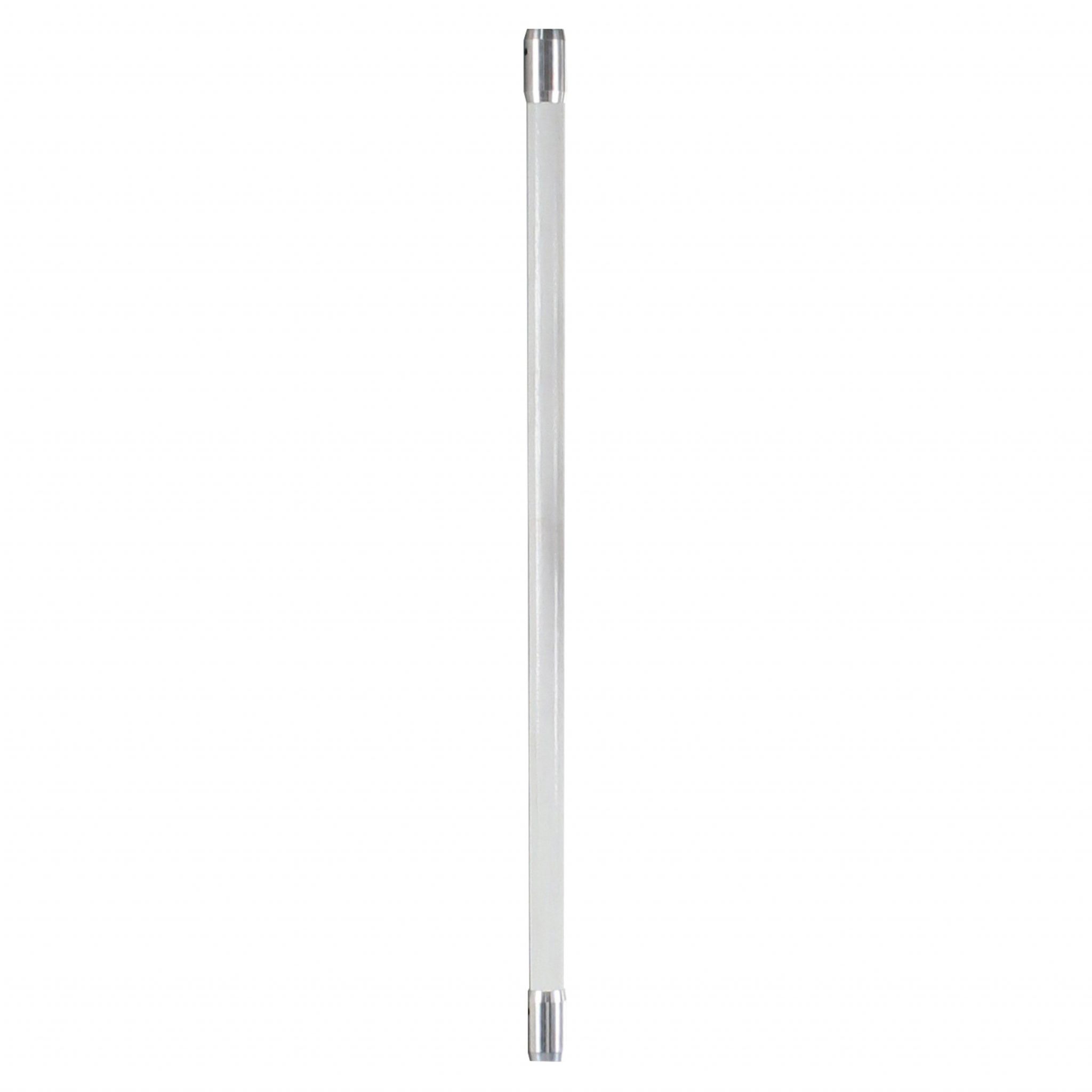

E-Lift Pole Tool 178cm for
E-Lift Tube Extension 75cm
Steel Washer 25mm
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Impulse & Pulsa Cleaning Kit (013690) | Impulse Cleaner 300ml (115251) |
|---|---|
| 50 Pin Magazine for P800 (014640) | Magnetic Washer Pin Guide for P800 (014641) |
| Battery for Pulsa 800 (018483) | Battery Charger for Pulsa 800 (018484) |
| E-Lift Tube Extension 75cm for Pulsa 800E (018849) | Steel Washer 25mm (011204) |
| Tool | |
| Weight According EPTA | Net Depth Dimension |
| Weight According EPTA3.7 kg (with battery) | Net Depth Dimension385 x 114 x 309 mm |
| Battery | |
| Battery Capacity | 2.2 Ah |
| Battery Capacity2.2 Ah | Battery Charge Time90 Min. |
| Consumables | |
| Fastener Length Range | 15-40 mm |
| Fastener Length Range15-40 mm in strip | Magazine Capacity20 fixings |
| Safety | |
| Sound Pressure Level (En 12549) Lpa,1S,1M | 96 |
| Sound Pressure Level (En 12549) Lpa,1S,1M96 dB | Vibration (EN ISO 8662-11) hav4.1 m-s-2 |
| DESCRIPTION | VALUE |
| Weight According EPTA (Kg) | 3.7 kg |
| Fixings Per Sec | 2 fixings |
| Fixings Per Hour | 1000 fixings |
| Fasteners Type | Pins |
| Tool Degree Collation | 0 ° |
| Automatic Piston Return | Yes |
| Depth Of Drive | Tool free |
| Battery Energy (W/H) | 8 W/h |
| Battery Qty Per Kit | 1 pcs |
| Fuel Cell Capacity | 500 shots |
| Battery Weight Per Unit | 0.076 kg |
| Battery Type | Lithium |
| Battery Charge Time | 90 Min. |
| Fixings Per Battery Charge | 3000 shots |
| Long Magazine Capacity | 50 fixings |
| Magazine Capacity | 20 fixings |
| Actuation Pressure | 4.5 kg |
| Operating Temperature Range | -15°C...+49 °C |
| Power (Impact Force) | 82 J |
| Actuation Mode | Full sequential |
| Vibration (EN ISO 8662-11) hav | 4.1 |
| Peak Sound Pressure (En 12549) Lpcpeak | 135 |
