Elpress AS Aluminium Through Connectors with partitions and different areas (16-400mm²)

Product overview

Elpress AS Aluminium Through Connectors with partitions and different areas

Elpress AS Aluminium Through Connectors (splices) with partition and different areas (16-400mm²) are used mainly for connecting two Al conductors of different sizes to each other. Used for splicing Al conductors of different areas. Two plus two crimps are needed – For crimp sequence, see image below.

Part Numbers: AS25-16, AS35-25, AS50-25, AS50-35, AS70-50, AS95-25, AS95-35, AS95-50, AS95-70, AS120-95, AS150-50, AS150-70, AS150-95, AS150-120, AS185-95, AS185-150, AS240-95, AS240-120, AS240-150, AS240-185, AS300-240, AS400-300, AS500A-300, AS500A-400.

General Information

SYSTEM ELPRESS

System Elpress consists of Terminals and Tools designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and the achievement of a secure connection through the proper handling of our products. By using Elpress Cu-Connection elements together with one of Elpress Crimp Systems one obtains a connection tested according to the requirements of IEC 61238:1.

AL TERMINALS

Elpress Terminals and Lugs for Al cable made of solid and pure aluminium 99.7%. We manufacture Al Terminals of type AK and AS, but also customised terminals or terminals larger than 1200mm2.

Al Terminals type AK used with Al conductors for connection to busbars and apparatus sockets.

Al Through Connectors type AS used when connecting Al Conductors.

ALCU TERMINALS

Elpress Bimetallic Terminals (AlCu) manufactured from solid materials, friction-welded together, joining Aluminium with Copper. To achieve that, the Al part rotates against the Cu part under pressure. This method provides the best connection between Al and Cu.

Terminals of type AKK used at the end of an Al conductor for connection to a Cu bus bar.

Through Connectors of type AKS used to connect Al Conductors to Cu Conductors.

Pin Sockets of type AKP used to connect Al Conductors to apparatus intended for Cu Pin Connections.

Crimping & Marking

NUMBER OF CRIMPS

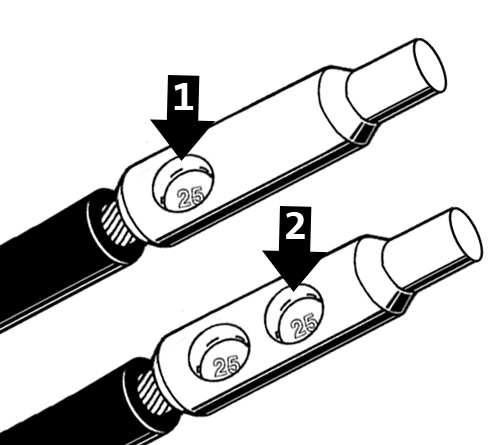

The Elpress system is suitable for both Stranded (acc. to IEC 60228 Class 2) and Solid Conductors (acc. to IEC 60228 Class 1). However, note that there is an area difference between stranded and solid Al Conductors (see tables). When using sectoral Al-cable, a pre-rounding is normally necessary, done with a round crimping tool. When contact crimping Al Terminals, always make two crimps. Note the crimp sequence.

MARKING OF AL & ALCU LUGS

Elpress system for marking Al and AlCu Terminals shows the conductor area and reference to rounded and contact crimping tools, within the Elpress range. A tool reference for hexagonal crimping copper is give on the bimetallic through connectors.

For more information on Elpress AS Aluminium Through Connectors (splices) with partition and different areas (16-400mm²), consult PDF File or Technical Data Table below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service

E-Tech Components UK Ltd maintains a free technical advisory service.

Download PDF: Elpress AS Aluminium Through Connectors with partition (16-400mm²)

Interested in this Product?

Technical Data

Cat. No.	Solid Al Area mm²
Cat. No.AS25-16	Solid Al Area mm²35-25
Cat. No.AS35-25	Solid Al Area mm²50-35
Cat. No.AS50-25	Solid Al Area mm²70-35
Cat. No.AS50-35	Solid Al Area mm²70-50
Cat. No.AS70-50	Solid Al Area mm²95-70
Cat. No.AS95-25	Solid Al Area mm²120-35
Cat. No.AS95-35	Solid Al Area mm²120-50
Cat. No.AS95-50	Solid Al Area mm²120-70
Cat. No.AS95-70	Solid Al Area mm²120-95
Cat. No.AS120-95	Solid Al Area mm²150-120
Cat. No.AS150-50	Solid Al Area mm²185-70
Cat. No.AS150-70	Solid Al Area mm²185-95
Cat. No.AS150-95	Solid Al Area mm²185-120
Cat. No.AS150-120	Solid Al Area mm²185-150
Cat. No.AS185-95	Solid Al Area mm²240-120
Cat. No.AS185-150	Solid Al Area mm²240-185
Cat. No.AS240-95	Solid Al Area mm²120
Cat. No.AS240-120	Solid Al Area mm²150
Cat. No.AS240-150	Solid Al Area mm²185
Cat. No.AS240-185	Solid Al Area mm²240
Cat. No.AS300-240	Solid Al Area mm²-
Cat. No.AS400-300	Solid Al Area mm²-
Cat. No.AS500A-300	Solid Al Area mm²-
Cat. No.AS500A-400	Solid Al Area mm²-

Technical Data

Cat. No.	Solid Al Area mm²
Cat. No.AS25-16	Solid Al Area mm²35-25
Cat. No.AS35-25	Solid Al Area mm²50-35
Cat. No.AS50-25	Solid Al Area mm²70-35
Cat. No.AS50-35	Solid Al Area mm²70-50
Cat. No.AS70-50	Solid Al Area mm²95-70
Cat. No.AS95-25	Solid Al Area mm²120-35
Cat. No.AS95-35	Solid Al Area mm²120-50
Cat. No.AS95-50	Solid Al Area mm²120-70
Cat. No.AS95-70	Solid Al Area mm²120-95
Cat. No.AS120-95	Solid Al Area mm²150-120
Cat. No.AS150-50	Solid Al Area mm²185-70
Cat. No.AS150-70	Solid Al Area mm²185-95
Cat. No.AS150-95	Solid Al Area mm²185-120
Cat. No.AS150-120	Solid Al Area mm²185-150
Cat. No.AS185-95	Solid Al Area mm²240-120
Cat. No.AS185-150	Solid Al Area mm²240-185
Cat. No.AS240-95	Solid Al Area mm²120
Cat. No.AS240-120	Solid Al Area mm²150
Cat. No.AS240-150	Solid Al Area mm²185
Cat. No.AS240-185	Solid Al Area mm²240
Cat. No.AS300-240	Solid Al Area mm²-
Cat. No.AS400-300	Solid Al Area mm²-
Cat. No.AS500A-300	Solid Al Area mm²-
Cat. No.AS500A-400	Solid Al Area mm²-
