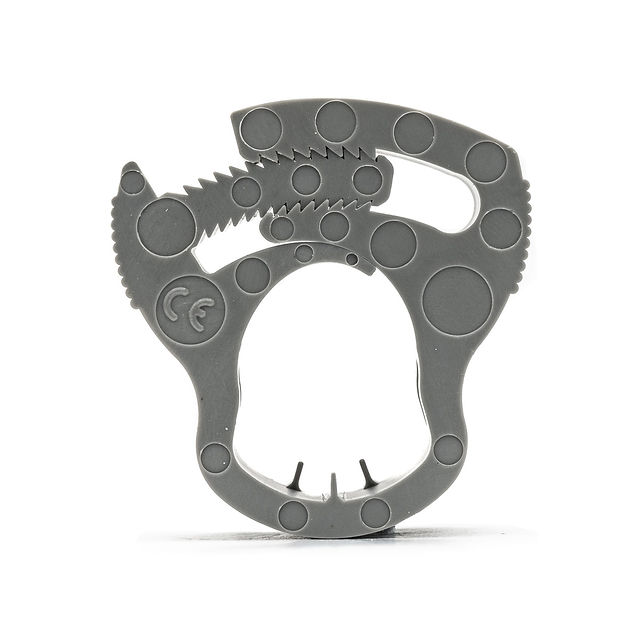

HCL Fasteners EZB15D Ezybond Earth Clamp (15mm Pipe | 10mm2 Cable) is a quick and easy to assemble nylon clamping solution that conforms to BS951-2009. Features an innovative design, including a double grip jaw, conductor guide vanes and security locking tabs. Manufactured from Heat/ UV Stabilised ROHS-compliant Nylon 6.6. The Ezybond is the perfect Earth Bond Clamping solution with excellent mechanical, chemical, heat resistant and self extinguishing properties.
HCL EZB15D Ezybond Earth Clamp – Features
Quick and easy to assemble
Reduces installation time by more than 50%
Manufactured from Heat/ UV Stabilised ROHS-compliant Nylon 6.6
ASTA approved electrical tests to BSI951:2009
Manufactured according to ISO 9001-2015
Maintains continuous uniform metal contact
No screws or loose parts
Safe to use – No sharp edges
Increased security
Always correct size for pipe fitted
Corrosion resistant – can be used in damp environments
Ezybond® offers a much faster installation time when compared to standard Earth clamps. The resulting cost reduction is highly advantageous to all users, ranging from Electricians to OEMs.
HCL Fasteners Ltd is a world-leading manufacturer of composite Polymer Hose Clamping, Fastening and Banding Solutions. Their range includes Polymer Hose Clamps, Bands, Ties and Special Tools to support and install these solutions. They also offer Cable Saddles, Protectors & Fittings, as well as Custom Solutions to match your project’s requirements.
Suitable for a variety of demanding applications, including Subsea, Downhole & Offshore. HCL Clamps the go-to solution for anyone looking to secure cables, pipes, umbilicals, conduits and more in challenging environments
For Additional Information on HCL EZB15D Ezybond Earth Clamp (15mm) and different sizes, please advise PDF File or Technical Data Table below.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| PART NUMBER | PIPE DIAMETER (A) |
|---|---|
| PART NUMBEREZB15AC | PIPE DIAMETER (A)15 mm (0,59 inch) |
| PART NUMBEREZB22AC | PIPE DIAMETER (A)22 mm (0,87 inch) |
| PART NUMBEREZB15D | PIPE DIAMETER (A)15 mm (0,59 inch) |
| PART NUMBEREZB22D | PIPE DIAMETER (A)22 mm (0,87 inch) |
| Colour | Grey |
| Clamp Material | Nylon 6.6 |
| Flammability | UL 94 V-2 |
| Max Long Term Operating Temperature | 125°C (255°F) |
| Max Peak Operating Temperature | 170°C (340°F) |
| Country of Manufacture | United Kingdom |
| Hazardous Goods | No |
| RoHS Compliant | Yes |
