Nexans Expert Tool Kit (E-Tech Part No: NPETK) puts all the essential tools a professional needs in one convenient kit. From chamfering and insulation removal tools to scissors and measuring tapes, it has everything you need to get the job done right.
1 – RIPLEY Semi-con Shaving Tool (US02-7000)
2 – ALROC Chamfering Tool (LHA-60)
3 – ALROC Insulation Removal Tool (BRMRD1E)
4 – ALROC Large Insulation Removal Tool (LH2)
5 – ALROC Handle For LH2
6 – ALROC Cable Stop For LH2
7 – ALROC Outer Sheath Removal Tool (PG4HTA3033)
8 – RIPLEY Large Format Cable Slitter (US15)
9 – ALROC Cable Measure Tape (MRA)
10 – RIPLEY Scissors (KS2)

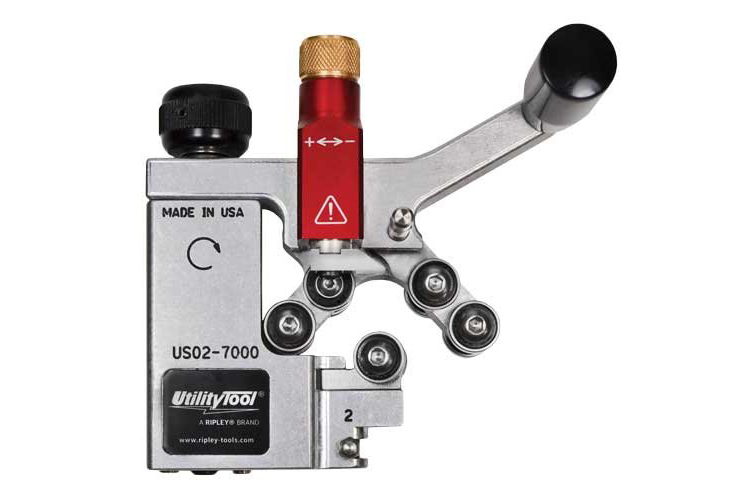

Ripley US02-7000 quickly and easily removes bonded semi-con from 5 to 35 kV power cables. Its unique blade shape preserves the smooth surface on insulation, eliminating the need for deburring or additional surface finishing. Its optimal stability design securely supports cables with diameters from 0,71″ to 2,4″ (18 to 60 mm) throughout the shaving operation.
CABLE VOLTAGE CABLE SIZE: 5 kV to 35 kV
CABLE SIZE Ø: 0.71” – 2.4” (18 – 60 mm)
SEMI-CON THICKNESS: Up to 0.095” (2.4 mm)
Alroc LHA/60 enables the user to realise a chamfer of 30° at the extremity of the insulation of MV cables.
DIAMETER: 0,551” – 1,575” (14 – 40 mm)
CHAMFER ANGLE: 30°
LENGTH: 10,433” (265 mm)
WIDTH: 4,134” (105 mm)

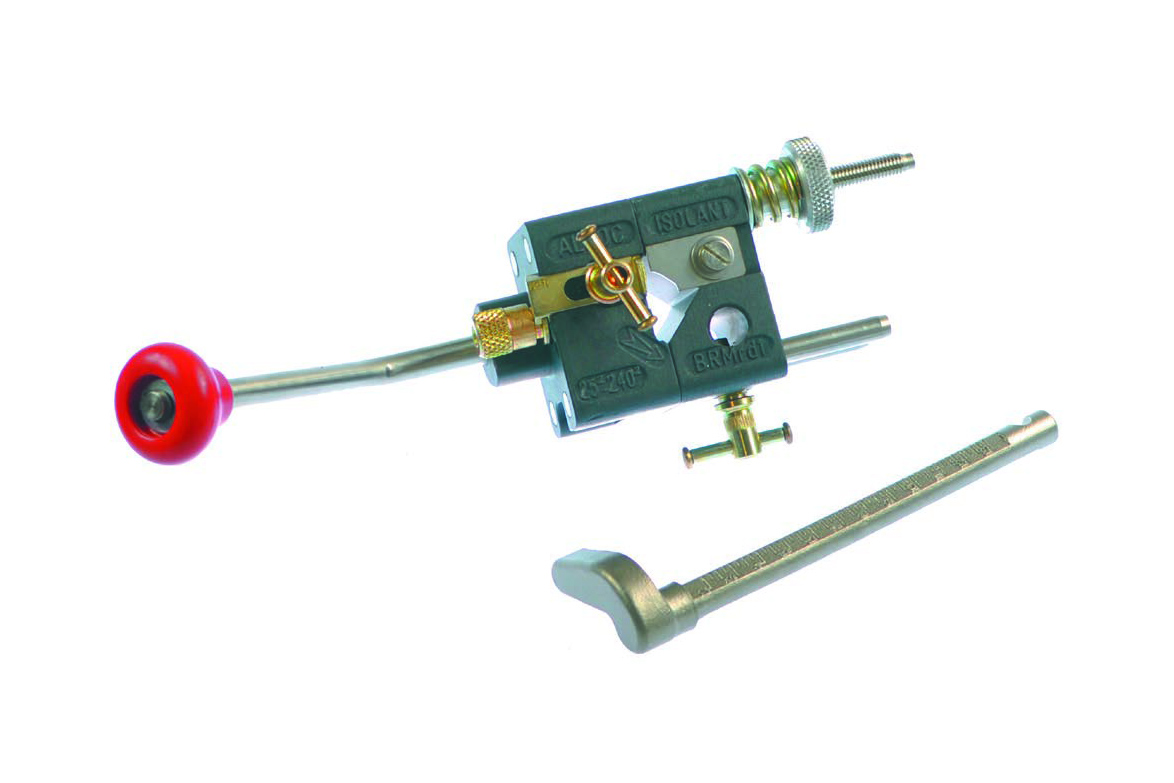

Alroc BRMRD1E enables the user to set the length and remove the insulation with a straight andneat cut on MV cables.
DIAMETER: 0,551” – 1,575” (14 – 40 mm)
INSULATION THICKNESS CAPACITY: 0,354” (9 mm)
LENGTH: 10,630” (270 mm)
WIDTH: 3,937” (100 mm)
Alroc LH2 enables the user to remove the insulation.
DIAMETER: 1,496 – 2,362” (38 – 60 mm)
MAX CUTTING DEPTH: 0,669” (17 mm)
LENGTH: 16,732” (425 mm)
WIDTH: 4,134” (105 mm)
HEIGHT: 3,346” (85 mm)
ALROC Handle For LH2 is used in combination with LH2.
ALROC Cable Stop For LH2 is used in combination with LH2.
ALROC Outer Sheath Removal Tool PG4HTA3033 enables the user to make a circular and longitudinal cut in order to remove cable’s outer sheath.All cutting depth ranging from 0,5 mm/ 0,019 in to 5 mm/ 0,196 in are available on demand. How to built your customized pliers : PG4HTA/yyzz (yy = Circular cutting depth e.g : 30 = 3,0 mm / 0,118” | zz = Longitudinal cutting depth e.g : 33 = 3,3 mm / 0,130”).
DIAMETER: 1,850” – 2,953” (47 – 75 mm)
CIRCULAR CUTTING THICKNESS CAPACITY: 0,118” (3,0 mm)
LONGITUDINAL CUTTING THICKNESS CAPACITY: 0,130” (3,3 mm)
LENGTH: 11,811” (300 mm)
WIDTH: 4,331” (110 mm)
Ripley US15 is a versatile tool used to perform slit, ring and spiral cuts on cable diameters from 10 to 50 mm. Equipped with a hardened steel blade, the tool provides fast, safe and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers.
CABLE DIAMETER(S): 0,39” – 1,96” (10 – 50 mm)
JACKET TYPES: HDPE – PE – PVC – Rubber
ADJUSTABLE BLADE DEPTH: 0,177” (4,5 mm)
LENGTH: 5,125” (130 mm)

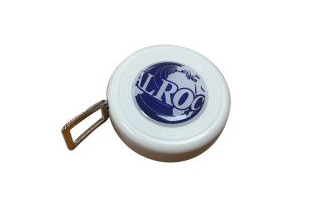

Alroc MRA tape is a metal tape used to measure the diameter of the cables according to its circumference and the stripping lengths to be performed. Features double-sided graduation with both metric and imperial units of measurement.
Ripley KS2 6” is a pair of Kevlar scissors with ergonomic, comfort grip shears designed to cut through tough Kevlar strength fibes. Micro-serrated stainless steel blades grip fibes, reducing slippage and producing clean cuts every time. Optional molded pouch with belt loop keeps the tool safely on hand.
The Alroc Case with Foam Cut-Outs is the ultimate companion for keeping all your tools in one organised place!
*Technical Data subject to change without notice.
For Additional Information on Nexans Expert Tool Kit (NPETK) and the Associated Tools & Accessories, please download PDF File below.
