Prysmian BICON Excel Plus Deluge Proof Cable Gland (493AB Series) is a brass indoor and outdoor cable gland for use in hazardous locations. Universal Gland suitable for use with braid, tape and steel wire armoured cables.
Part Numbers: 493AB-51, 493AB-71, 493AB-52, 493AB-53, 493AB-55, 493AB-56, 493AB-57, 493AB-59, 493AB-61, 493AB-63.
Prysmian 493AB Features
Brass indoor and outdoor cable gland for use in hazardous areas.
Suitable for circular cables with braid, tape or wire armour and extruded polymeric bedding and oversheath.
Achieves IP67 and deluge proof (DTS01:1991) seal onto cable and to enclosure with suitable sealing washer or thread sealant.
Three part armour lock provides mechanical cable retention and electrical continuity.
Diaphragm inner seal compatible with soft bedding materials that may be subject to ‘cold-flow’.
Suitable for most climatic conditions – weatherproof, waterproof and deluge proof.
Standard and Nickel plated versions available.
Technical Data
Certified II 2GD, Ex e II & Ex d IIC under ATEX directive 94/9/EC.
Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1.
Certificate number Sira01ATEX1032X.
Service temperature range -20°C to +90°C.
CSA Certified Ex d IIC & Ex e II, CSA Enclosure Type 4X, AEx d IIC & AEx e II, NEMA 4X.
Zones 0, 1 & 2 with Ex ia IIA , B & C equipment.
Zones 1 & 2 with Ex ib IIA , B & C equipment.
Zones 1 & 2 with Ex e II equipment.
Zones 1 & 2 with Ex p II equipment.
Zone 2 with Ex nA II equipment.
Zones 21 & 22 with Ex tD II equipment.
Zones 1 & 2 with Ex d IIC equipment not containing a source of ignition & with a volume less than 2000 cm3.
Zones 1 & 2 with Ex d IIA & Ex d IIB equipment not containing a source of ignition & with any volume.
Zone 1 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with a volume less than 2000 cm.
Zone 2 with Ex d IIA & Ex d IIB equipment containing a source of ignition & with any volume.
Zone 2 with Ex nR II equipment.
For more information on Prysmian BICON Excel Plus Deluge Proof Cable Gland (493AB Series), please consult the Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116

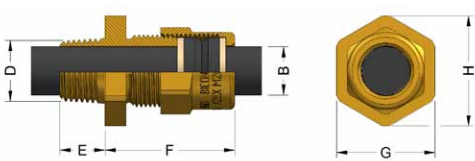

| Design Reference (Standard) | Design Reference (Nickel Plated) |
|---|---|
| Design Reference (Standard)493AB-51 | Design Reference (Nickel Plated)493AB-51V |
| Design Reference (Standard)493AB-71 | Design Reference (Nickel Plated)493AB-71V |
| Design Reference (Standard)493AB-52 | Design Reference (Nickel Plated)493AB-52V |
| Design Reference (Standard)493AB-53 | Design Reference (Nickel Plated)493AB-53V |
| Design Reference (Standard)493AB-55 | Design Reference (Nickel Plated)493AB-55V |
| Design Reference (Standard)493AB-56 | Design Reference (Nickel Plated)493AB-56V |
| Design Reference (Standard)493AB-57 | Design Reference (Nickel Plated)493AB-57V |
| Design Reference (Standard)493AB-59 | Design Reference (Nickel Plated)493AB-59V |
| Design Reference (Standard)493AB-61 | Design Reference (Nickel Plated)493AB-61V |
| Design Reference (Standard)- | Design Reference (Nickel Plated)- |
