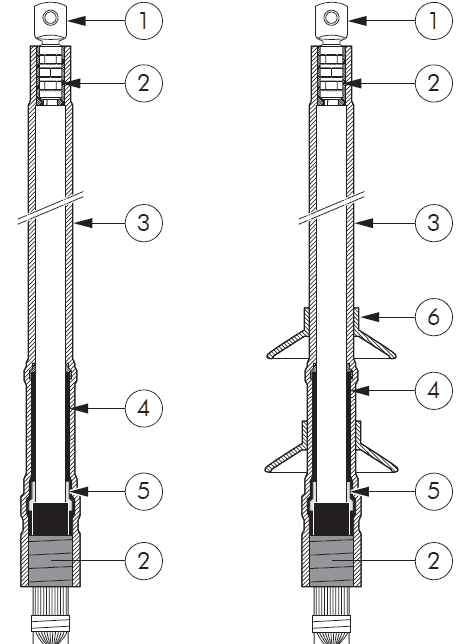

Nexans SREI Indoor MV Heat-Shrink Terminations (Single Core) are medium voltage heat-shrinkable indoor terminations for single core polymeric insulated cables (PVC, XLPE, EPR, etc.) up to 36 kV. Suitable for copper-wire screened cable. Standard core tube lengths are shown below, but can be extended by using additional lengths of anti-tracking HSRU tubing. Meets the requirements of CENELEC HD 629.1 and IEC 60502-4.
Part Numbers: SREI 12 16-25 / 35-95 / 120-240 / 240-500 / 400-630 / 630-800, SREI 24 35-70 / 95-185 / 240-400 / 400-630, SREI 36 50-95 / 120-240 / 240-500 / 400-630.
For use indoor in controlled environmental conditions. A set of three heat-shrinkable terminations for polymeric cables, widely used by power utilities and in industrial applications. SREI indoor version is suitable for installation within termination chambers of MV equipment, switchgear, etc. Additional items may be necessary to complete installation depending upon the cable detail:
Copper-tape screened cables will require additional SE Solderless Screen Earthing Kits
Cable Glands to earth the wire armours (AWA)
Cable Terminals
Additional Bushing Insulation (Boot Kits)
Gland Insulation Kits
Below you can easily select the Nexans Indoor Single Core MV Heat-Shrink Terminations for each cable voltage:
MAX VOLTAGE 12-17.5 kV
SREI 12/16-25 : Cable Range=16-25 mm2 | Core Length=650 mm
SREI 12/35-95 : Cable Range=35-95 mm2 | Core Length=650 mm
SREI 12/120-240 : Cable Range=120-240 mm2 | Core Length=650 mm
SREI 12/240-500 : Cable Range=240-500 mm2 | Core Length=650 mm
SREI 12/400-630 : Cable Range=400-630 mm2 | Core Length=650 mm
SREI 12/630-800 : Cable Range=630-800 mm2 | Core Length=650 mm
SREI 24/35-70 : Cable Range=35-70 mm2 | Core Length=650 mm
SREI 24/95-185 : Cable Range=95-185 mm2 | Core Length=650 mm
SREI 24/240-400 : Cable Range=240-400 mm2 | Core Length=650 mm
SREI 24/400-630 : Cable Range=400-630 mm2 | Core Length=650 mm
MAX VOLTAGE 36 kV
SREI 36/50-95 : Cable Range=50-95 mm2 | Core Length=650 mm
SREI 36/120-240 : Cable Range=120-240 mm2 | Core Length=650 mm
SREI 36/240-500 : Cable Range=240-500 mm2 | Core Length=650 mm
SREI 36/400-630 : Cable Range=400-630 mm2 | Core Length=650 mm
Additional Technical Data of Nexans SREI Indoor MV Heat-Shrink Terminations (SREI 12, 24 & 36) can be found on the table below. For more information, please advise the PDF File. Nexans 17JTS1 W
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Type | Max Voltage |
|---|---|
| TypeSREI 12/16-25 | Max Voltage 12-17,5 kV |
| TypeSREI 12/35-95 | Max Voltage 12-17,5 kV |
| TypeSREI 12/120-240 | Max Voltage 12-17,5 kV |
| TypeSREI 12/240-500 | Max Voltage 12-17,5 kV |
| TypeSREI 12/400-630 | Max Voltage 12-17,5 kV |
| TypeSREI 12/630-800 | Max Voltage 12-17,5 kV |
| TypeSREI 24/35-70 | Max Voltage 24 kV |
| TypeSREI 24/95-185 | Max Voltage 24 kV |
| TypeSREI 24/240-400 | Max Voltage 24 kV |
| TypeSREI 24/400-630 | Max Voltage 24 kV |
| TypeSREI 36/50-95 | Max Voltage 36 kV |
| TypeSREI 36/120-240 | Max Voltage 36 kV |
| TypeSREI 36/240-500 | Max Voltage 36 kV |
| TypeSREI 36/400-630 | Max Voltage 36 kV |
