Elpress Crimp Dies for T2600, V600, V611 and PVX611

Elpress

Crimp Dies for T2600, V600 , V611, PVX611 (C-sleeves, Cu & Al Terminals) and discontinued tool PVL611. Note that KRF Terminals may be used on flexible (IEC60228, class 5) as well as stranded (class 2) conductors and that KRD and KRT Terminals are used on stranded conductors. Make sure to use dies that exactly match the terminals. crimp dies for Cu

*Please note, Die Sets KB22, KB25, TB7-20, TB8-17, TB9-13 and TB11-14,5 are Network Rail-approved when used for crimping Cu-Terminals with Crimping Tool PVX611 (according to PADS Certificate PA05/07403).

Crimp Dies for KRF/ KSF

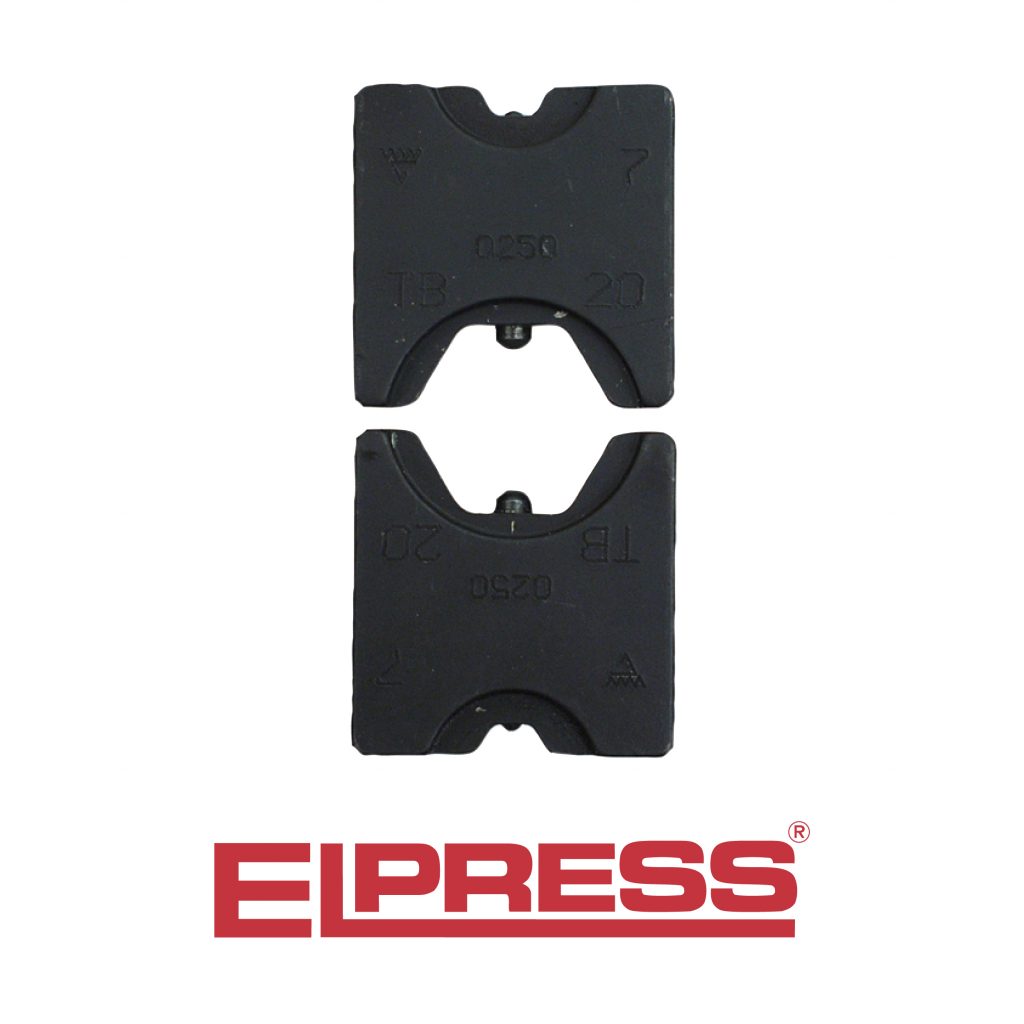

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The TB Dies below are suitable for Cu Terminals, type KRF/ KSF, together with Cu conductor according to IEC 60228 (Class 2, 5 and 6).

Elpress Part Numbers: TB8-17, TB9-13, TB11-14,5, TB7-20, KB22, KB25. See table below for additional technical information.

Crimp Dies for KRD/ KSD

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The TB Dies below are intended for Cu Terminals, type KRD/ KSD, together with Cu conductor according to IEC 60228 (Class 2).

Elpress Part Numbers: TB8-14, TB9-12, TB11-16, KB22, KB25. See table below for additional technical information.

Crimp Dies for KRT/ KST

For Cu Terminals, hexagonal crimping. Supplied in pairs.

The TB Dies below are intended for Cu Terminals, type KRT/ KST, together with Cu conductor according to IEC 60228 (Class 2).

Elpress Part Numbers: TB7-19, TB8,5-18, TB10-16, TB12-14, KB22, KB24, KB26. See table below for additional technical information.

Crimp Dies for Overhead Line

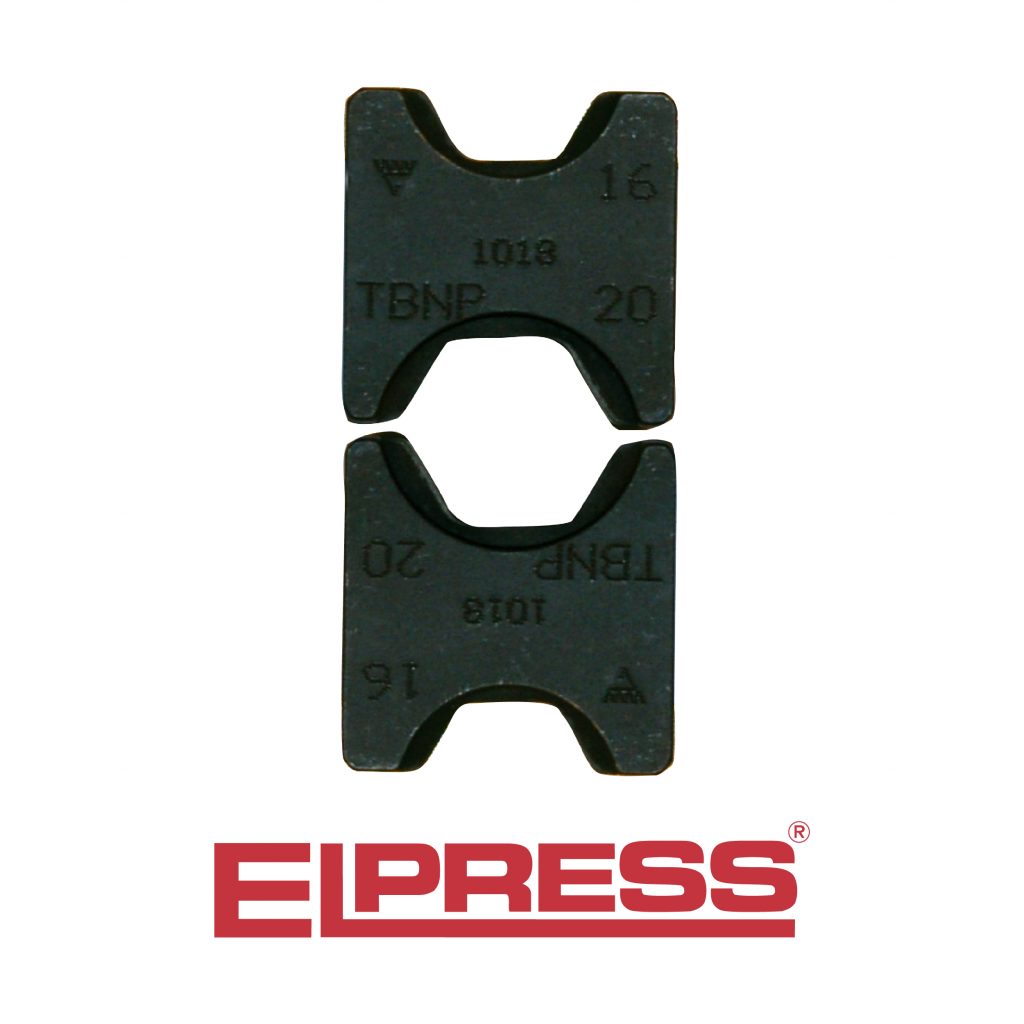

For joints on overhead lines AlMgSi (Super B) and Al59, hexagonal crimping. Supplied in pairs.

Elpress Part Number: TBNP16-20. See table below for additional technical information.

Crimp Dies for C-sleeves

For Cu branching wiht C-sleeves, oval crimping. Supplied in pairs.

No Die Holder required.

Elpress Part Numbers: TBC5-C6, TBC89-B13. See table below for additional technical information.

General Information

SYSTEM ELPRESS

System Elpress consists of terminals and tools, designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems. It also ensures the achievement of a secure connection through the proper handling of our products.

HYDRAULIC CRIMP SYSTEMS

Elpress hydraulic crimp systems crimp from 10 to 1200 mm². The systems consist of pumps and crimp heads that can be freely combined or with complete hand-held tools, where these devices are integrated. Wide range of accessories available for crimping, pre-rounding, cutting etc. Together with the matching terminals, they form  a complete system. Both pumps and hand-held tools have, with a few exceptions, quick feed function that means crimping can begin after a few pump strokes. The systems have a built-in ratchet lock that ensures the completion of the initial crimp and thus, produces results with the best characteristics. Pumps can connect to the different crimp heads providing the option of comfortable work in difficult situations and with maximum flexibility.

For more information on Elpress Crimp Dies for T2600, V600, V611 and PVX611 (C-Sleeves, Cu & Al Lugs), consult PDF File or Technical Data Table below. crimp dies for Cu, Crimp Dies for V611

*Technical Data subject to change without notice.

FREE Technical Advisory Service

E-Tech Components UK Ltd maintains a free technical advisory service.

Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
