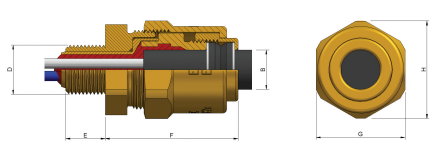

Prysmian BICON Barr-A Exd IIC Cable Gland (424TA)

Product overview

Prysmian BICON Barr-A Exd IIC Cable Gland (424TA Series) is a brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas. Suitable for use with circular unarmoured cables.

Part Numbers: 424TA-53, 424TA-55, 424TA-56, 424TA-57, 424TA-59, 424TA-61, 424TA-63, 424TA-64, 424TA-03, 424TA-05, 424TA-06, 424TA-07, 424TA-09, 424TA-11, 424TA-13, 424TA-14.

Prysmian 424TA Features

Brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas.

Suitable for circular unarmoured cables with extruded oversheath.

Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant.

Provides mechanical cable retention.

Suitable for most climatic conditions – weatherproof and waterproof.

Standard and Nickel plated versions available.

Full Installation Instructions supplied.

*Other NPT sizes available upon request.

Technical Data

Certified II 2GD, Ex e II & Ex d IIC under ATEX directive 94/9/EC.

Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1.

Certificate number Sira04ATEX1080X.

IECEx Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1.

Certificate number IECEx SIR 10.0072X

Service temperature range -60°C to +90°C.

Additional Information

May be used in:

Zones 0, 1 & 2 with Ex ia IIA , B & C equipment.

Zones 1 & 2 with Ex ib IIA , B & C equipment.

Zones 1 & 2 with Ex ib IIA , B & C equipment with any volume.

Zones 1 & 2 with Ex e II equipment.

Zones 1 & 2 with Ex p II equipment.

Zone 2 with Ex nA II equipment.

Zone 2 with Ex nR II equipment.

Zones 21 & 22 with Ex tD A21.

For more information on Prysmian BICON Barr-A Exd IIC Cable Gland (424TA Series), please consult the Datasheet below.
