Elpress Accessories for crimping Al with V250

Product overview

Elpress Accessories (Punch and Matrix) for crimping Al with Elpress V250 Crimping Head. Elpress Matrix and Punch Holder for the Elpress V250 System: V2521, V2531, V2540

Network Rail Approved Part Numbers (PADS Certificate PA05/07403):

Punches for Indent Crimping: P13D, P20D, P25D, P32D, P36-40-44D.

Matrices for Indent Crimping:P13M, P20M, P25M, P36M.

Punches for Pre-rounding: R6MR, R7MR, R8MR, R9MR, R12MR, R13MR, R15MR, R16MR, 13R18MR, 13R20MR.

Matrices for Pre-rounding: 13R12DR, 13R13DR, 13R15DR, 13R16DR, 13R18DR, 13R20DR.

Elpress Accessories for Crimping Al

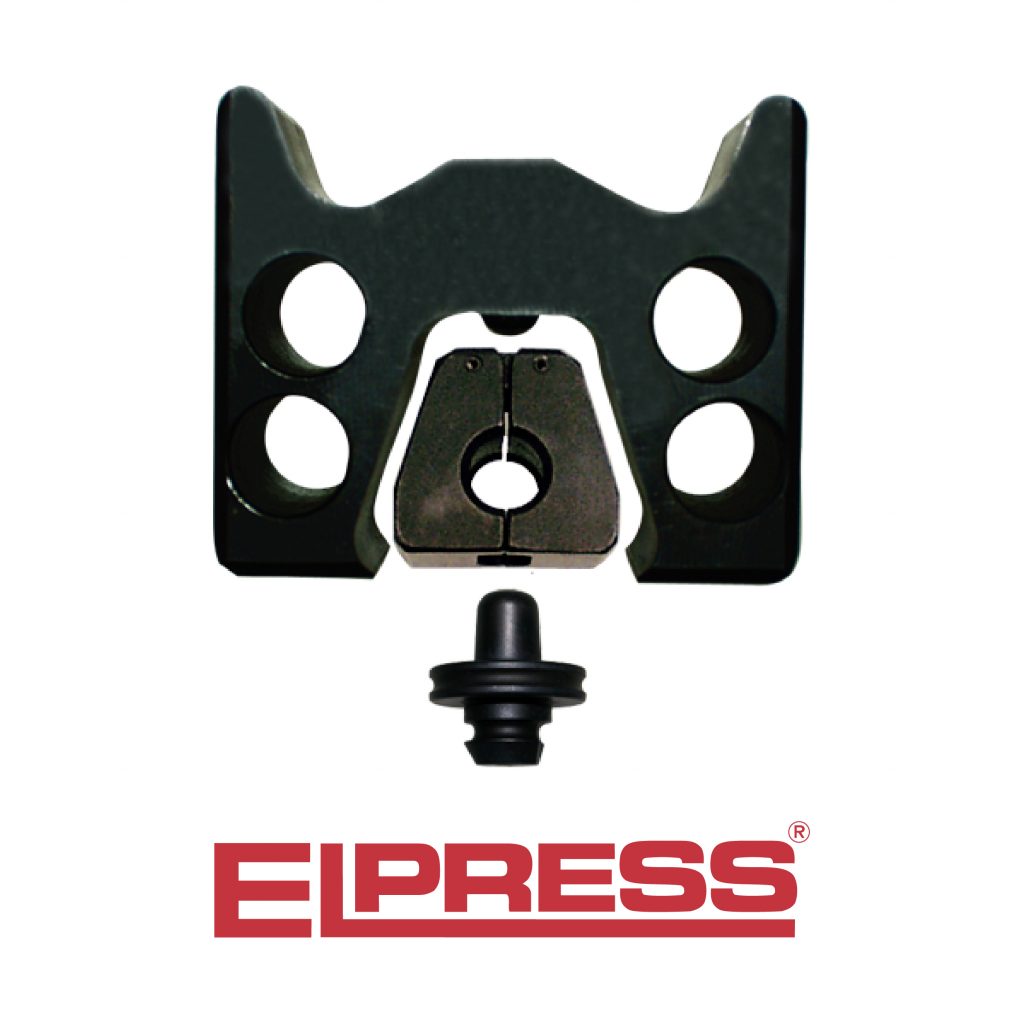

Punch and Matrix for Indent Crimping

Suitable for Al-Terminals, indent crimping. You always need two crimps for the indent crimping of Al Terminals.

You don’t need a punch holder for Solid (Class 1) and Stranded (Class 2) Al conductors according to IEC 60228.

Stranded Al Solid Al Matrix  Punch  No of

Crimps Matrix

Holder

16-25mm2 16-35mm2 P13M P13D 2 V2521

35-70mm2 50-95mm2 P20M P20D 2 V2521

95-150mm2 120-185mm2 P25M P25D 2 V2521

185-240mm2 240mm2 P32M P32D 2 V2531

300mm2 300mm2 P36M P36-40-44D 2 V2531

300-400mm2 – P2537M P2537D 2 –

400mm2 – P40M P36-40-44D 2 V2531

500mm2 – P44M P36-40-44D 2 V2531

500-630mm2 – P2552M P2552D 2 –

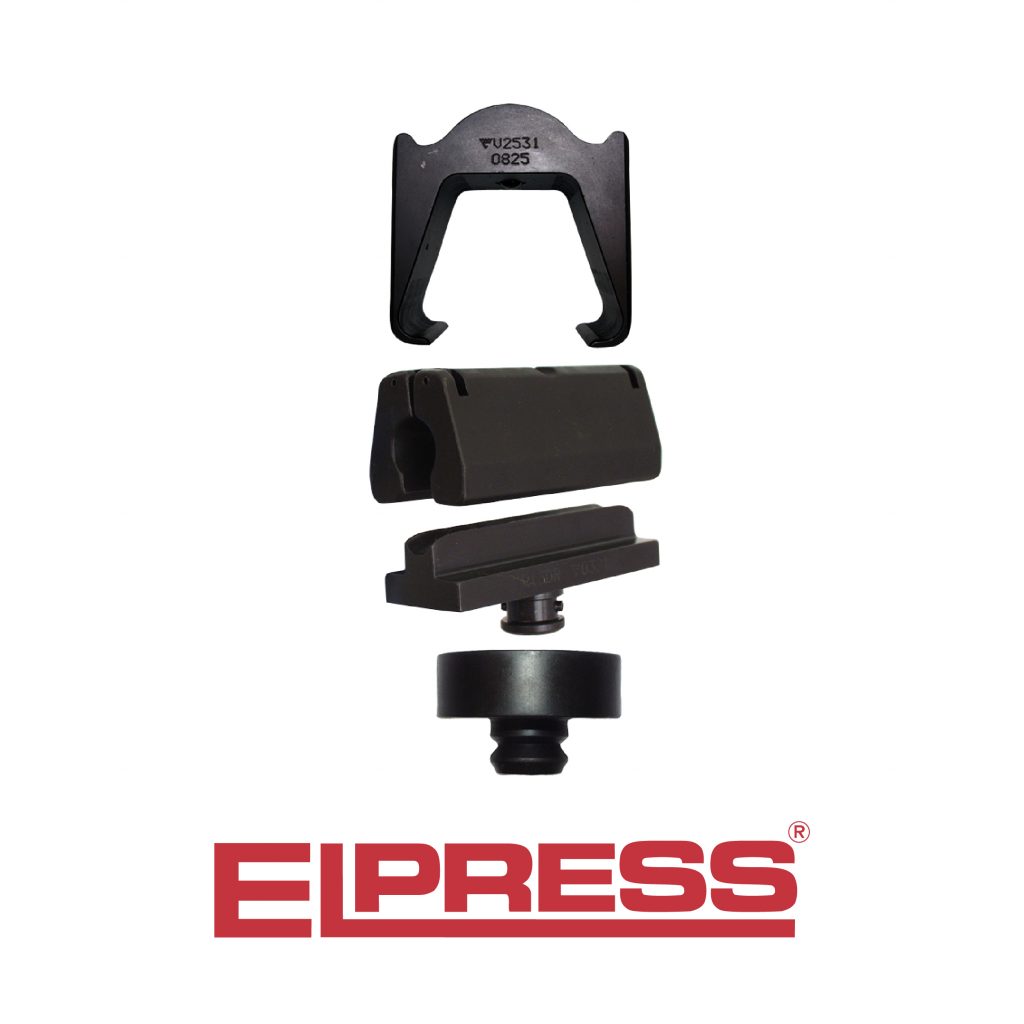

Punch and Matrix for Pre-Rounding

For Al Conductors, pre-rounding. Use Matrix Holder V2540 (below).

Stranded Al Solid Al Matrix  Punch  Matrix

Holder

16 mm2 16 (+25) mm2 R6MR R6DR V2521

25 mm2 35 mm2 R7MR R7DR V2521

35 mm2 50 mm2 R8MR R8DR V2521

50 mm2 70 mm2 R9MR R9DR V2521

70 mm2 95 mm2 R12MR R12DR V2521

95 mm2 120 mm2 R13MR R13DR V2521

120 mm2 150 mm2 R15MR R15DR V2521

150 mm2 185 mm2 R16MR R16DR V2521

185 mm2 240 mm2 R18MR R18DR V2531

240 mm2 – R20MR R20DR V2531

300 mm2 300 mm2 R21MR R21DR V2531

400 mm2 – R26MR R26DR V2531

500 mm2 – R28MR R28DR V2531

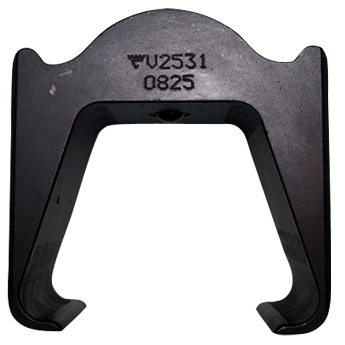

Elpress Matrix & Punch Holders for the V250 System

Name Stranded Al Solid Al  Net Weight

Elpress V2521 16-150 mm2 16-185 mm2 0,921 kg

Elpress V2531 185-500 mm2 240-300 mm2 0,750 kg

Elpress V2540 16-500 mm2 16-300 mm2 0,157 kg

General Information

SYSTEM ELPRESS

System Elpress consists of Terminals and Tools that are designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and that a secure connection is achieved through the proper handling of our products.

HYDRAULIC CRIMP SYSTEMS

Elpress hydraulic crimp systems fit Elpress terminals and connectors from 10 to 1200 mm². The systems include pumps and crimp heads that you can freely combine or use with complete hand-held tools, where these functions are integrated. There is a wide range of accessories available for crimping, prerounding of sectorised conductors, cable cutting, and so on. The matching terminals combine to form the complete crimping system. Both pumps and hand tools, with a few exceptions, have a quick feed function. This means you can start crimping after a few pump strokes and after the dies make contact with the terminal. The systems also include a built-in ratchet lock, which ensures you complete the initial crimp and achieve the best possible results. Pumps that you can connect to various crimp heads offer versatility and provide maximum comfort and flexibility when working in tight spaces and demanding areas.

For more information on Elpress Accessories (Punch, Matrix, Holder, etc) for crimping Al with Elpress V250 Crimping Head (e.g. V2521), consult the PDF File or Technical Data Table below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service

E-Tech Components UK Ltd maintains a free technical advisory service.

Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
