Prysmian BICON CW Dual Screen Cable Gland Kit (422DA Series) is a Cable Gland Kit for Dual layer copper wire Screened Concentric Bonding Cables. Suitable for use with single core concentric bonding cables with Dual layer screens.
Prysmian 422DA Features
Concentric Bonding Cable Gland.
Brass Gland and accessories.
For Dual layer copper wire Screened Concentric Bonding Cables.
Suitable for most climatic conditions, weatherproof and waterproof.
Tandomised armour ring & body arrangement for compact termination of 2 layers of Copper screen wires.
Secondary seal & shroud for topside of the steel structure.
Technical Data
Suitable for use with all Concentric dual layer copper wire screened bonding cables.
Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
Service temperature range -20°C to +90°C.
Kit Contents
Dual Screen CW Gland
Nylon Sealing Washer
Top seal assembly
For more information on Prysmian BICON CW Dual Screen Cable Gland Kit (422DA Series)(e.g. 422DA92), please consult the Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
Concentric Bonding Cable Gland.
Brass Gland and accessories.
For Dual layer copper wire Screened Concentric Bonding Cables.
Suitable for most climatic conditions, weatherproof and waterproof.
Tandomised armour ring & body arrangement for compact termination of 2 layers of Copper screen wires.
Secondary seal & shroud for topside of the steel structure.

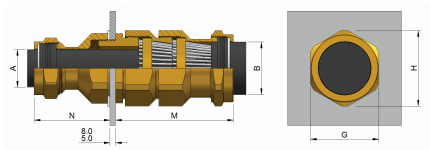

| Design Reference | Size |
|---|---|
| Design Reference422DA-90 | Size40 |
| Design Reference422DA-91 | Size50ss |
| Design Reference422DA-92 | Size50s |
| Design Reference422DA-93 | Size50 |
| Design Reference422DA-95 | Size63 |
| Design Reference422DA-96 | Size75 |
