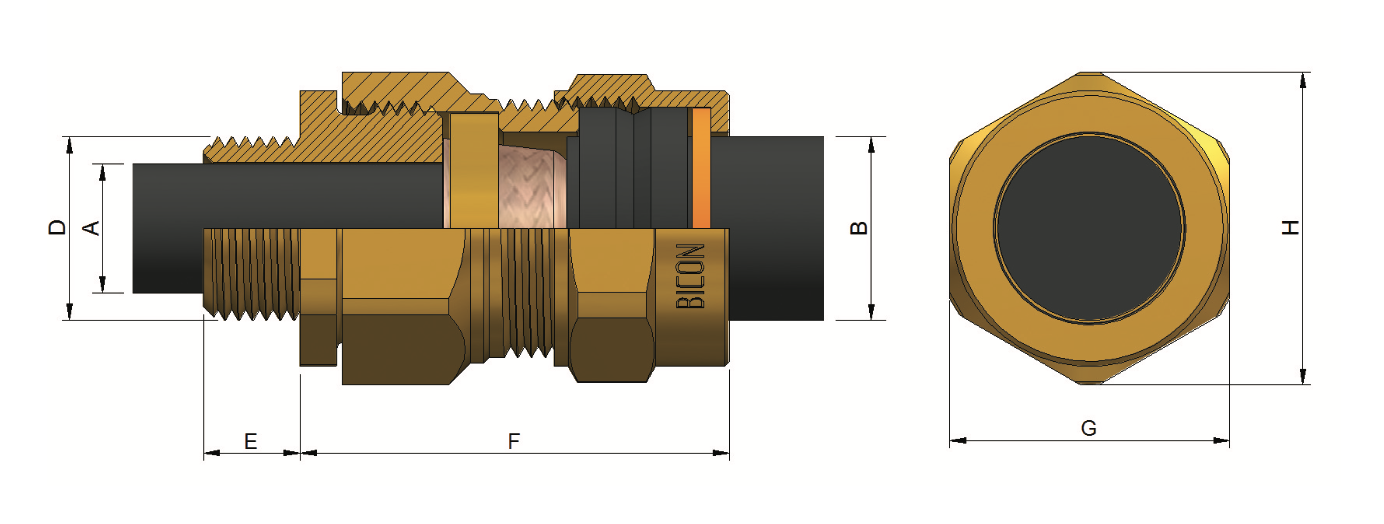

Prysmian BICON CX Cable Gland Kit (KA414)

Product overview

Prysmian BICON CX Cable Gland Kit (KA414 Series) is an industrial indoor / outdoor cable gland for wire braid armoured cable.

Part Numbers: KA414-81, KA414-91, KA414-51, KA414-71, KA414-52, KA414-53, KA414-55, KA414-56, KA414-57, KA414-59, KA414-61, KA414-63, KA414-64, KA414-65

Prysmian KA414 Features

Indoor & outdoor type for Wire Braid Armoured Cable

Brass indoor & outdoor gland and accessories

For wire braid armour plastic or rubber sheathed cables

Suitable for most climatic conditions, weatherproof and waterproof

Three part armour lock with separate armour locking ring, ideal for checking electrical continuity

*For use with miniature braided cables. These kits do not include a shroud.

Technical Data

Suitable for use with all Wire Braid Armoured Cables

CuZn39Pb3 brass alloy used for guaranteed strength and performance

Complies with BS EN 50262 & BS 6121-1: 1989

Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface

Service temperature range -20°C to +90°C

Kit Contents

CX Gland

Brass Earth Tag

Brass Locknut

PCP Shroud

(2 per kit up to and including 25mm size)

For more information on Prysmian BICON CX Cable Gland Kit (KA414 Series), please consult the Datasheet below.
