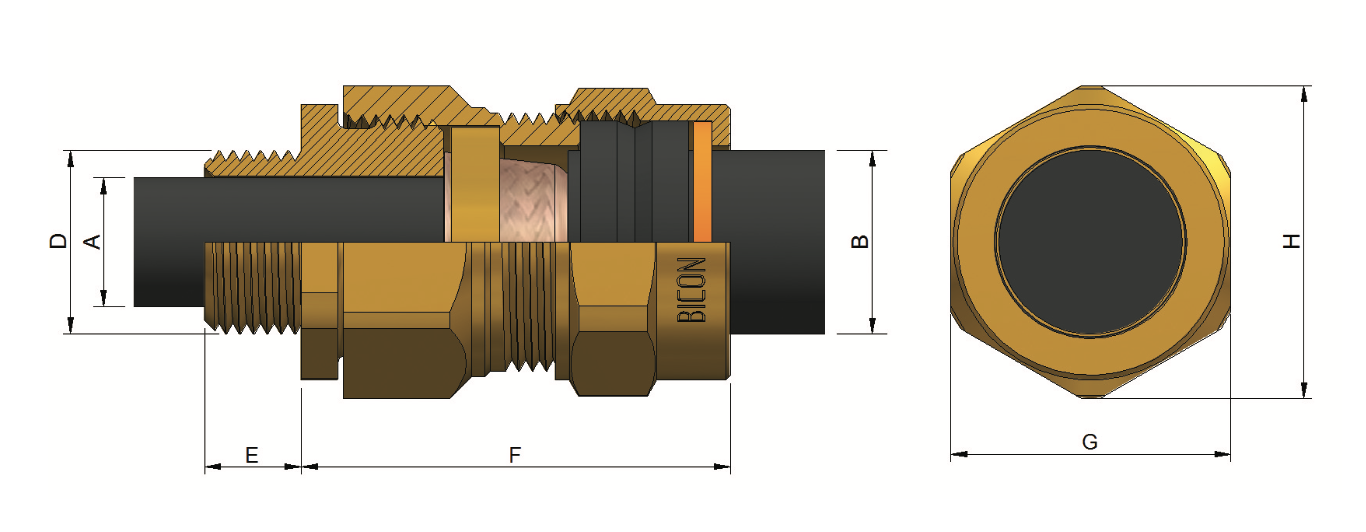

Prysmian BICON CX-B Cable Gland Kit – Long entry thread (KA414-B Series) is an industrial indoor / outdoor cable gland for wire braid armoured cables.
Part Numbers: KA414-B81, KA414-B91, KA414-B82, KA414-B83, KA414-B85, KA414-B86.
Prysmian KA414-B Features
Indoor & outdoor type for Wire Braid Armour cable.
15mm Entry threads to facilitate extra seals/ Lock washers.
Brass indoor & outdoor gland and accessories.
For Wire braid armour plastic or rubber sheathed cables.
Suitable for most climatic conditions, weatherproof and waterproof.
Three part amour lock with separate armour locking ring, ideal for checking electrical continuity.
Technical Data
Suitable for use with all Aluminium Wire Braid Armoured Cables.
CuZn39Pb3 brass alloy used for guaranteed strength and performance.
Complies with BS EN 50262 & BS 6121-1: 1989.
Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
Service temperature range -20°C to +90°C.
Kit Contents
CX Gland
Brass Earth Tag
Brass Locknut
PCP Shroud
For more information on Prysmian BICON CX-B Cable Gland Kit – Long entry thread (KA414-B Series), please consult the Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Design Reference | Size |
|---|---|
| Design ReferenceKA414-B81 | Size16 |
| Design ReferenceKA414-B91 | Size20SS |
| Design ReferenceKA414-B82 | Size20S |
| Design ReferenceKA414-B83 | Size20 |
| Design ReferenceKA414-B85 | Size25 |
| Design ReferenceKA414-B86 | Size32 |
