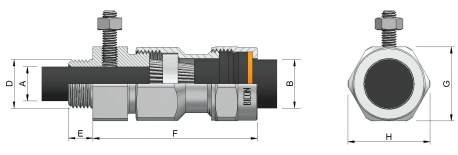

Prysmian BICON CW-AL Integral Earth Cable Gland Kit (454CE Series) is an Indoor/ Outdoor Integral Earth Cable Gland Kit for aluminium-wire armour plastic or rubber sheathed cables. Suitable for use with aluminium wire armoured cables with high fault current.
Part Numbers: 454CE52, 454CE53, 454CE55, 454CE56, 454CE57, 454CE59, 454CE61, 454CE63
Prysmian 454CE Features
Aluminium indoor & outdoor gland and accessories.
For galvanised-steel single-wire armour plastic or rubber sheathed cables.
Suitable for most climatic conditions, weatherproof and waterproof.
Three part amour lock with separate armour locking ring, ideal for checking electrical continuity.
No Risk of Bi-metallic corrosion when clamping Aluminium Armours.
Technical Data
Suitable for use with all Aluminium Wire Armoured Cables inc: BS 5467, BS 6622, BS 5308.
Constructed using 6082-T6 Aluminium alloy.
Complies with BS EN 50262 & BS 6121-1: 1989.
Integral earth connection complies with GDGC 190 Category A – (43kA for 1 second).
Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
Service temperature range -20°C to +90°C.
Integral Earth connection made using an M10 or M12 fixing.
Kit Contents
CW-A integral earth Gland
For more information on Prysmian BICON CW-AL Integral Earth Cable Gland Kit (454CE Series), please consult the Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Design Reference | Size |
|---|---|
| Design Reference454CE-52 | Size20S |
| Design Reference454CE-53 | Size20 |
| Design Reference454CE-55 | Size25 |
| Design Reference454CE-56 | Size32 |
| Design Reference454CE-57 | Size40 |
| Design Reference454CE-59 | Size50 |
| Design Reference454CE-61 | Size63 |
| Design Reference454CE-63 | Size75 |
