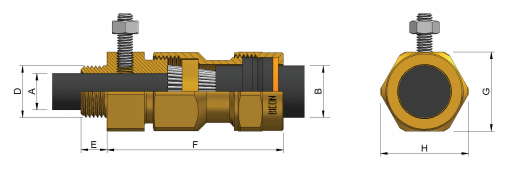

Prysmian BICON Prysmian BICON CW Integral Earth Cable Gland Kit (419CE Series) is an Indoor/ Outdoor Gland Kit for galvanised steel single-wire armour plastic or rubber sheathed cables. Suitable for use with all steel wire armoured cables with high fault current.
Part Numbers: 419CE52, 419CE53, 419CE55, 419CE56, 419CE57, 419CE59, 419CE61, 419CE63, 419CE64, 419CE65 419CE66, 419CE67
Prysmian 419CE Features
Indoor & outdoor type for SWA cable.
Brass indoor and outdoor gland with Earth bonding connection.
For galvanized-steel single-wire armour plastic or rubber sheathed cables.
Suitable for most climatic conditions, weatherproof and waterproof.
Three part amour lock with separate armour locking ring, ideal for checking electrical continuity.
Technical Data
Suitable for use with all Steel Wire Armoured Cables inc: BS 5467, BS 6622, BS 5308.
CuZn39Pb3 brass alloy used for guaranteed strength and performance.
Complies with BS EN 50262 & BS 6121-1: 1989.
Integral earth connection complies with GDGC 190 Category A – (43kA for 1 second).
Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
Service temperature range -20°C to +90°C.
Integral Earth connection made using an M10 or M12 fixing.
Kit Contents
CW Integral Earth Gland
For more information on Prysmian BICON CW Integral Earth Cable Gland Kit (419CE Series), please consult Datasheet below.
MGA Trading, Dammam, maintains a technical advisory service.
Contact us: +966 13 882 1111 / +966 13 831 1116
| Design Reference | Size |
|---|---|
| Design Reference419CE-52 | Size20S |
| Design Reference419CE-53 | Size20 |
| Design Reference419CE-55 | Size25 |
| Design Reference419CE-56 | Size32 |
| Design Reference419CE-57 | Size40 |
| Design Reference419CE-59 | Size50 |
| Design Reference419CE-61 | Size63 |
| Design Reference419CE-63 | Size75 |
| Design Reference419CE-64 | Size85 |
| Design Reference419CE-65 | Size90 |
| Design Reference419CE-66 | Size100 |
| Design Reference419CE-67 | Size110 |
