Nexans Euromold 400TE Separable Tee Connector with 400A Current Rating is a tee-connector designed for Interface B and covers voltages from 11/12kV to 33/36kV with a maximum conductor size of 240sqmm. The separable connector connects polymeric insulated cable to equipment (transformers, switchgear, motors, etc.) and meets the requirements of CENELEC HD 629,1.
Type 400TE Part Numbers: 400TE/G, K400TE/G, M400TE/G.
Euromold 400TE is a screened separable tee connector specified to terminate and connect medium/high voltage cables onto Interface B bushings in the following voltage classes:
6/10 (12kV)
6.35/11 (12kV)
8.7/15 (17.5kV)
12/20 (24kV)
12.7/22 (24kV)
18/30 (36kV)
19/33 (36kV)
Technical Characteristics
The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Specification & Design
Euromold
Type 400TE Voltage
Um Current
Ir Conductor Size
Min Conductor Size
Max
400TE/G 12 kV 400 Amps 70 240
K400TE/G 24 kV 400 Amps 25 240
Conductive EPDM insert
Conductive EPDM jacket
Insulating EPDM layer moulded between the insert and the jacket
Type B – 400 A interface as described by CENELEC EN 50180 and 50181
Conductor connector
Basic insulating plug (with VD point)
Cable reducer
Conductive rubber cap
Clamping pin contact
Bail restraint
The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations.

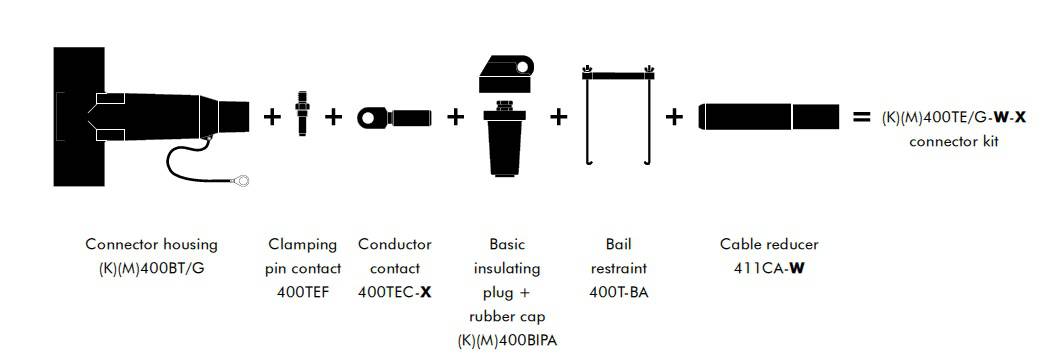

The complete (K)(M)400TE/G tee connector kit comprises the following components. The kit also comprises lubricant, wipers, installation instructions and crimp chart.
For Ordering Instructions and Part Number Selection Table of Nexans Euromold 400TE Separable Tee Connector (400TE/G, K400TE/G, M400TE/G), please refer to the Technical Data Table Below. For additional General and Technical Information, download the PDF files.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
| Euromold Type 400TE | Voltage Um |
|---|---|
| Euromold Type 400TE400TE/G | Voltage Um12 kV |
| Euromold Type 400TEK400TE/G | Voltage Um24 kV |
| Euromold Type 400TEM400TE/G | Voltage Um36 kV |
| ORDERING INSTRUCTIONS FOR (K)(M)400TE/G Select the part number which gives the best centring to the cable core insulation diameter and substitute X using table X, according to the conductor size and type. Add a 'K' for use up to 24 kV and add an 'M' for use up to 36 kV. Example: The copper wire screened cable is 24 kV, 240 mm2 stranded aluminium with a diameter over core insulation of 32.1 mm. Order 3 x K400TE/G-27-240(K) M-12-2 tee connector kit. | |
| PART NUMBER | DIAMETER OVER CORE INSULATION MIN |
| PART NUMBER400TE/G-11-X | DIAMETER OVER CORE INSULATION MIN12 mm |
| PART NUMBER400TE/G-15-X | DIAMETER OVER CORE INSULATION MIN16 mm |
| PART NUMBER400TE/G-19-X | DIAMETER OVER CORE INSULATION MIN20 mm |
| PART NUMBER400TE/G-22-X | DIAMETER OVER CORE INSULATION MIN23.5 mm |
| PART NUMBER400TE/G-25-X | DIAMETER OVER CORE INSULATION MIN26.5 mm |
| PART NUMBER400TE/G-27-X | DIAMETER OVER CORE INSULATION MIN28.5 mm |
| TABLE X - CONNECTORS SUITABLE FOR COPPER & ALUMINIUM CABLES | |
| CONDUCTOR SIZE | ALU CABLE DIN HEX CRIMP |
| CONDUCTOR SIZE25 mm2 | ALU CABLE DIN HEX CRIMP- |
| CONDUCTOR SIZE35 mm2 | ALU CABLE DIN HEX CRIMP35(K)M-12-2 |
| CONDUCTOR SIZE50 mm2 | ALU CABLE DIN HEX CRIMP50(K)M-12-2 |
| CONDUCTOR SIZE70 mm2 | ALU CABLE DIN HEX CRIMP70(K)M-12-2 |
| CONDUCTOR SIZE95 mm2 | ALU CABLE DIN HEX CRIMP95(K)M-12-2 |
| CONDUCTOR SIZE120 mm2 | ALU CABLE DIN HEX CRIMP120(K)M-12-2 |
| CONDUCTOR SIZE150 mm2 | ALU CABLE DIN HEX CRIMP150(K)M-12-2 |
| CONDUCTOR SIZE185 mm2 | ALU CABLE DIN HEX CRIMP185(K)M-12-2 |
| CONDUCTOR SIZE240 mm2 | ALU CABLE DIN HEX CRIMP240(K)M-12-2 |
