Home>Cable Accessories>Separable Connectors>Nexans Euromold Separable Connectors
Nexans Euromold Interface D Accessories suitable for use with connectors and bushings with an interface D as described by CENELEC EN 50180 and 50181.
Part Numbers: 606DR-TPS, 606SOP, 606GP, 675BE, 676BIPA, 680CP, 676RTPA, KIT MT.
6/10 (12kV)
6.35/11 (12kV)
8.7/15 (17.5kV)
12/20 (24kV)
12.7/22 (24kV)
Technical Characteristics
The manufacturer tests all Euromold Interface D Accessories, except the earthing plug, for AC withstand and partial discharge before they leave the factory.
606DR-TPS Dead-end Receptacle fits over a bushing with a type D interface to provide ‘dead-end’ facility. Contains a capacitive test point for checking circuit conditions.
Order 606DR-TPS for 12 kV, K606DR-TPS for 24 kV or M400DR-B/G for 36 kV applications. Add “/G” suffix if you want your receptacle to be supplied with an earth lead (e.g. 606DR-TPS/G or K606DR-TPS/G).

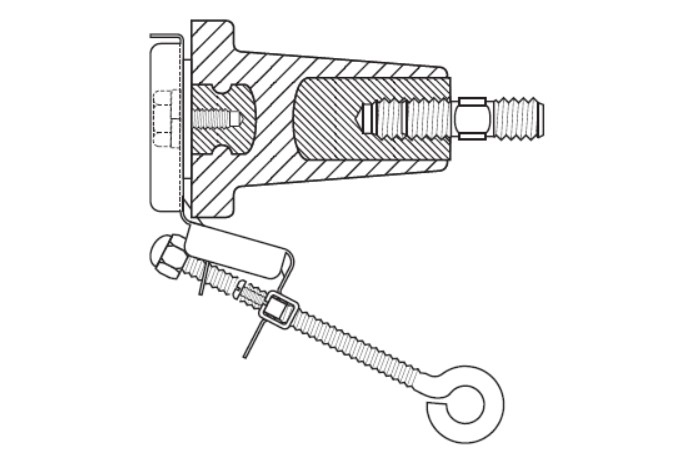

606SOP Stand-off Plug is designed to support and ‘deadend’ connectors with a type D interface when removed from equipment.
Order 606SOP for 12 kV or K606SOP for 24 kV applications.

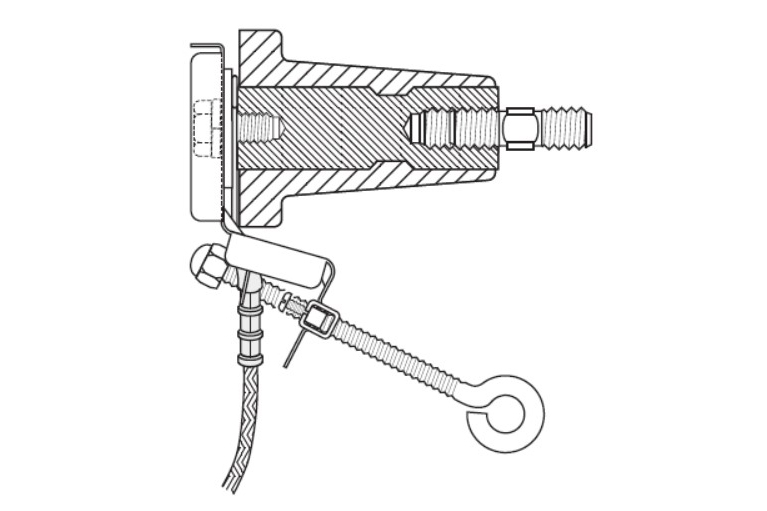

606GP Earthing Plug is designed to support and earth connectors with a type D interface when removed from equipment.
Order 606GP for 12 kV or 24 kV applications.

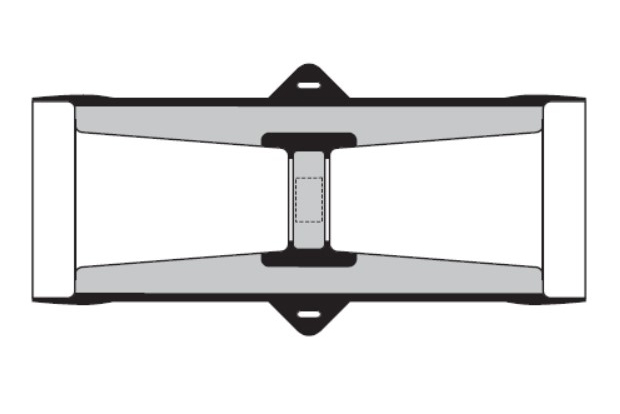

675BE Bushing Extender provides an extension piece to allow cables to stand away from equipment. Is used in conjunction with the 680CP connecting plug.
Order 675BE for 12 kV or K675BE for 24 kV applications.

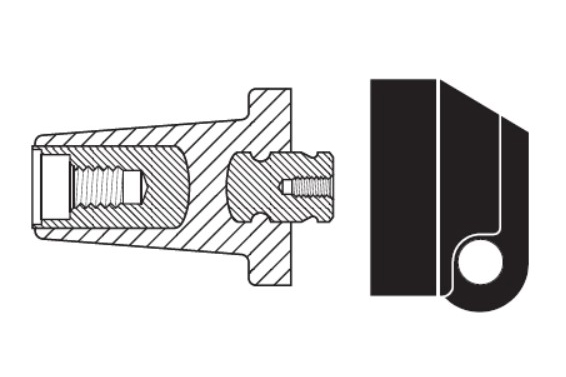

676BIPA Basic Insulating Pad acts as a tightening nut for the 676LRA/G tee connector kits. The plug contains a voltage detection point. The conductive rubber protection cap is included.
Order 676BIPA for 12 kV or K676BIPA for 24 kV applications.
680CP Connecting Plug is designed for connecting two or more connectors with a type D interface together, thus creating a separable cable joint or a multiple cable connection to equipment.
Order 680CP for 12 kV or K680CP for 24 kV applications. Add “/ATEX” as a suffix for use in potentially explosive atmospheres, for max 12kV applications (e.g. 680CP/ATEX).
676RTPA Reducing Tap Plug provides a type A interface to connectors with a type D interface. You use a ‘C’ spanner, 600SW, to tighten the reducing tap plug onto its mating part.
Order 676RTPA for 12 kV or K676RTPA for 24 kV applications. Order 600SW for the ‘C’ spanner.

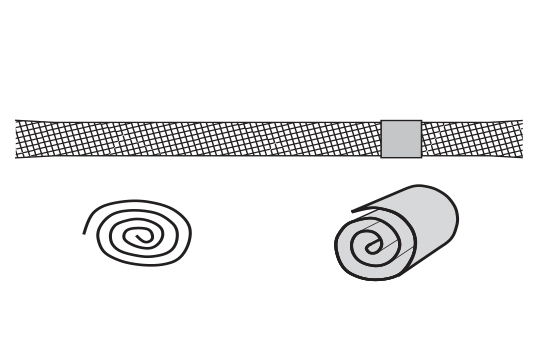

MT Earthing Kit for Cu Tape Screened Cables contains a tinned copper braid (25 mm² – L=500 mm), a tinned copper wire for cleating and some water sealing mastic.
Order Kit MT for 12 kV, 24 kV or 36 kV applications.
For additional General and Technical Information, download the PDF files.
